1334 - Simplicity Pacer Series 34" Walk-Behind Mower Engine Group - PTO (7104epg) Parts Diagram

Pacer Series 34" Walk-Behind Mower

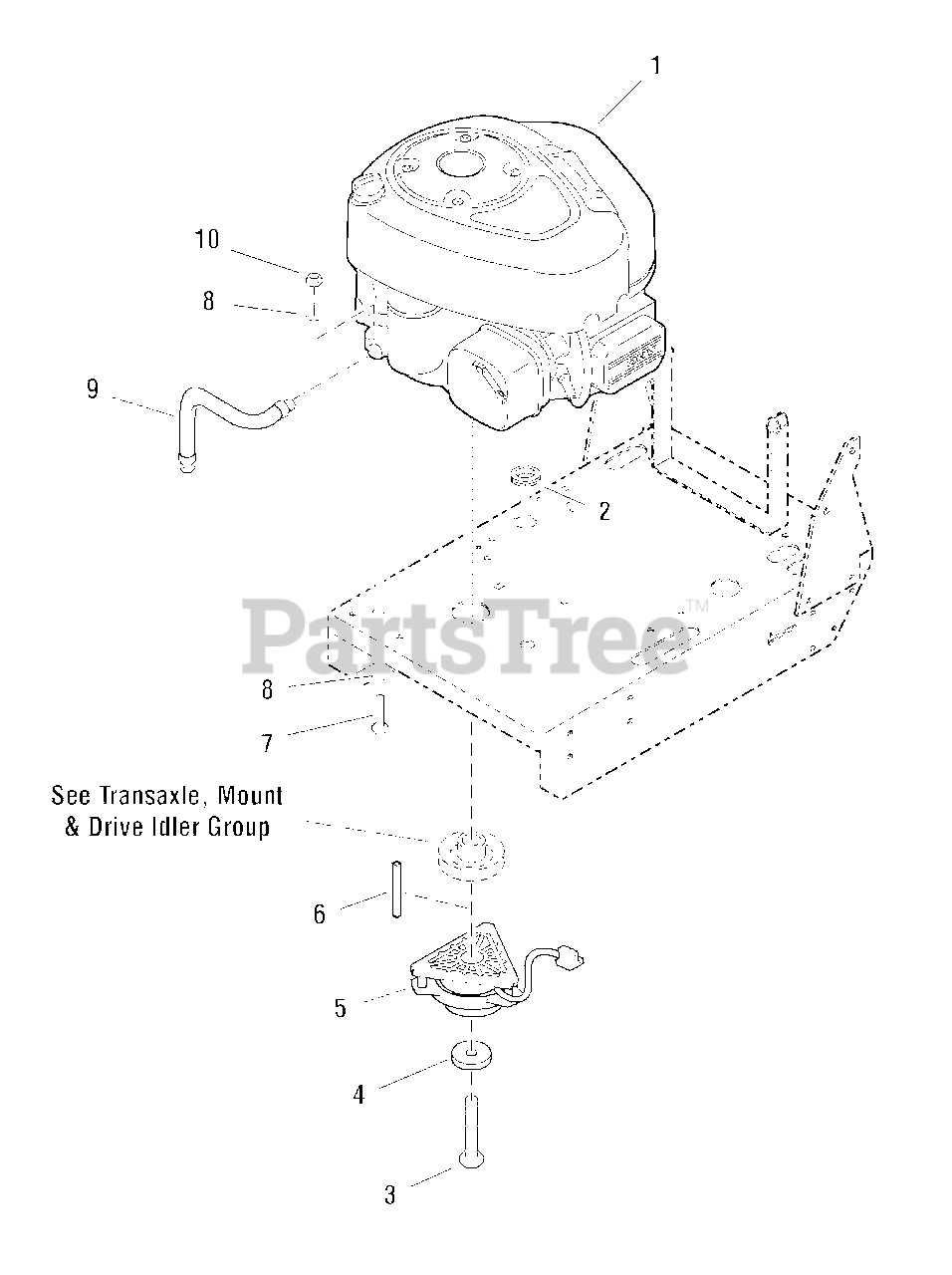

Engine Group - PTO (7104epg) Parts Diagram

  • Title

1

Simplicity 5022960

ENGINE, 13HP Briggs & Stratton, Model 28

$

$

Not available

-

Simplicity 5021178X3SM

FUEL FILTER

$9.49

$

Usually ships in 2-12 days

0

-

OIL FILTER (492932)

$

$

Not available

-

FOAM PRE-CLEANER (697015)

$

$

Not available

-

AIR FILTER (697634)

$

$

Not available

-

SPARK PLUG (691043)

$

$

Not available

-

MUFFLER (697349)

$

$

Not available

-

EXHAUST MANIFOLD (496750)

$

$

Not available

-

EXHAUST DEFLECTOR (396903)

$

$

Not available

-

EXHAUST MANIFOLD GASKET (692236)

$

$

Not available

2

Simplicity 5021379SM

GROMMET

$6.99

$

Usually ships in 2-12 days

0

3

Simplicity 5047632SM

CRANKSHAFT BOLT, 7/16 x 2-3/4

$5.99

$

Usually ships in 2-12 days

0

4

Simplicity 5042132SM

CLUTCH RETAINER
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

5

Simplicity 1686880SM

ELECTRIC CLUTCH
(Superseded to 1687746YP)

$376.99

$

Usually ships in 2-12 days

0

6

Simplicity 5050407X3SM

KEY, 1/4 Sq. x 2
(Superseded to 5050407X16SM)

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025011X20SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

8

Simplicity 703302

WASHER, 5/16

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 5048681SM

OIL DRAIN HOSE

$18.99

$

In Stock, only 1 left!

0

10

Simplicity 5025057SM

NUT, Hex Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0
