133432-0038-03 - Briggs & Stratton Horizontal Engine Carburetor Group, Kits/Gasket Sets-Carburetor Parts Diagram

Horizontal Engine

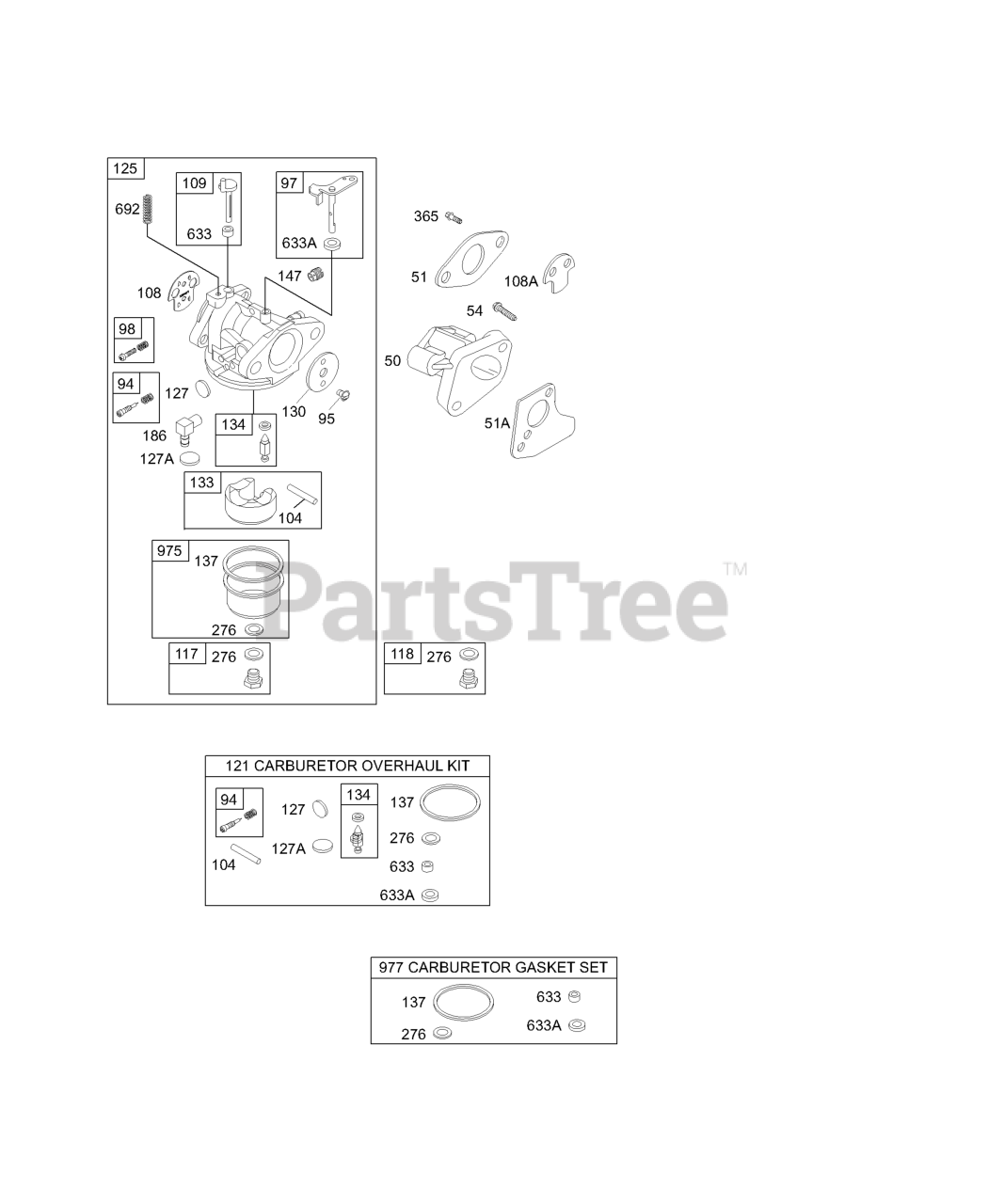

Carburetor Group, Kits/Gasket Sets-Carburetor Parts Diagram

  • Title

50

Briggs & Stratton 691922

Manifold-Intake

$

$

Not available

51

Briggs & Stratton 692283

Gasket-Intake

$4.49

$

In Stock, only 1 left!

0

51A

Briggs & Stratton 273113S

Gasket-Intake

$4.49

$

In Stock, Qty 12

0

54

Briggs & Stratton 691689

Screw

Note: (Intake Manifold)

$4.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 493765

Kit-Idle Mixture

$14.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 493556

Shaft-Throttle

$16.99

$

In Stock, only 1 left!

0

98

Briggs & Stratton 398185

Kit-Idle Speed

Note: (Carburetor Mounted)

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 691242

Pin-Float Hinge
(Superseded to 797622)

$3.99

$

In Stock, only 4 left!

0

108A

Briggs & Stratton 224783

Valve-Choke

$1.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 495651

Shaft-Choke

$15.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 497434

Jet-Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 495981

Jet-Main
(Superseded to 690048)

Note: (High Altitude)

$13.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 498260

Kit-Carburetor Overhaul

$16.99

$

In Stock, Qty 20+

0

125

Briggs & Stratton 495652

Carburetor

Note: (ASSEMBLY NO LONGER AVAILABLE) (Repair With Individual Components)

$

$

Not available

127

Briggs & Stratton 691739

Plug-Welch

Note: (5/16" Diameter)

$4.49

$

In Stock, only 3 left!

0

127A

Briggs & Stratton 694468

Plug-Welch

Note: (3/8" Diameter)

$4.49

$

In Stock, Qty 7

0

130

Briggs & Stratton 691181

Valve-Throttle

$7.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 10

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

147

Briggs & Stratton 692886

Jet-Pilot

$8.49

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 692317

Connector-Hose

$6.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

$6.49

$

In Stock, Qty 20+

0

365

Briggs & Stratton 691688

Screw

Note: (Carburetor)

$4.49

$

In Stock, Qty 5

0

633

Briggs & Stratton 693867

Seal-Choke/Throttle Shaft

$4.99

$

In Stock, only 3 left!

0

633A

Briggs & Stratton 691321

Seal-Choke/Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

$5.49

$

In Stock, only 1 left!

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$6.49

$

In Stock, Qty 18

0

977

Briggs & Stratton 498261

Gasket Set-Carburetor
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0
