133432-0038-03 - Briggs & Stratton Horizontal Engine Gear Reducer, Oil Group Parts Diagram

Horizontal Engine

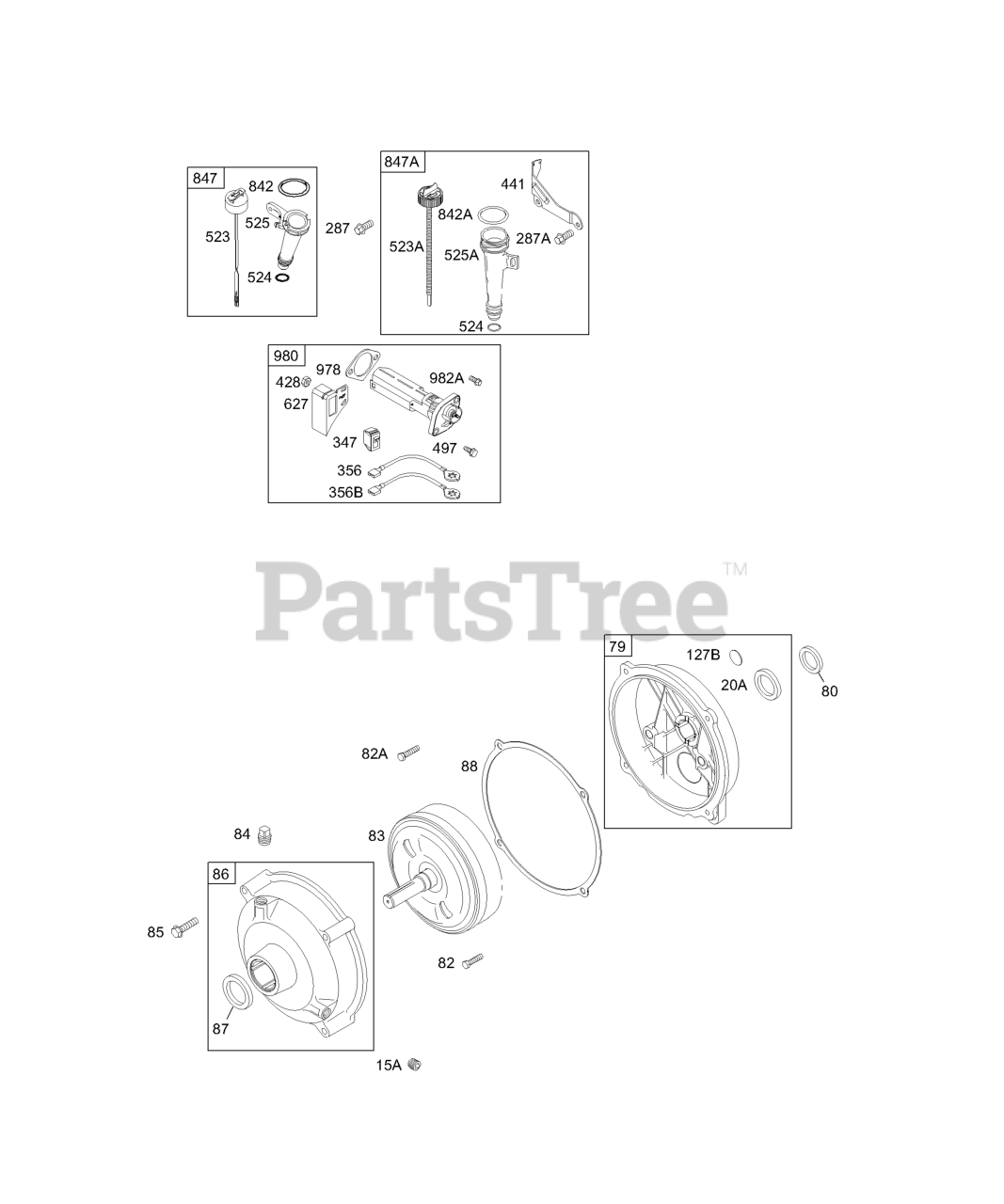

Gear Reducer, Oil Group Parts Diagram

  • Title

15A

Briggs & Stratton 691682

Plug-Oil Drain

Note: (Hex Socket)(1/4" Diameter)

$4.99

$

In Stock, only 2 left!

0

20A

Briggs & Stratton 299819S

SEAL, Oil

Note: (PTO Side)

$5.49

$

In Stock, Qty 20+

0

79

Briggs & Stratton 690605

Case-Gear Reduction

$123.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 691602

Gasket-Gear Case

$5.49

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 690369

Screw

Note: (Gear Reduction Case)

$5.49

$

Usually ships in 2-12 days

0

82A

Briggs & Stratton 691122

Screw
(Superseded to 699164)

Note: (Gear Reduction Case)

$3.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 690374

Shaft-Auxiliary Drive

$220.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 691121

Plug-Breather

$5.49

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 691117

Screw

Note: (Gear Cover)

$4.49

$

In Stock, only 1 left!

0

86

Briggs & Stratton 690608

Cover-Gear

$66.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 691582

Seal-Gear Reduction

$11.99

$

In Stock, only 4 left!

0

88

Briggs & Stratton 691600

Gasket-Gear Cover/Housing

$10.99

$

In Stock, only 3 left!

0

127B

Briggs & Stratton 691585

Plug-Welch

Note: (7/8" Diameter)

$6.49

$

In Stock, Qty 6

0

287

Briggs & Stratton 94807

Screw

Note: (Dipstick Tube) Used After Code Date 99031400

$1.49

$

Usually ships in 2-12 days

0

287A

Briggs & Stratton 691693

SCREW

Note: (Dipstick Tube) Used Before Code Date 99031500

$3.49

$

In Stock, only 2 left!

0

347

Briggs & Stratton 495098S

Switch-Rocker

$22.99

$

In Stock, only 2 left!

0

356

Briggs & Stratton 690817

Wire-Stop

Note: (1 Wire, 6-1/4" Long)(Push-On Insulated Female Blade Terminal, AndInternal Tooth Lockwasher Ring Terminal)

$9.99

$

Usually ships in 2-12 days

0

356B

Briggs & Stratton 692363

Wire-Stop

Note: (1 Wire, 9-1/2" Long)(Push-On Insulated Female Blade Terminal, AndInsulated Support Internal Tooth Lockwasher Ring Terminal)

$10.99

$

Usually ships in 2-12 days

0

428

Briggs & Stratton 691612

NUT

Note: (Oil GARD Kit)

$3.49

$

In Stock, only 1 left!

0

441

Briggs & Stratton 690448

Bracket-Oil Fill

$32.99

$

Usually ships in 2-12 days

0

497

Briggs & Stratton 690661

SCREW

Note: (Stopswitch Bracket)

$3.49

$

In Stock, Qty 9

0

523

Briggs & Stratton 495264

Dipstick
(Superseded to 499621)

Note: Used After Code Date 99031400

$15.99

$

In Stock, Qty 10

0

523A

Briggs & Stratton 691388

Dipstick

Note: Used Before Code Date 99031500

$13.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 691876

Seal-O Ring

$4.99

$

In Stock, Qty 8

0

525

Briggs & Stratton 694531

Tube-Dipstick

Note: Used Before Code Date 99031500

$10.99

$

Usually ships in 2-12 days

0

525

Briggs & Stratton 694379

Tube-Dipstick

Note: Used After Code Date 99031400

$20.99

$

Usually ships in 2-12 days

0

627

Briggs & Stratton 690474

Bracket-Stopswitch

$10.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube) Used After Code Date 99031400

$4.99

$

In Stock, Qty 20+

0

842A

Briggs & Stratton 691870

Seal-O Ring

Note: (Dipstick Tube) Used Before Code Date 99031500

$4.49

$

In Stock, Qty 19

0

847

Briggs & Stratton 694381

Dipstick/Tube Assembly

Note: Used After Code Date 99031400

$22.99

$

Usually ships in 2-12 days

0

847A

Briggs & Stratton 691379

Dipstick/Tube Assembly

Note: Used Before Code Date 99031500

$50.99

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 273326S

Gasket-Oil Gard

$6.99

$

In Stock, only 1 left!

0

980

Briggs & Stratton 496605

Kit-Oil Gard

$42.99

$

Usually ships in 2-12 days

0

982A

Briggs & Stratton 690350

Screw

Note: (Oil GARD) (Oil GARD Kit)

$3.49

$

Usually ships in 2-12 days

0
