1336 - MTD Pro Walk-Behind Mower Kohler Engine Ignition & Electrical Parts Diagram

Pro Walk-Behind Mower

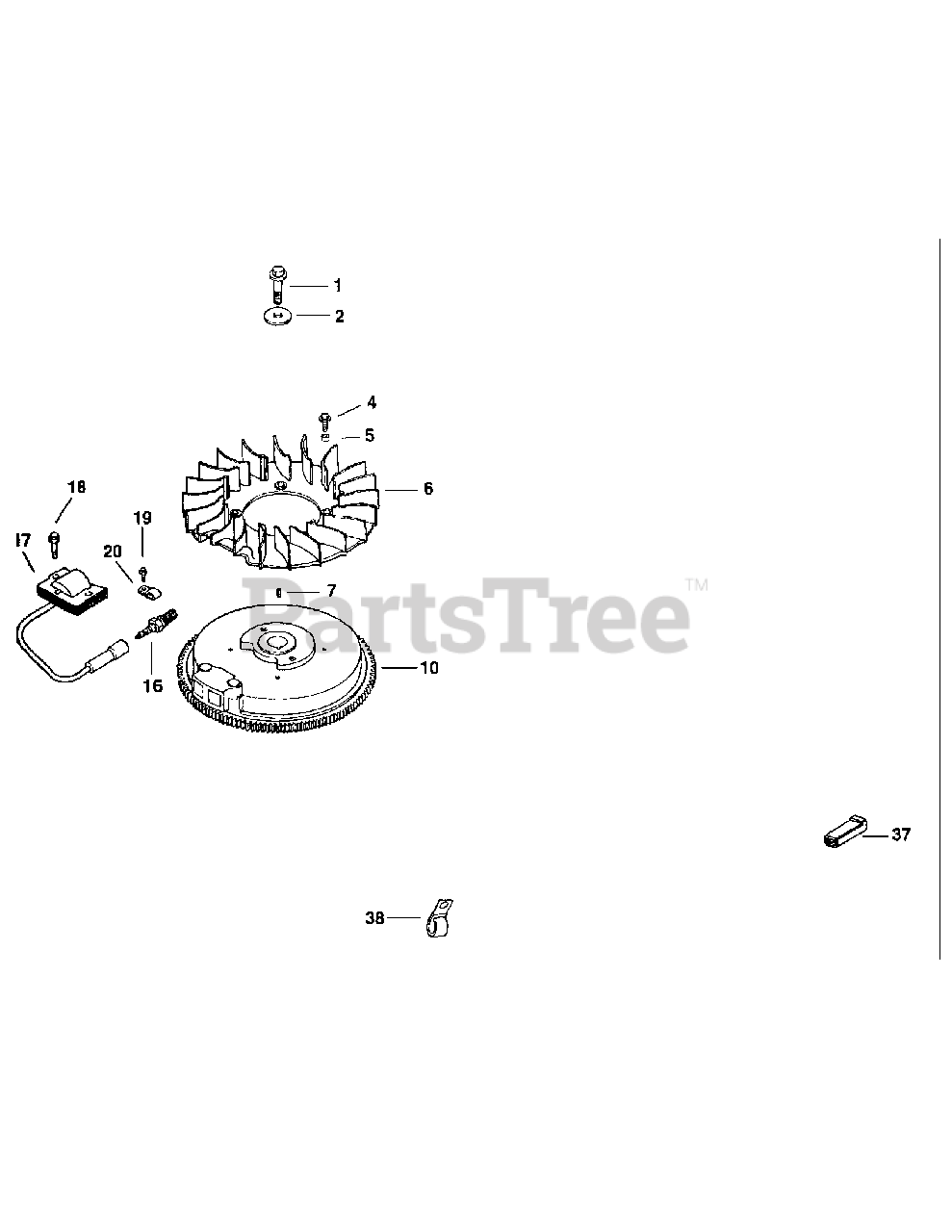

Kohler Engine Ignition & Electrical Parts Diagram

  • Title

1

MTD KH-25-086-361-S

Screw, Hex Flange

$3.49

$

In Stock, only 1 left!

0

2

MTD KH-12-468-03

Washer, Plain 3/8"

$

$

Not available

4

MTD KH-M-639016-S

Screw, Hex Flange

$2.49

$

In Stock, only 3 left!

0

5

MTD KH-25-086-47

Spacer, Fan

$

$

Not available

6

MTD KH-12-157-03-S

Fan, Flywheel

$

$

Not available

7

MTD KH-X-42-15

Key

$

$

Not available

10

MTD KH-12-025-29-S

Flywheel

Note: NLA

$

$

Not available

13

MTD KH-M-0545010

Screw, Hex Flange

$

$

Not available

16

MTD 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

17

MTD KH-12-584-05

Module, Ignition

$

$

Not available

18

MTD KH-M-0545020

Screw, Hex Flange

$

$

Not available

19

MTD KH-M-0545010

Screw, Hex Flange

$

$

Not available

20

MTD KH-X-728-1

Clip, Kill Lead

$

$

Not available

22

MTD KH-12-109-03

Cup And Screen

Note: NLA

$

$

Not available

37

MTD KH-277563

Connector

Note: NLA

$

$

Not available

38

MTD KH-47-154-01-S

Clip

$4.99

$

In Stock, Qty 7

0
