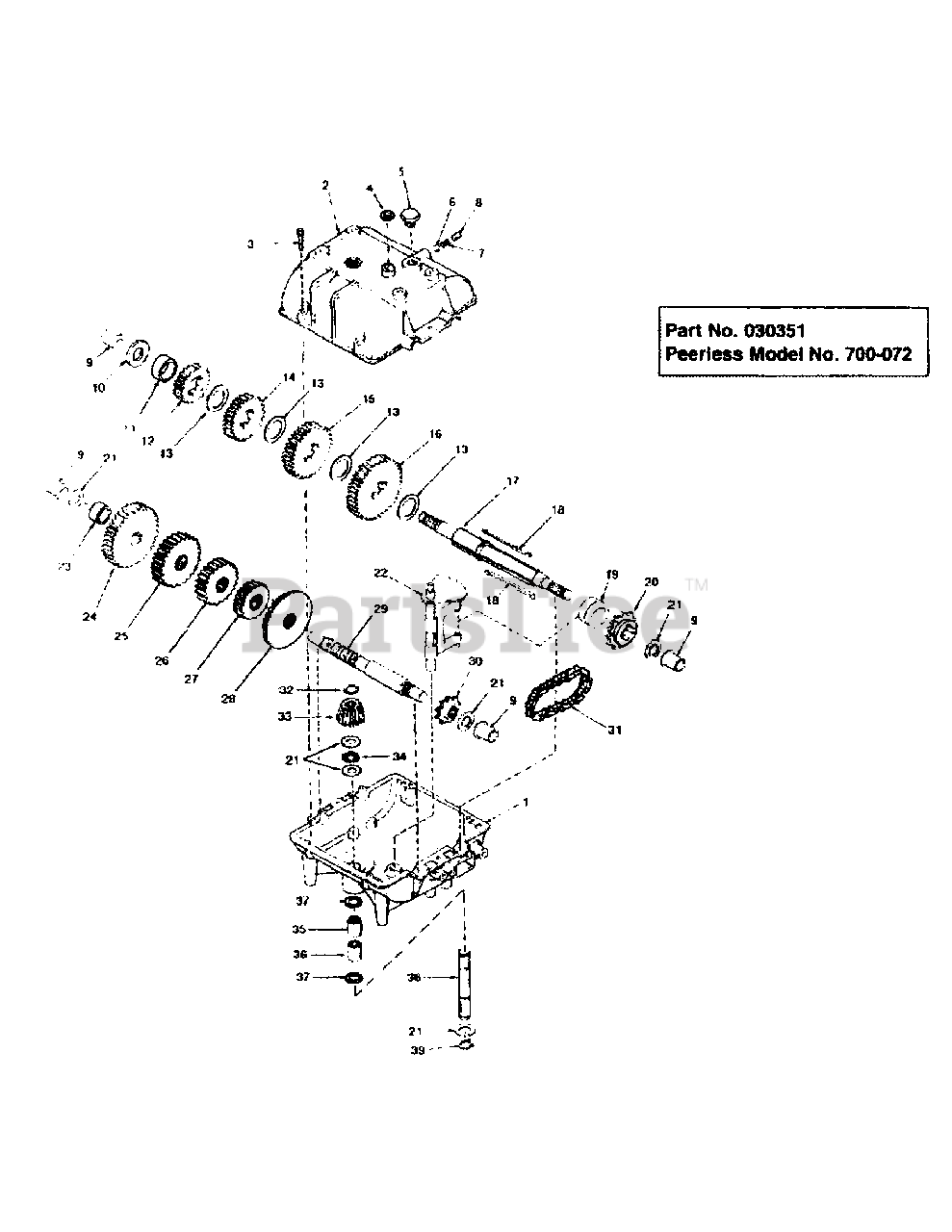

1336 - MTD Pro Walk-Behind Mower Transmission Parts Diagram

Pro Walk-Behind Mower

Transmission Parts Diagram

  • Title

1

MTD TC-770061A

Transmission case
(Superseded to TC-799045)

$113.99

$

Usually ships in 3-12 days

0

2

MTD TC-772083A

Transmission cover

$69.99

$

In Stock, only 4 left!

0

3

MTD TC-792073A

Cap screw

$1.99

$

In Stock, only 2 left!

0

4

MTD TC-788069

Seal, square cut

$4.49

$

In Stock, only 1 left!

0

5

MTD TC-792074

Threaded plug

Note: NLA

$22.99

$

Usually ships in 3-12 days

0

6

MTD TC-792077A

Steel ball, 5/16" dia

$4.49

$

In Stock, Qty 6

0

7

MTD TC-792079

Spring

$4.49

$

In Stock, only 2 left!

0

8

MTD TC-792078

Set screw

$4.49

$

In Stock, only 1 left!

0

9

MTD TC-780105A

Flange bushing

$8.49

$

In Stock, Qty 11

0

10

MTD TC-780139

Thrust washer

$4.49

$

In Stock, Qty 9

0

11

MTD TC-786072

Spacer

$4.49

$

In Stock, only 1 left!

0

12

MTD TC-778124A

Spur gear (30 teeth)

$34.99

$

In Stock, only 3 left!

0

13

MTD TC-780108

Thrust washer

$4.49

$

In Stock, Qty 9

0

14

MTD TC-778239A

Spur gear (32 teeth)

$93.99

$

In Stock, only 2 left!

0

15

MTD TC-778125

Spur gear (35 teeth)

$41.99

$

Usually ships in 3-12 days

0

16

MTD TC-778207A

Spur gear (37 teeth)

$63.99

$

In Stock, only 2 left!

0

17

MTD TC-776402

Shaft-output/brake

$127.99

$

In Stock, Qty 5

0

18

MTD TC-792089B

Key, shift

$35.99

$

In Stock, Qty 5

0

19

MTD TC-784266

Shift collar

$11.99

$

Usually ships in 3-12 days

0

20

MTD TC-786083

Sprocket (18 teeth)

$20.99

$

In Stock, only 1 left!

0

21

MTD TC-780072

Thrust washer

$4.49

$

In Stock, Qty 20+

0

22

MTD TC-784376

Rod & fork, shift

$62.99

$

Usually ships in 3-12 days

0

23

MTD TC-786071

Spacer

$4.49

$

In Stock, only 2 left!

0

24

MTD TC-778126A

Spur gear (20 teeth)

$48.99

$

Usually ships in 3-12 days

0

25

MTD TC-778240

Spur gear (18 teeth)

$106.99

$

Usually ships in 3-12 days

0

26

MTD TC-778151

Spur gear (15 teeth)

Note: NLA

$14.99

$

Usually ships in 3-12 days

0

27

MTD TC-778145

Spur gear (12 teeth)

$18.99

$

Usually ships in 3-12 days

0

28

MTD TC-778154

Spur gear (42 teeth)

$125.99

$

In Stock, only 1 left!

0

29

MTD TC-776134

Counter shaft

$98.99

$

In Stock, only 1 left!

0

30

MTD TC-786082

Sprocket (9 teeth)

$15.99

$

Usually ships in 3-12 days

0

31

MTD TC-786081

Roller chain (#41, 24 links)

$22.99

$

Usually ships in 3-12 days

0

32

MTD TC-788040

Retaining ring

$4.49

$

In Stock, Qty 5

0

33

MTD TC-778176

Bevel pinion, input

$38.99

$

In Stock, only 2 left!

0

34

MTD TC-780071

Thrust bearing

$10.99

$

In Stock, Qty 8

0

35

MTD TC-780142

Needle bearing
(Superseded to TC-780086)

$12.99

$

In Stock, Qty 20+

0

36

MTD TC-780086A

Needle bearing
(Superseded to TC-780086)

$12.99

$

In Stock, Qty 20+

0

37

MTD TC-792001

O-ring

$4.49

$

In Stock, Qty 11

0

38

MTD TC-776135

Input shaft

$39.99

$

In Stock, Qty 6

0

39

MTD TC-792035

Retaining ring

$4.49

$

In Stock, Qty 14

0

MTD TC-788067C

Bentonite grease (12 oz)

Note: (not shown)

$

$

Not available
