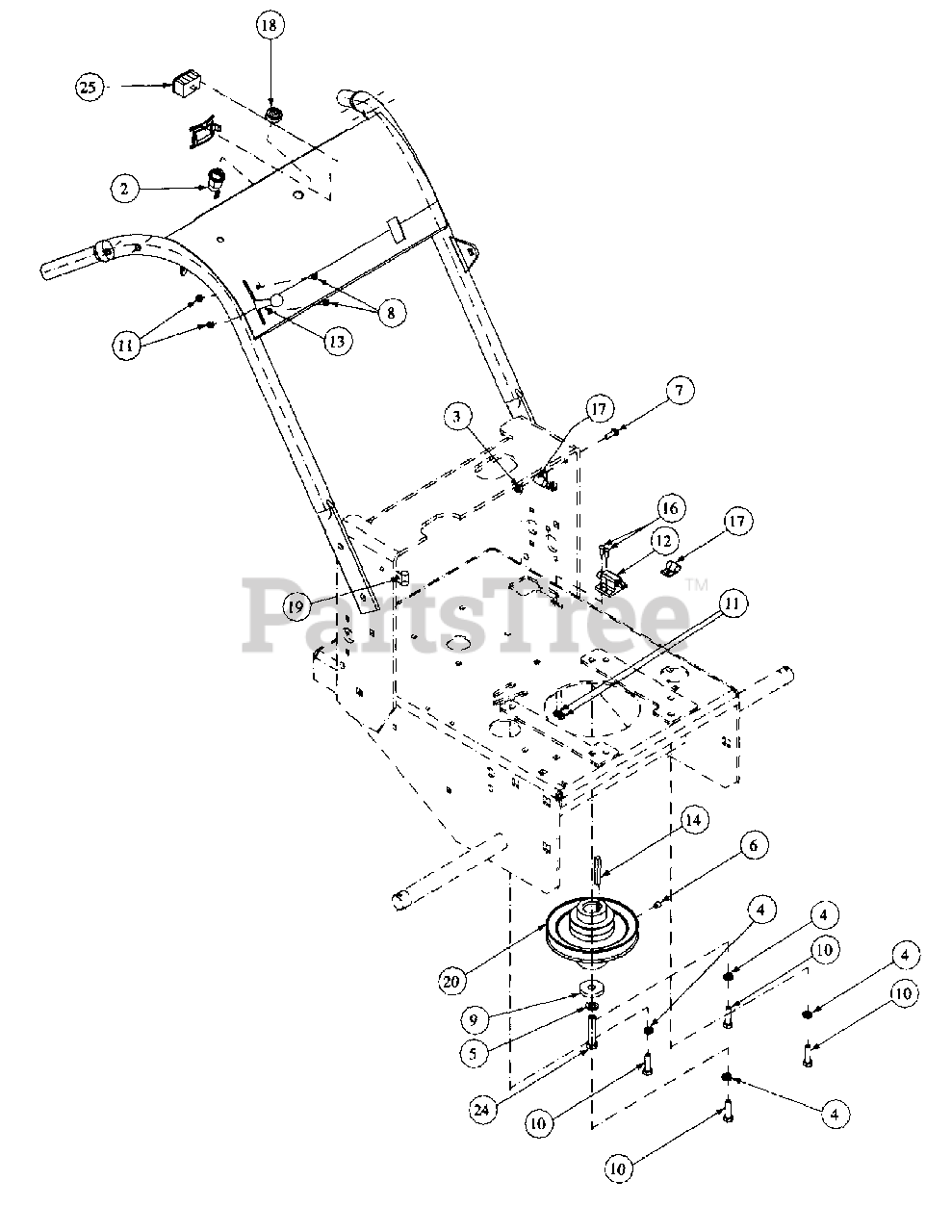

1336G - MTD Pro Walk-Behind Mower (2000) Engine Assembly Parts Diagram

Pro Walk-Behind Mower

Engine Assembly Parts Diagram

  • Title

2

MTD 00010943P

Single Ignition ON/OFF Switch

$

$

Not available

3

MTD 00012152

Lock Nut, Nylon Insert, 1/4-20

$3.99

$

In Stock, only 1 left!

0

4

MTD 00012168

Lock Washer, 5/16

$

$

Not available

5

MTD 00012195

Lock Washer, 7/16 Zinc

$

$

Not available

6

MTD 00012492

Nylock Screw, 5/16-18 x 3/8

$

$

Not available

7

MTD 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

8

MTD 00013669

Screw, Hex Washer, 10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

9

MTD 00013675

Clutch Washer

$8.49

$

Usually ships in 3-6 days

0

10

MTD 00014542

Cap Screw, 1.25 x 30

Note: NLA

$

$

Not available

11

MTD 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$2.99

$

In Stock, only 3 left!

0

12

MTD 00018324

Delta Switch

$

$

Not available

13

MTD 00019550P

Control Throttle w/Detent, 39.2

$

$

Not available

14

MTD 00021517

Key Stick, 1/4 x 1/4 x 2

$8.49

$

In Stock, only 1 left!

0

?15

MTD 00021521

Harness Wire

$

$

Not available

16

MTD 00030906

Machine Screw, 10-32 x 5/8

$6.49

$

Usually ships in 3-6 days

0

17

MTD 00031081

Support Clamp Tubing, 1/2"

$5.99

$

Usually ships in 3-6 days

0

18

MTD 00032097

Nut, w/Cap, 5/8-32, Ignition
(Superseded to 00032097P)

$

$

Not available

19

MTD 00060807

Support Clamp, 3/8 OD

$

$

Not available

20

MTD 01000164

Double Pulley Gear

$

$

Not available

21

MTD 01000194

Belt
(Superseded to 01000194P)

$54.99

$

In Stock, only 1 left!

0

22

MTD 01000992P

13HP Kohler Engine,

$

$

Not available

23

MTD n/a

Engine Oil, 10W-40

$

$

Currently unavailable

24

MTD 01001082

Capscrew, 7/16-20 x 2"

$6.49

$

Usually ships in 3-6 days

0

25

MTD 01001722P

Hour Meter

$

$

Not available

26

MTD 01001811

Harness Hourmeter
(Superseded to 929-04195)

$7.99

$

Usually ships in 3-6 days

0

27

MTD 01002229P

Harness Assembly, Kohler Adapter

$

$

Not available

MTD KH-12-883-05-S1

Air Filter
(Superseded to 1288305S1C)

Note: (not shown)

$34.99

$

In Stock, only 4 left!

0

MTD KH-12-050-01-S

Oil Filter

Note: (not shown)

$13.99

$

In Stock, Qty 20+

0
