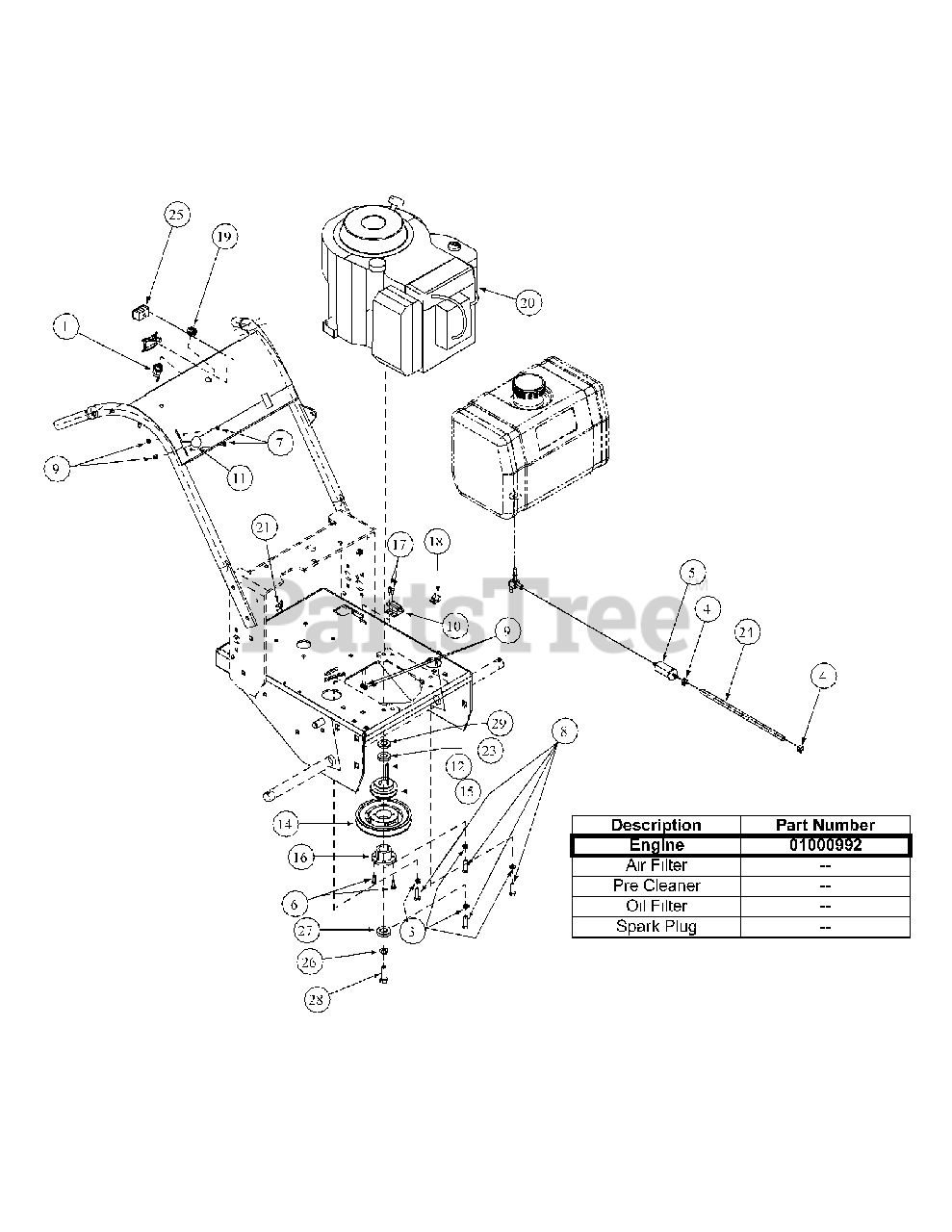

1336G - MTD Pro Walk-Behind Mower (2001) Kohler Engine Assembly Parts Diagram

Pro Walk-Behind Mower

Kohler Engine Assembly Parts Diagram

  • Title

1

MTD 00010943P

Single Ignition ON/OFF Switch

$

$

Not available

2

MTD 01001811

Harness Hour Meter
(Superseded to 929-04195)

$8.99

$

Usually ships in 3-6 days

0

3

MTD 00012168

Lock Washer, 5/16

$

$

Not available

4

MTD 00012235

Clamp
(Superseded to 726-04123A)

$4.49

$

In Stock, Qty 6

0

5

MTD 00012292

Kohler Fuel Filter
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

6

MTD 01002229P

Harness Adapter,

$

$

Not available

7

MTD 00013669

Screw, Hex Washer, 10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

8

MTD 00014542

Cap Screw, 1.25 x 30

Note: NLA

$

$

Not available

9

MTD 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 2 left!

0

10

MTD 00018324

Delta Switch

$

$

Not available

11

MTD 00019550P

Control Throttle w/Detent, 39.2

$

$

Not available

12

MTD 00014599

Key Stick, 1/4 x 1/4 x 2-1/4

$

$

Not available

13

MTD 00021521

Harness Wire

$

$

Not available

14

MTD 00021970

Deck Pulley

$112.99

$

Usually ships in 3-6 days

0

15

MTD 00021972

Traction Pulley

$

$

Not available

16

MTD 00021973

Bushing

$

$

Not available

17

MTD 00030906

Machine Screw, 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

18

MTD 00031081

Support Clamp Tubing, 1/2"

$6.49

$

Usually ships in 3-6 days

0

19

MTD 00032097

Nut w/cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

20

MTD 01000992P

13HP Kohler Engine

$

$

Not available

21

MTD 00060807

Support Clamp, 3/8 OD

$

$

Not available

22

MTD 01000194

Belt
(Superseded to 01000194P)

$57.99

$

In Stock, only 4 left!

0

23

MTD 00072586

Flat Washer
(Superseded to 736-0250)

$4.99

$

In Stock, Qty 20+

0

25

MTD 925-04893

Hour Meter
(Superseded to 925-04893A)

$175.99

$

Usually ships in 3-6 days

0

26

MTD 00012195

Lock Washer, 7/16

$

$

Not available

27

MTD 00013675

Clutch Washer

$9.49

$

Usually ships in 3-6 days

0

28

MTD 01002884

Hex Cap Screw, 7/16-20 x 1.25 Lg

$

$

Not available

29

MTD 00073094

Spacer, Engine Pulley

$15.99

$

Usually ships in 3-6 days

0

MTD 01000992P

Engine

Note: (not shown)

$

$

Not available
