13387E (1694859) - Snapper 38" Snow Thrower, 13hp (2006) Auger Housing and Chute Group - 38 inch Parts Diagram

38" Snow Thrower, 13hp

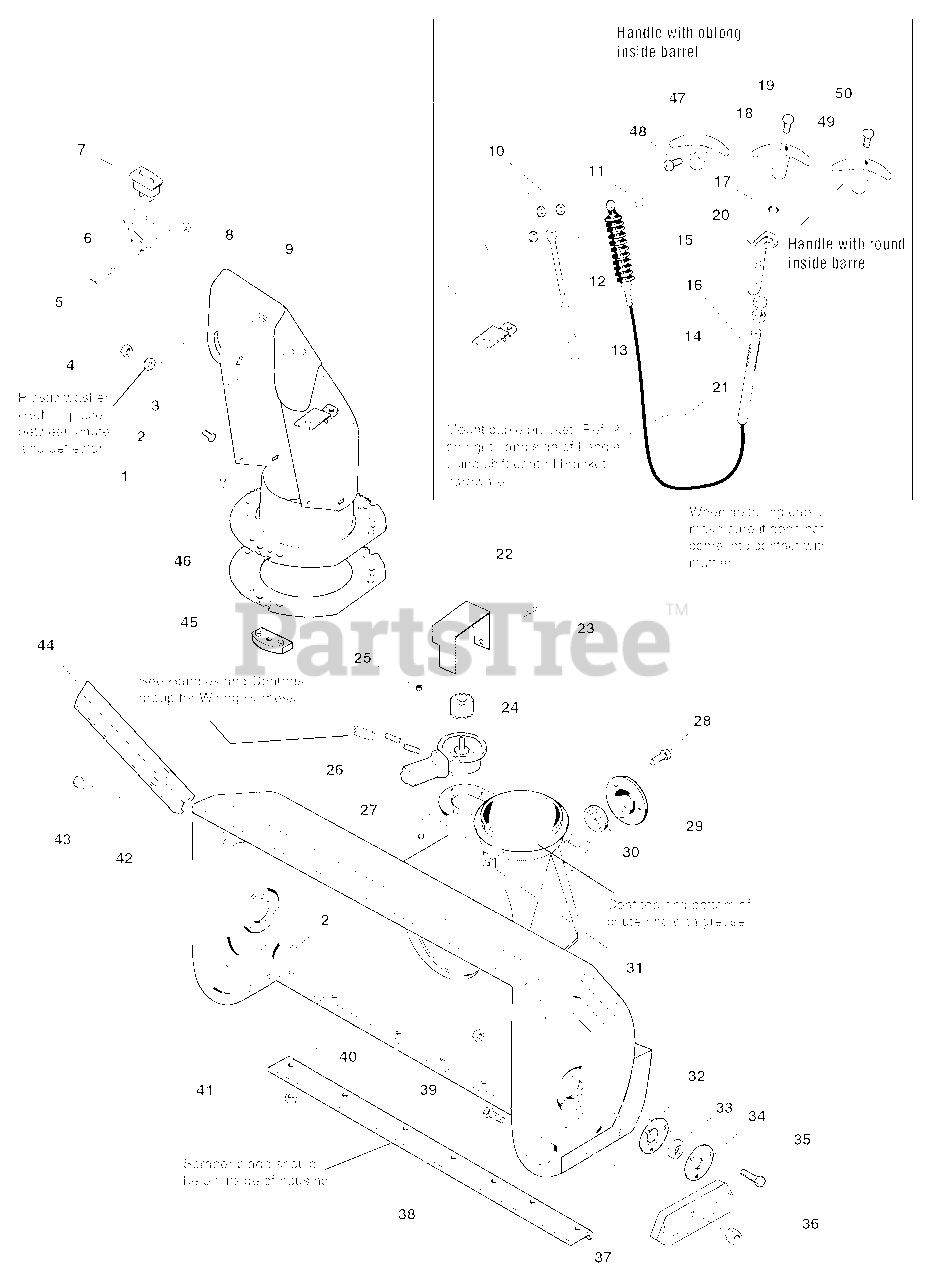

Auger Housing and Chute Group - 38 inch Parts Diagram

  • Title

1

Snapper 1960001

SCREW, Hex Washer Head Pastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

2

Snapper 1931333

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

3

Snapper 2860210

WASHER, Special, 97/250ID x 1-3/25OD x 3/100 Thick
(Superseded to 2860210SM)

$4.49

$

In Stock, Qty 5

0

4

Snapper 1960686

NUT, Hex Flange ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

5

Snapper 1923341

SCREW, Hex Whiz Lock, 1/4-20 x 3/4
(Superseded to 1923341SM)

$4.49

$

In Stock, Qty 8

0

6

Snapper 1729792A

BRACKET, Mounting Switch
(Superseded to 1729792ASM)

$14.99

$

Usually ships in 2-12 days

0

7

Snapper 1728969

SWITCH, Rocker Chute
(Superseded to 1728969SM)

$54.99

$

In Stock, only 4 left!

0

8

Snapper 1933896

NUT, Hex Nylon 10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

9

Snapper 1731498A

CHUTE AND DEFLECTOR ASSEMBLY

$

$

Currently unavailable

10

Snapper 1702219

SPACER, Heat Treated
(Superseded to 1702219SM)

$8.49

$

Usually ships in 2-12 days

0

11

Snapper 1960126

NUT, Push Pal, 1/4" Diameter Stud Capped
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

12

Snapper 1611945

ROD, 5/16" Diameter, Spring Guide
(Superseded to 1611945SM)

$13.99

$

In Stock, only 1 left!

0

13

Snapper 1611939

SPRING, Complete
(Superseded to 1611939SM)

$10.99

$

In Stock, only 1 left!

0

14

Snapper 1720446

CABLE AND KNOB ASSEMBLY, Chute (Includes Ref. No. 18, 19, 20, 21 & 22)
(Superseded to 1720446SM)

$179.99

$

In Stock, Qty 6

0

15

Snapper 1611989

BOOT, Bellows
(Superseded to 1700048SM)

$33.99

$

Usually ships in 2-12 days

0

16

Snapper 1719140

COLLET
(Superseded to 1718771SM)

$186.99

$

In Stock, only 1 left!

0

17

Snapper 1719139

SEAL, Rod

$

$

Not available

18

Snapper 1719138

KNOB
(Superseded to 1719138SM)

Note: (Handle with oblong inside barrel)

$20.99

$

Usually ships in 2-12 days

0

19

Snapper 1960600

SCREW, 8-32
(Superseded to 1960600SM)

$4.99

$

Usually ships in 2-12 days

0

20

Snapper 1726411A

SUPPORT, Cable
(Superseded to 1726411ASM)

$

$

Not available

21

Snapper 2825094

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

22

Snapper 1729645A

COVER, Pinion, 18GA
(Superseded to 1729645ASM)

$17.99

$

Usually ships in 2-12 days

0

23

Snapper 1925003

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

24

Snapper 1728967

PINION, 1-3/20 LG
(Superseded to 1728967SM)

$17.99

$

In Stock, Qty 11

0

25

Snapper 1960745

NUT, Hex KEPS, #10-24
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

26

Snapper 1728965

MOTOR, Electric
(Superseded to 1728965SM)

$176.99

$

In Stock, Qty 6

0

27

Snapper 2860604

CAPSCREW, Hex Washer, #10 x 1-1/4
(Superseded to 2860604SM)

$4.49

$

In Stock, Qty 5

0

28

Snapper 1960738

CAPSCREW, Hex Head Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 20+

0

29

Snapper 1665982A

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, only 4 left!

0

30

Snapper 1729578

BEARING, Ball
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

31

Snapper 1930659

NUT, Retainer Speed, 5/16-18
(Superseded to 1930659SM)

$5.99

$

Usually ships in 2-12 days

0

32

Snapper 2172279A

FLANGE, Bearing, w/Fitting
(Superseded to 2172279ASM)

$14.99

$

Usually ships in 2-12 days

0

33

Snapper 2173934

BEARING, Cartridge
(Superseded to 1733105SM)

$57.99

$

In Stock, only 2 left!

0

34

Snapper 2172278A

FLANGE, Bearing, 3/8" Deep
(Superseded to 2172278ASM)

$11.99

$

In Stock, only 2 left!

0

35

Snapper 1925205

CAPSCREW, Hex head, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

36

Snapper 1960687

NUT, Hex Flange, 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

37

Snapper 1725747A

SKID SHOE
(Superseded to 1725747BMYP)

$92.99

$

In Stock, Qty 5

0

38

Snapper 1723921A

BLADE, Scraper, 35-3/4 for 38"
(Superseded to 1723921BMYP)

$65.99

$

Usually ships in 2-12 days

0

39

Snapper 1960702

BOLT, Carriage, 3/8-16 X 1
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

40

Snapper 1931277

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

41

Snapper 1935043

NUT, Flange Lock, 5/16-18

$

$

Currently unavailable

42

Snapper 1729734D

HOUSING AND IMPELLER ASSEMBLY, 38"

$

$

Currently unavailable

43

Snapper 1664847

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 G5
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

44

Snapper 1729642D

CUTTER, Drift, Red
(Superseded to 1733102ASM)

$31.99

$

In Stock, only 4 left!

0

45

Snapper 1666613

HOLD DOWN, Chute
(Superseded to 1666613SM)

$3.49

$

Usually ships in 2-12 days

0

46

Snapper 1717477A

GEAR, Chute
(Superseded to 1717477ASM)

$50.99

$

Usually ships in 2-12 days

0

47

Snapper 1715799

HANDLE "T"
(Superseded to 1715799SM)

$

$

Not available

48

Snapper 1930547

SCREW, Set, Hex #10-24 x 3/8
(Superseded to 1930547SM)

$4.49

$

Usually ships in 2-12 days

0

49

Snapper 1706201

HANDLE "T"
(Superseded to 1706201SM)

Note: (Handle with round inside barrel)

$

$

Not available

50

Snapper 1960399

SCREW, Round Head
(Superseded to 1960399SM)

$3.49

$

Usually ships in 2-12 days

0
