133B560B000 - MTD Lawn Tractor (1993) Seat/Muffler/Frame/Fuel Tank Parts Diagram

Lawn Tractor

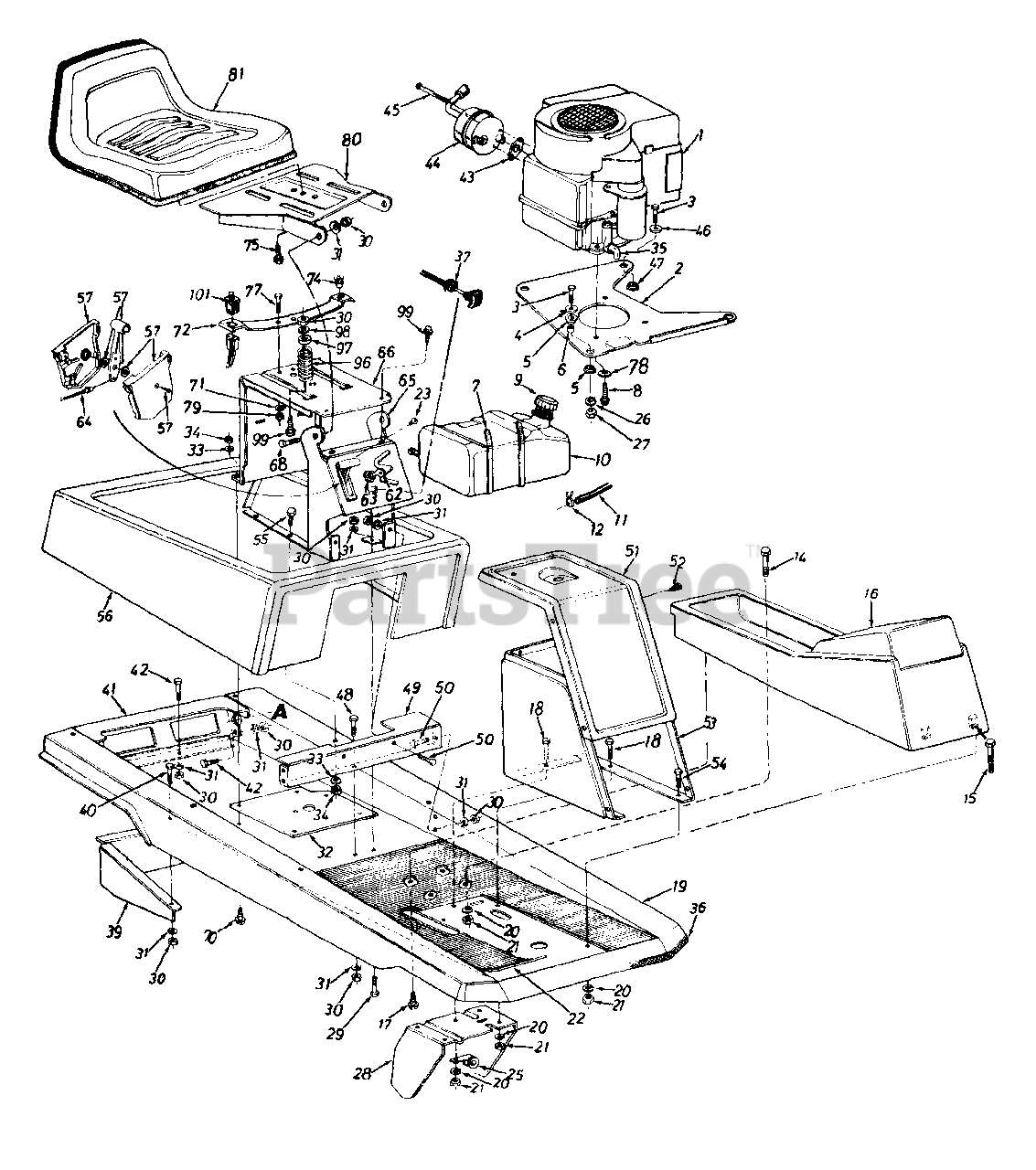

Seat/Muffler/Frame/Fuel Tank Parts Diagram

  • Title
1

Part#

Engine
Usually ships same day

Not available

$

$

2

MTD Part# 15572A

Engine Mounting Plate

Variations

MTD Part# 15572A-0637

PLATE-ENGINE MTG - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

3

MTD Part# 710-0158

Hex Bolt 5/16-24 x 1.25" Lg.
(Superseded to 710-0672)
Usually ships in 1 day

$

$3.08

0

4

MTD Part# 736-0231

Fl-Wash. .330" I.D. x 1.125" O.D.
(Superseded to 936-0231)
Usually ships in 5 to 10 days

$

$3.23

0

5

MTD Part# 722-0153

Engine Mounting Grommet
(Superseded to 922-0153)
Usually ships in 5 to 10 days

$

$2.39

0

6

MTD Part# 750-0539

Spacer .315" I.D. x .50" O.D. x .520" Lg.
(Superseded to 950-0539)
Usually ships in 1 day

$

$7.74

0

7

MTD Part# 726-0209

Cable Tie 30.6 Lg.
(Superseded to 726-0230)
Usually ships in 1 day

$

$19.19

0

8

MTD Part# 710-0502A

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.
Usually ships in 1 day

$

$4.58

0

9

MTD Part# 751-3071

Gas Cap
(Superseded to 751-0603A)
Usually ships same day

Not available

$

$

10

MTD Part# 751-0368A

Fuel Tank
(Superseded to 751-0368C)
Usually ships same day

Not available

$

$

11

MTD Part# 751-0535-26

Fuel Line - 26" Lg.
(Superseded to 751-10349-28)
Usually ships in 1 day

$

$29.53

0

12

MTD Part# 726-0205

Hose Clamp - 1/2" O.D. Tube
Usually ships in 1 day

$

$2.95

0

14

MTD Part# 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)
Usually ships in 1 day

$

$3.92

0

15

MTD Part# 710-0116

Hex Bolt 5/16-18 x 2" Lg.
(Superseded to 710-3103)
Usually ships in 1 day

$

$3.19

0

16

MTD Part# 731-0712A

Front Console
Usually ships same day

Not available

$

$

17

MTD Part# 710-0906

Plastite Scr. 5/16 x 1.25" Lg.
(Superseded to 710-0323)
Usually ships in 1 day

$

$3.23

0

18

MTD Part# 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

19

MTD Part# 17672A

Main Frame
Usually ships same day

Currently unavailable

$

$

20

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

21

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

22
Usually ships same day

Not available

$

$

23

MTD Part# 710-0779A

Truss Mach. AB-Tap Scr .#10 x .50" Lg.
Usually ships in 1 day

$

$3.08

0

Usually ships same day

Not available

$

$

26

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

27

MTD Part# 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)
Usually ships in 1 day

$

$4.76

0

28

MTD Part# 17677

Clutch-Brake Pedal Ass'y.
Usually ships same day

Not available

$

$

29

MTD Part# 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

30

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

31

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

32

MTD Part# 783-0005

Variable Speed Mounting Plate

Variations

MTD Part# 783-0005-0637

No Longer Available PLATE-V/S - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

33

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

34

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

35

MTD Part# 737-0125

90§ Elbow Male To Female
Usually ships in 5 to 10 days

$

$13.27

0

36

MTD Part# 731-0511-57

Trim Strip

Note: 39" Req'd

Usually ships in 5 to 10 days

$

$55.87

0

37

MTD Part# 746-0614A

Choke Control
Usually ships in 1 day

$

$18.20

0

39

MTD Part# 15552

Transaxle Support Ass'y.

Variations

MTD Part# 15552-0637

No Longer Available SUPPORT AS - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

40

MTD Part# 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

41

MTD Part# 15571

Rear Frame Panel

Variations

MTD Part# 15571-0498

No Longer Available PANEL-FRAM - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 15571-0629

No Longer Available PANEL-FRAM - SILVER FLAKE (0629)
Usually ships same day

Not available

$

$

MTD Part# 15571-0637

No Longer Available - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 15571-0638

No Longer Available PANEL-FRAM - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

42

MTD Part# 710-0621

Hex Bolt 5/16-18 x .50" Lg.
(Superseded to 710-3039)
Usually ships same day

Not available

$

$

43

MTD Part# 721-0207

Exhaust Gasket (8 H.P.)
(Superseded to BS-692237)
Usually ships in 1 day

$

$3.75

0

MTD Part# 721-0208

Exhaust Gasket(10, 11 & 12 H.P.)
(Superseded to BS-692236)
Usually ships in 1 day

$

$3.80

0

44

MTD Part# 751-0412

Muffler Ass'y. (8 H.P.)
Usually ships same day

Not available

$

$

MTD Part# 751-0425

Spark Arrester For 8 H.P. Muffler

Note: (Optional)

Usually ships same day

Not available

$

$

MTD Part# 751-0413

Muffler Ass'y. (10, 11 L 12 H.P.)
Usually ships same day

Not available

$

$

MTD Part# 751-0426

Spark Arrester For 10, 11 & 12 H.P. Muffler
(Superseded to 951-0544)

Note: (Optional)

Usually ships in 5 to 10 days

$

$56.84

0

45

MTD Part# 738-0635

Shld. Bolt (8 H.P.)
(Superseded to 938-0635)
Usually ships same day

Not available

$

$

MTD Part# 738-0636

Shld. Bolt (10, 11 & 12 H.P)
(Superseded to 938-0636)
Usually ships in 1 day

$

$7.68

0

46

MTD Part# 736-0343

Fl-Wash. .330" I.D. x 1.25" O.D.
Usually ships in 1 day

$

$3.11

0

47

MTD Part# 736-0392

Flange Wash. .320" I.D. x .750" O.D.
Usually ships same day

Not available

$

$

48

Part#

UNKNOWN
Usually ships same day

Not available

$

$

49

MTD Part# 15604

Seat Support & Frame Brkt.
Usually ships same day

Not available

$

$

50

MTD Part# 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

51

MTD Part# 15554

Steering Housing Cover

Variations

MTD Part# 15554-0483

No Longer Available COVER-STEE - CHARCOAL GRAY (0483)
Usually ships same day

Not available

$

$

MTD Part# 15554-0629

No Longer Available COVER-STEE - SILVER FLAKE (0629)
Usually ships same day

Not available

$

$

MTD Part# 15554-0637

No Longer Available COVER-STEE - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 15554-0638

No Longer Available COVER-STEE - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

52

MTD Part# 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg
Usually ships in 1 day

$

$3.11

0

53

MTD Part# 16403

Steering Shaft Housing

Variations

MTD Part# 16403-0629

No Longer Available - SILVER FLAKE (0629)
Usually ships same day

Not available

$

$

MTD Part# 16403-0637

No Longer Available HOUSING-ST - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

54

MTD Part# 710-0376

Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)
Usually ships in 1 day

$

$2.91

0

55

MTD Part# 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)
Usually ships in 1 day

$

$2.53

0

56

MTD Part# 683-0044

Engine Cover Ass'y.

Note: New Part

Variations

MTD Part# 683-0044-0483

No Longer Available COVER ASM - CHARCOAL GRAY (0483)
Usually ships same day

Not available

$

$

MTD Part# 683-0044-0629

No Longer Available COVER ASM - SILVER FLAKE (0629)
Usually ships same day

Not available

$

$

MTD Part# 683-0044-0638

No Longer Available COVER ASM - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

MTD Part# 683-0044-0650

No Longer Available COVER ASM - RED METALLIC (0650)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

57

MTD Part# 831-0823A

Throttle Control Box Ass'y
Usually ships in 1 day

$

$24.29

0

62

MTD Part# 725-0201

Ignition Key
(Superseded to 925-0201)
Usually ships in 1 day

$

$6.91

0

63

MTD Part# 725-0267

Ignition Switch
(Superseded to 925-0267B)
Usually ships in 1 day

$

$26.44

0

64

MTD Part# 746-0503

Throttle Control Wire 35" Lg.
(Superseded to 946-0503)
Usually ships same day

Not available

$

$

65

MTD Part# 16483A

Front Seat Bracket

Variations

MTD Part# 16483A-0637

No Longer Available BRACKET-SE - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

66

MTD Part# 15606A

Rear Seat Bracket

Variations

MTD Part# 15606A-0637

Rear Seat Bracket - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

68

MTD Part# 738-0296

Shld. Bolt .437" Dia. x .268" Lg.
(Superseded to 938-0296)
Usually ships same day

Not available

$

$

70

MTD Part# 710-0855

Hex Tap Scr. 1/4-20 X 1.0" Lg.
(Superseded to 710-0788)
Usually ships in 1 day

$

$4.97

0

71

MTD Part# 736-0119

L-Wash. 5/16" I.D."
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

72

MTD Part# 732-0632

Seat Spring
Usually ships same day

Not available

$

$

74
Usually ships same day

Not available

$

$

75

MTD Part# 710-0623

Hex Wash. Hd. Tap Scr. 3/8-16 x 3/4" Lg.
Usually ships in 1 day

$

$3.12

0

77

MTD Part# 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

78

MTD Part# 736-0242

Bell-Wash. .345" I.D. x .88" O.D.
Usually ships in 1 day

$

$3.00

0

79

MTD Part# 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)
Usually ships in 1 day

$

$2.27

0

80

MTD Part# 15607D

Seat Pivot Bracket
(Superseded to 783-0039A)
Usually ships same day

Not available

$

$

81

MTD Part# 757-0345

Seat Ass'y. Comp.
(Superseded to 957-0378)
Usually ships same day

Not available

$

$

96

MTD Part# 732-0633

Compression Spring 2.7" Lg.
(Superseded to 932-0633)
Usually ships same day

Not available

$

$

97
Usually ships same day

Not available

$

$

98

MTD Part# 736-0159

Fl-Wash. .344" I.D. x .875"
(Superseded to 936-0159)
Usually ships same day

Not available

$

$

99

MTD Part# 710-0376

Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)
Usually ships in 1 day

$

$2.91

0

101

MTD Part# 725-1441

Seat Switch
Usually ships same day

Not available

$

$

Part#

Color Code
Usually ships same day

Not available

$

$

MTD Part# 436

Radiant Yellow
Usually ships same day

Currently unavailable

$

$

MTD Part# 460

Green Flake
Usually ships same day

Currently unavailable

$

$

MTD Part# 483

Charcoal Gray
Usually ships same day

Not available

$

$

MTD Part# 498

Yellow
Usually ships same day

Currently unavailable

$

$

Usually ships same day

Currently unavailable

$

$

MTD Part# 629

Silver Flake
Usually ships same day

Currently unavailable

$

$

Usually ships same day

Currently unavailable

$

$

Usually ships same day

Currently unavailable

$

$

Usually ships same day

Currently unavailable

$

$

MTD Part# 646

CM Blue
Usually ships same day

Currently unavailable

$

$

MTD Part# 650

Red Metallic
Usually ships same day

Currently unavailable

$

$

Usually ships same day

Currently unavailable

$

$

MTD Part# 663

Dark Teal
Usually ships same day

Currently unavailable

$

$
