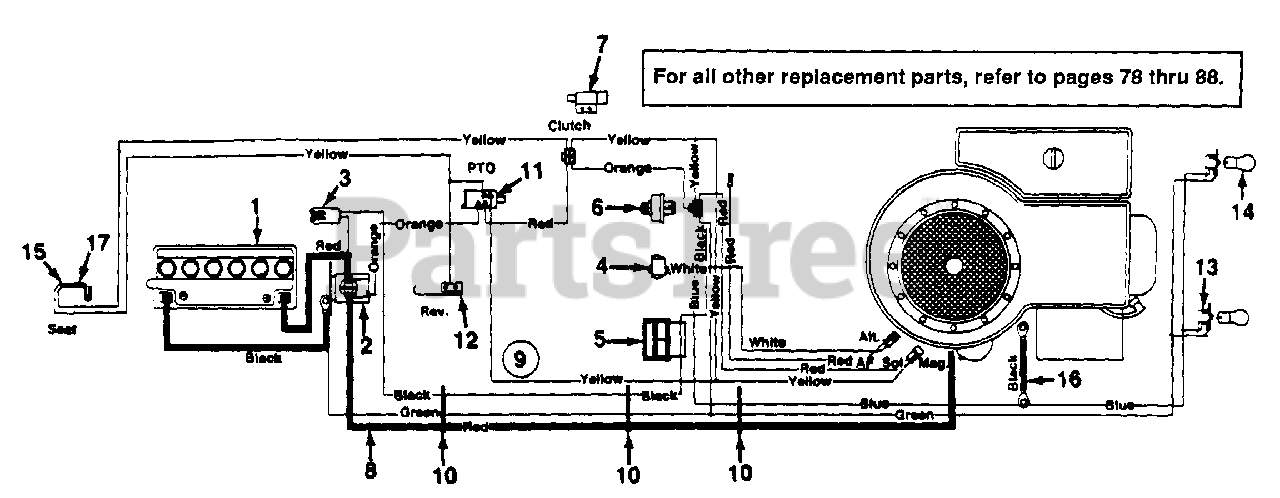

133L679G192 - MTD Lawn Tractor (1993) (Wheatbelt) Electrical/Switches Parts Diagram

Lawn Tractor

Electrical/Switches Parts Diagram

  • Title

1

MTD 725-1635

Battery
(Superseded to 753-0608)

$

$

Not available

2

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$28.99

$

In Stock, Qty 20+

0

3

MTD 725-1625

Fuse 7.5 Amps

$8.99

$

Usually ships in 3-6 days

0

4

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$18.99

$

In Stock, only 2 left!

0

5

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$

$

Not available

6

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$37.99

$

In Stock, Qty 10

0

7

MTD 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$25.99

$

In Stock, Qty 14

0

8

MTD 725-1081

Electric Wire 30" Lg.
(Superseded to 629-0740)

$20.99

$

Usually ships in 3-6 days

0

9

MTD 629-0115

Wire Harness w/Ammeter

$

$

Not available

MTD 629-0105

Wire Harness w/o Ammeter

$

$

Not available

10

MTD 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

11

MTD 725-0803C

Safety Switch (Deck)
(Superseded to 725-0803B)

$36.99

$

In Stock, Qty 7

0

12

MTD 725-1643

Safety Switch (Reverse)

$10.99

$

Usually ships in 3-6 days

0

13

MTD 725-1649

Socket
(Superseded to 925-1649A)

Note: (Used on Styles 0,1,6,7)

$12.99

$

In Stock, Qty 20+

0

MTD 725-1650

Socket
(Superseded to 925-1650)

Note: (Used on Styles 2,3,4, 589)

$

$

Not available

14

MTD 725-0963

Bulb (Headlight)
(Superseded to 925-0963)

$7.99

$

In Stock, Qty 20+

0

15

MTD 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$6.99

$

In Stock, only 4 left!

0

16

MTD 725-0980

Ground Wire 7.5" Lg.

$

$

Not available

17

MTD 725-1439

Safety Switch (Seat)

$8.99

$

In Stock, Qty 6

0
