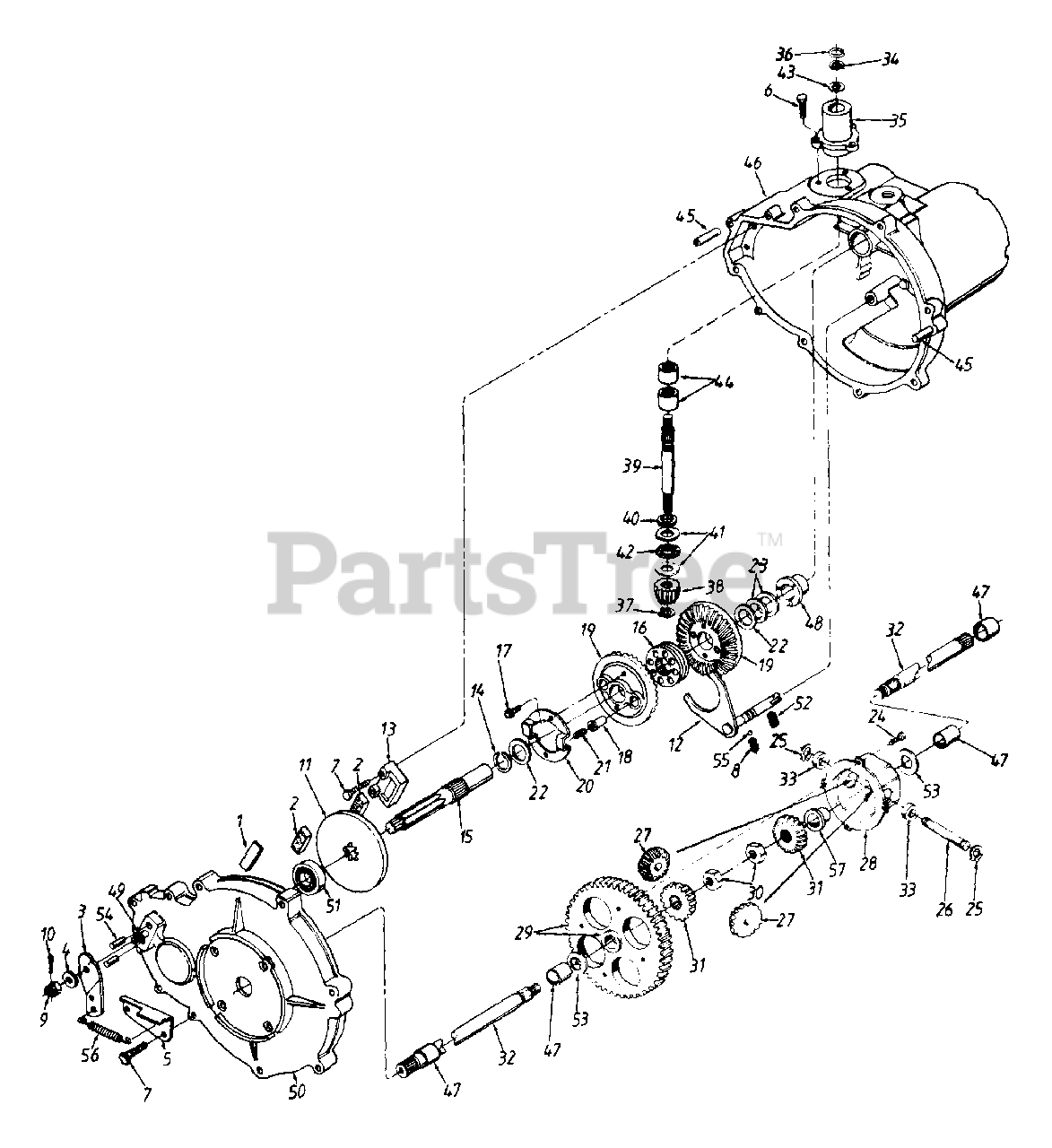

133M617G000 - MTD Lawn Tractor (1993) Transaxle Assembly Parts Diagram

Lawn Tractor

Transaxle Assembly Parts Diagram

  • Title
1

MTD Part# 717-0682

Puck Plate
(Superseded to 917-0682)
Usually ships in 1 day

$

$8.00

0

2

MTD Part# 761-0200

Brake Puck
(Superseded to 961-0200)
Usually ships same day

Not available

$

$

3

MTD Part# 717-0772A

Actuating Arm
(Superseded to 717-0772B)
Usually ships in 1 day

$

$8.87

0

4

MTD Part# 736-0371

Fl-Wash. 11/32" I.D. x 7/8" O.D.
Usually ships in 1 day

$

$3.16

0

5

MTD Part# 17841

Brake Stop Brkt.
Usually ships same day

Not available

$

$

6

MTD Part# 710-0433

Hex Bolt 1/4-20 x .62" Lg. (Special)
Usually ships in 1 day

$

$3.19

0

7

MTD Part# 710-0809

Hex Tap Scr. 1/4-20 x 1.25" Lg.
Usually ships in 1 day

$

$5.07

0

8

MTD Part# 732-0863

Spring Detent
(Superseded to 932-0863)
Usually ships in 5 to 10 days

$

$2.94

0

9

MTD Part# 712-0335

Castle Nut 5/16-24 Thd.
(Superseded to 912-0273)
Usually ships in 5 to 10 days

$

$3.23

0

10

MTD Part# 714-0111

Cotter Pin 3/32" Dia. x 1" Lg.
(Superseded to 914-0111)
Usually ships in 1 day

$

$3.36

0

11

MTD Part# 718-0184

Brake Disc
Usually ships same day

Not available

$

$

12

MTD Part# 717-1102

Shifter Ass'y.
Usually ships same day

Not available

$

$

13

MTD Part# 717-1217

Brake Puck Holder
Usually ships same day

Not available

$

$

14

MTD Part# 716-0175

Retaining Ring
Usually ships same day

Not available

$

$

15

MTD Part# 717-1093

Shaft Drive
Usually ships same day

Not available

$

$

16

MTD Part# 717-1268

Shift Collar
Usually ships same day

Not available

$

$

17

MTD Part# 710-0653

Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg.
Usually ships in 1 day

$

$3.03

0

18

MTD Part# 717-1184

Drive Pin
(Superseded to 917-1184)
Usually ships in 1 day

$

$17.05

0

19

MTD Part# 717-1275

Bevel Gear Ass'y.

Note: (Incl. Ref. Nos. 17, 1B, 20 and 21)

Usually ships same day

Not available

$

$

20

MTD Part# 717-1269

Spring Retaining Plate
Usually ships in 5 to 10 days

$

$53.15

0

21

MTD Part# 732-0590

Drive Spring
(Superseded to 732-0590A)
Usually ships in 5 to 10 days

$

$2.58

0

22

MTD Part# 736-0444

Fl-Wash. .915" I.D. x 1.5" O.D.
Usually ships same day

Not available

$

$

23

MTD Part# 736-0454

Fl-Wash. .915" I.D. x 1.37" O.D.
(Superseded to 936-0454)
Usually ships same day

Not available

$

$

24

MTD Part# 710-0862A

Pan Hd. Scr. 1/4-20 x .5" Lg.
Usually ships in 5 to 10 days

$

$3.24

0

25

MTD Part# 716-0184

Snap Ring
(Superseded to 916-0184)
Usually ships in 5 to 10 days

$

$3.40

0

26

MTD Part# 711-0918

Cross Shaft
Usually ships in 5 to 10 days

$

$11.48

0

27

MTD Part# 717-1020

Miter Gear 15T
Usually ships in 1 day

$

$21.47

0

28

MTD Part# 717-1252

Differential Can Assembly
(Superseded to 918-04089)
Usually ships in 5 to 10 days

$

$32.24

0

29

MTD Part# 717-1254

Differential Gear Ass'y. w/Bearing
Usually ships same day

Not available

$

$

30

MTD Part# 712-0200A

Hex Ins. L-Nut 1/2-20 Thd.
Usually ships in 1 day

$

$3.08

0

31

MTD Part# 717-1019

Miter Gear
(Superseded to 917-1019)
Usually ships in 5 to 10 days

$

$20.60

0

32

MTD Part# 717-1197

Axle
(Superseded to 917-1197)
Usually ships same day

Not available

$

$

33

MTD Part# 750-0787

Differential Thrust Spacer
(Superseded to 753-0527)
Usually ships same day

Not available

$

$

34

MTD Part# 716-0171

Retainer Ring
(Superseded to 916-0171)
Usually ships in 5 to 10 days

$

$4.03

0

35

MTD Part# 717-1228

Input Bearing Housing
Usually ships same day

Not available

$

$

36

MTD Part# 732-0614

Wire Ring
Usually ships in 1 day

$

$4.31

0

37

MTD Part# 716-0108

Retaining Ring
(Superseded to 916-0108)
Usually ships in 1 day

$

$3.63

0

38

MTD Part# 717-0633

Pinion Input 14T
(Superseded to 917-0633)
Usually ships in 5 to 10 days

$

$16.10

0

39

MTD Part# 711-0861

Input Shaft
Usually ships same day

Not available

$

$

40

MTD Part# 721-0178

Seal 5/8" I.D.
(Superseded to 921-0178)
Usually ships same day

Not available

$

$

41

MTD Part# 736-0419

Thrust Wash. .621" 1.0. x 1.12"
(Superseded to 936-0419)
Usually ships in 5 to 10 days

$

$4.50

0

42

MTD Part# 741-0469

Thrust Bearing
Usually ships in 5 to 10 days

$

$9.58

0

43

MTD Part# 736-0349

Fl-Wash. 5/8" I.D. x 1.0" O.D.
(Superseded to 936-0349)
Usually ships in 1 day

$

$3.06

0

44

MTD Part# 741-0335

Needle Brg. 5/8" x 1/2" Lg.
(Superseded to 941-0335)
Usually ships in 1 day

$

$13.39

0

45

MTD Part# 715-0209

Dowel Pin
Usually ships same day

Not available

$

$

46

MTD Part# 717-1235

R.H. Housing
Usually ships same day

Not available

$

$

47

MTD Part# 741-0340

Sleeve Bearing 3/4" I.D.
(Superseded to 741-05060)
Usually ships in 1 day

$

$6.16

0

48

MTD Part# 741-0548

Flange Bearing .906" I.D.
Usually ships same day

Not available

$

$

49

MTD Part# 717-0796

Sq. Head Bolt 5/16-24 Thd.
Usually ships in 5 to 10 days

$

$4.23

0

50

MTD Part# 717-1234

L.H. Housing
Usually ships same day

Not available

$

$

51

MTD Part# 741-0124

Ball Bearing .669" I.D.
(Superseded to 941-0600)
Usually ships in 1 day

$

$18.53

0

52

MTD Part# 710-3006

Set Screw 5/16-18 x 3/8" Lg.
Usually ships in 1 day

$

$4.13

0

53

MTD Part# 736-0445

Fl-Wash. .76" I.D. x 1.5" O.D.
(Superseded to 936-0445)
Usually ships same day

Not available

$

$

54

MTD Part# 741-0343

Brake Actuating Pin
(Superseded to 941-0343)
Usually ships same day

Not available

$

$

55

MTD Part# 741-0862

Ball Detent
Usually ships in 1 day

$

$3.11

0

56

MTD Part# 732-0545

Ext. Spring 1.14" Lg.
(Superseded to 932-0545)
Usually ships same day

Not available

$

$

57

MTD Part# 741-0552

Differential Flange Brg.
Usually ships same day

Not available

$

$

MTD Part# 618-0034

Transaxle Complete
Usually ships same day

Not available

$

$
