133Q694G401 - Yard-Man Lawn Tractor (1993) Muffler Shield, Hood And Grille Assembly Parts Diagram

Lawn Tractor

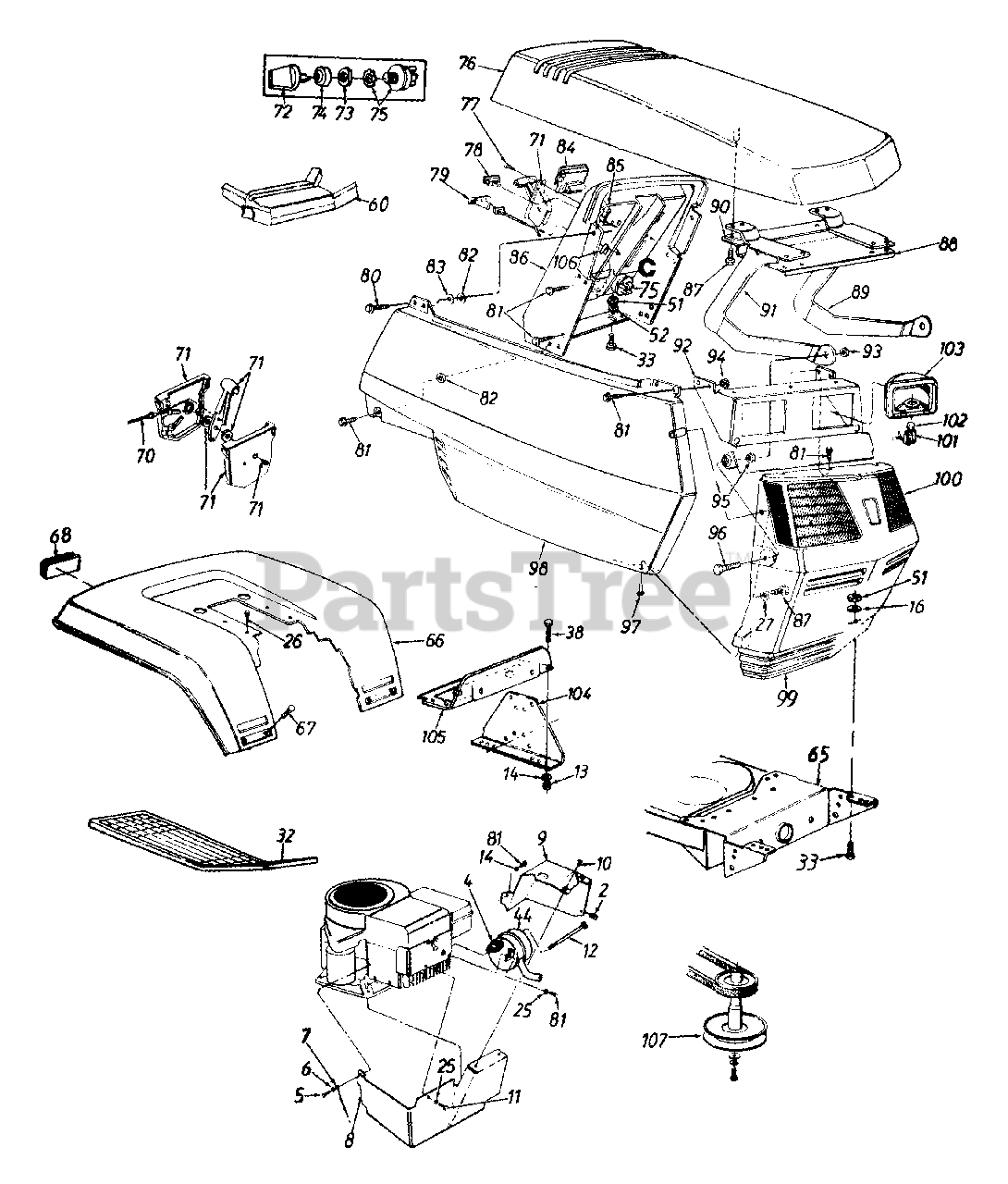

Muffler Shield, Hood And Grille Assembly Parts Diagram

  • Title

2

MTD 712-0147

Speed Nut #10-24 Thd.

Note: Used with single cylinder engine only.

$6.49

$

Usually ships in 3-6 days

0

4

MTD 721-0208

Gaskets
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

5

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75"

Note: Used with single cylinder engine only.

$4.49

$

In Stock, only 2 left!

0

6

MTD 736-0607

External L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

7

MTD 725-0980

Ground Wire

$

$

Not available

8

MTD 16936

Muffler Heat Shield - Front

Note: Used with single cylinder engine only.

$

$

Not available

9

MTD 683-0042

Muffler Heat Shield - L.H.
(Superseded to 683-0042A)

Note: New Part; Used with single cylinder engine only.

$

$

Not available

10

MTD 710-0224

Hex Wash. Tap Scr. #10 x .5" L.g.
(Superseded to 910-0224)

$3.49

$

In Stock, only 1 left!

0

11

MTD 710-0294

Hex Bolt 1/4-20 x 3/8" Lg.

Note: Used with single cylinder engine only.

$3.49

$

Usually ships in 3-6 days

0

12

MTD 738-0636

Shld. Bolt 7/16" Dia. x 3-5/8"
(Superseded to 938-0636)

Note: Used with single cylinder engine only.

$

$

Not available

13

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

14

MTD 736-0329

L-Wash, 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

16

MTD 736-3078

Fl-Wash. .344" I.D. x 1" O.D.

$3.99

$

In Stock, Qty 15

0

25

MTD 736-0175

Spr. Wash. .265" I.D.
(Superseded to 936-0175)

Note: Used with single cylinder engine only.

$3.99

$

In Stock, only 3 left!

0

26

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

27

MTD 736-0142

Fl-Wash. .218" I.D. x .5" O.D.

$4.49

$

In Stock, only 1 left!

0

32

MTD 731-0911

Rubber Foot Pad - L.H.

Note: (Optional)

$

$

Not available

MTD 731-0912

Rubber Foot Pad - R.H.

Note: (Optional)

$

$

Not available

33

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

38

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

44

MTD 751-0465

Muffler
(Superseded to 951-0465A)

Note: Used with single cylinder engine only.

$

$

Not available

51

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0275

Ft-Wash. .343" I.D. x .687"

$6.49

$

Usually ships in 3-6 days

0

60

MTD 731-0955

Steering Wheel Insert
(Superseded to 931-0955)

Note: (Optional)

$

$

Not available

65

MTD 783-0041

Pivot Bar Brkt.
(Superseded to 783-0041C)

Note: New Part

Variations

MTD 783-0041-0483

Pivot Bar Bracket - CHARCOAL GRAY (0483)

$89.99

$

Usually ships in 3-6 days

0

MTD 783-0041-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

MTD 783-0041-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0041-0638

No Longer Available BRACKET-PI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0041-0648

No Longer Available BRACKET-PI - TECH GRAY (0648)

$

$

Not available

MTD 783-0041-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

$77.99

$

Usually ships in 3-6 days

0

66

MTD 17324B

Fender

Variations

MTD 17324B-0480

No Longer Available FENDER-RR - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17324B-0483

No Longer Available FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17324B-0498

No Longer Available FENDER-RR - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17324B-0499

No Longer Available FENDER-RR - CUB BEIGE (0499)

$

$

Not available

MTD 17324B-0629

No Longer Available FENDER-RR - SILVER FLAKE (0629)

$

$

Not available

MTD 17324B-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17324B-0648

Fender - TECH GRAY (0648)

$

$

Not available

MTD 17324B-0662

No Longer Available FENDER-RR - OYSTER GRAY (0662)

$

$

Not available

MTD 17324B-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

MTD 17324B-0667

No Longer Available FENDER-RR - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17324B-0674

No Longer Available FENDER-RR - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17324B-0685

No Longer Available FENDER-RR - CUB BLUE (0685)

$

$

Not available

MTD 17324B-0686

No Longer Available FENDER-RR - SIMPLICITY ORANGE (0686)

$

$

Not available

$

$

67

MTD 710-0167

Carriage Bolt 1/4-20 x .62" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

68

MTD 725-3000

Reflector

Note: (Optional)

$

$

Currently unavailable

70

MTD 746-0501

Throttle Wire 18.5" Lg.

Note: Used with single cylinder engine only.

$16.99

$

In Stock, only 4 left!

0

MTD 746-0634

Throttle Wire 35" Lg.
(Superseded to 946-0634)

Note: Used with twin cylinder engine only.

$10.99

$

In Stock, Qty 11

0

71

MTD 831-0823A

Throttle Control Box Ass'y.

$30.99

$

In Stock, Qty 20+

0

72

MTD 725-1341B

Ignition Key

$9.99

$

In Stock, only 3 left!

0

73

MTD 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

74

MTD 725-1347

Ignition Switch Cap

$4.49

$

In Stock, only 4 left!

0

75

MTD 725-1396

Ignition Switch
(Superseded to 925-1396A)

$40.99

$

In Stock, Qty 14

0

76

MTD 731-1433

Hood (Yellow)
(Superseded to 931-1433)

$

$

Not available

MTD 731-1374

Hood (Beige)

$

$

Not available

77

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

78

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

79

MTD 746-3021

Choke Control

Note: Used with single cylinder engine only.

$26.99

$

In Stock, only 1 left!

0

MTD 746-0614A

Choke Control

Note: Used with twin cylinder engine only.

$22.99

$

In Stock, Qty 13

0

80

MTD 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

81

MTD 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

82

MTD 726-0233

Push Nut Fastener

$3.99

$

In Stock, Qty 11

0

83

MTD 736-0176

Fl-Wash. .27" I.D. x .948"

$3.99

$

In Stock, Qty 20+

0

84

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 2 left!

0

85

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

86

MTD 731-0961A

Dash Panel

$

$

Not available

87

MTD 710-0896

Hex Wash. Hd. B-Tap Scr. 1/4 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

88

MTD 16808

Hood Reinforcement

$

$

Not available

89

MTD 17761

Hood Hinge - L.H.

$

$

Not available

90

MTD 17762

Hood Reinforcement Spacer

Variations

MTD 17762-0637

No Longer Available SPACER-HOO - POWDER BLACK (0637)

$

$

Not available

$

$

91

MTD 17760

Hood Hinge - R.H

$

$

Not available

92

MTD 17223

Light Bracket

Variations

MTD 17223-0637

No Longer Available BRACKET-LI - POWDER BLACK (0637)

$

$

Not available

$

$

93

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

94

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

95

MTD 712-3007

Hex Jam Nut 5/16-18 Thd.

$6.49

$

In Stock, Qty 6

0

96

MTD 710-3038

Hex Bolt 5/16-18 x 7/8" Lg.

$4.49

$

In Stock, Qty 5

0

97

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, only 4 left!

0

98

MTD 731-1434

Side Cover - R.H. (Yellow)

$

$

Not available

MTD 731-1435

Side Cover - L.H. (Yellow - Not Shown)

$

$

Not available

MTD 731-0942

Side Cover - R.H. (Beige)

$

$

Not available

MTD 731-0945

Side Cover - L.H. (Beige - Not Shown)

$

$

Not available

99

MTD 731-1442

Grille (Yellow)
(Superseded to 731-1442A)

Note: New Part

$

$

Not available

MTD 731-1444

Grille (Beige)

Note: New Part

Variations

MTD 731-1444-0499

No Longer Available GRILLE - CUB BEIGE (0499)

$

$

Not available

$

$

100

MTD 731-0949

Lens - L.H.
(Superseded to 931-0949)

$

$

Not available

MTD 731-0948

Lens - R.H.
(Superseded to 931-0948)

$34.99

$

In Stock, only 1 left!

0

101

MTD 725-1650

Twist Lock - Lamp Socket
(Superseded to 925-1650)

$12.99

$

Usually ships in 3-6 days

0

102

MTD 725-0963

Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

103

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

104

MTD 17300D

Dash Support Brkt.

Variations

MTD 17300D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

105

MTD 17633A

Support Brkt.

Variations

MTD 17633A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

106

MTD 17782

Choke Retainer

$4.99

$

In Stock, only 3 left!

0

107

MTD 756-0522

Engine Pulley (30" Deck Only)

$

$

Not available
