1340 (140-631-100) - Cub Cadet Garden Tractor Cylinder Head, Valve & Breather Parts Diagram

Garden Tractor

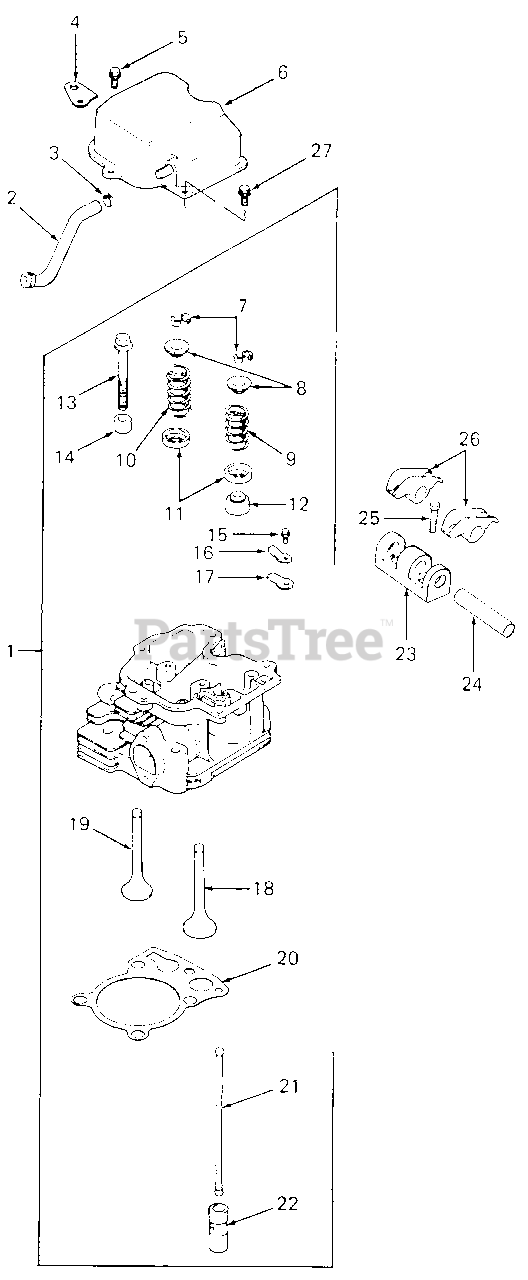

Cylinder Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-12-755-02

Kit, Cylinder Head
(Superseded to KH-12-755-81)

Note: (Includes Ref No. 7 thru 22)

$

$

Not available

2

Cub Cadet KH-12-326-07

Hose, Breather

$

$

Not available

3

Cub Cadet KH-X-426-9

Clamp, Hose
(Superseded to KH-25-237-31-S)

$5.99

$

In Stock, Qty 12

0

4

Cub Cadet KH-12-445-05

Strap, Lifting
(Superseded to KH-25-445-02-S)

$2.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-SM-0645025

Screw, Valve Cover, M6 X 1.0 X 25
(Superseded to KH-M-645025-S)

$3.49

$

In Stock, Qty 16

0

6

Cub Cadet KH-12-096-07

Cover, Valve w/Nipple
(Superseded to KH-12-755-102-S)

$109.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, Qty 14

0

8

Cub Cadet KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, only 4 left!

0

9

Cub Cadet KH-12-089-01

Spring, Intake Valve
(Superseded to KH-12-089-34-S)

$10.99

$

In Stock, only 2 left!

0

10

Cub Cadet KH-12-089-15

Spring, Exhaust Valve

$

$

Not available

11

Cub Cadet KH-52-018-01

Retainer, Spring
(Superseded to KH-235011-S)

$6.49

$

In Stock, Qty 5

0

12

Cub Cadet KH-12-032-02

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

13

Cub Cadet KH-M-1040080

Screw, Cylinder Head, M10 X 1.5 X 80
(Superseded to KH-20-086-02-S)

$3.99

$

In Stock, only 4 left!

0

14

Cub Cadet KH-12-112-04

Spacer, Head Bolt Exhaust Port

$

$

Not available

15

Cub Cadet KH-SM-0545010

Screw, Breather Reed Retainer, M5 X 0.8 X 10
(Superseded to KH-M-0545010)

$

$

Not available

16

Cub Cadet KH-12-018-01

Retainer, Breather Reed
(Superseded to KH-66-018-04-S)

$4.99

$

In Stock, Qty 12

0

17

Cub Cadet KH-12-402-01

Reed, Breather
(Superseded to KH-24-402-06-S)

$3.49

$

Usually ships in 3-6 days

0

18

Cub Cadet KH-12-017-01

Valve, Intake, Std

$

$

Not available

Cub Cadet KH-12-017-02

Valve, Intake, .25

$

$

Not available

19

Cub Cadet KH-12-016-01

Valve, Exhaust, Std

$

$

Not available

Cub Cadet KH-12-016-02

Valve, Exhaust, .25

$

$

Not available

20

Cub Cadet KH-12-041-04

Gasket, Cylinder Head
(Superseded to KH-12-041-08-S)

$20.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-12-411-01

Rod, Push
(Superseded to KH-12-411-04-S)

$5.99

$

In Stock, only 4 left!

0

22

Cub Cadet KH-12-351-01

Lifter, Valve
(Superseded to KH-25-351-11-S)

$29.99

$

In Stock, Qty 20+

0

23

Cub Cadet KH-12-126-05

Bridge, Rocker Arm

$

$

Not available

24

Cub Cadet KH-12-144-03

Shaft, Rocker Arm

$

$

Not available

25

Cub Cadet KH-SM-0642025

Screw, Rocker Bridge, M6 X 1.0 X 25
(Superseded to KH-M-642025-S)

$2.49

$

Usually ships in 2-5 days

0

26

Cub Cadet KH-12-186-01

Arm, Rocker

$

$

Not available

27

Cub Cadet KH-SM-0645020

Screw, Valve Cover, M6 X 1.0 X 20
(Superseded to KH-25-086-396-S)

$2.99

$

In Stock, Qty 20+

0
