1340 (140-631-100) - Cub Cadet Garden Tractor Fuel System Parts Diagram

Garden Tractor

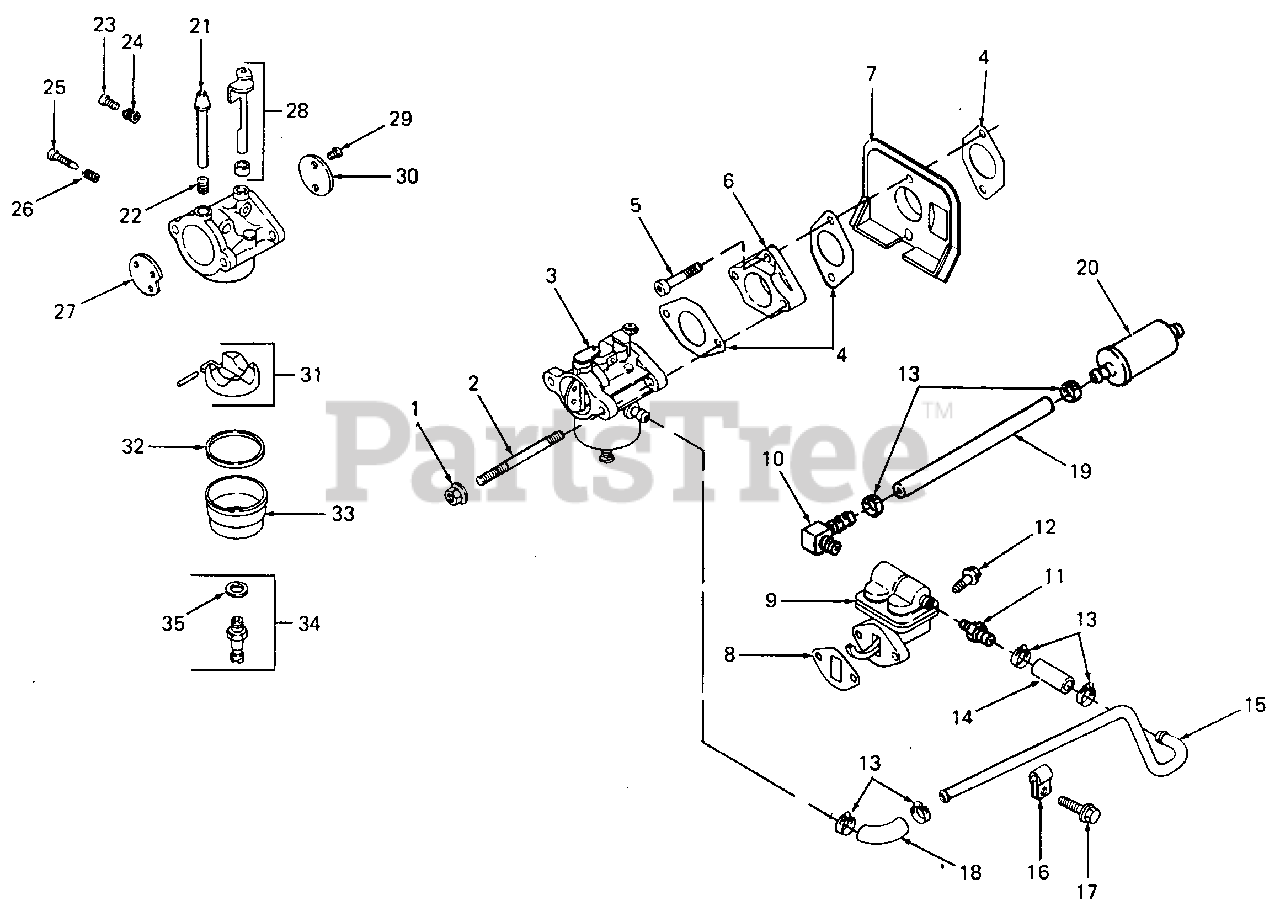

Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-SM-0641060

Nut, Carburetor, M6 X 1.0
(Superseded to KH-M-641060-S)

$4.49

$

In Stock, Qty 16

0

2

Cub Cadet KH-M-0629085

Stud, Carburetor

$1.49

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-12-853-12

Carburetor Assy w/Gasket
(Superseded to KH-12-853-33-S)

$219.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-12-041-01

Gasket, Carburetor

$2.49

$

In Stock, Qty 14

0

5

Cub Cadet KH-M-0644035

Screw, Manifold Mounting
(Superseded to KH-M-644035-S)

$2.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-12-029-04

Manifold, Carburetor

$

$

Not available

7

Cub Cadet KH-12-265-01

Deflector, Heat
(Superseded to KH-12-265-08-S)

$9.49

$

In Stock, only 1 left!

0

8

Cub Cadet KH-25-041-05

Gasket, Fuel Pump
(Superseded to KH-25-041-10-S)

$3.49

$

In Stock, Qty 12

0

9

Cub Cadet KH-12-559-01

Pump, Fuel
(Superseded to KH-12-559-02-S)

Note: (Includes Ref No. 10 & 11)

$48.99

$

In Stock, Qty 16

0

10

Cub Cadet KH-25-155-02

Connector, 90

$

$

Not available

11

Cub Cadet KH-X-380-1

Connector, Straight Hose
(Superseded to KH-25-326-03-S)

$3.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-SM-0645020

Screw, Fuel Pump Mounting
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, Qty 20+

0

13

Cub Cadet KH-X-426-9

Clamp, Fuel Line
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, Qty 6

0

14

Cub Cadet KH-25-353-01

Line, Fuel - Metal Line to Pump

$

$

Not available

15

Cub Cadet KH-12-123-06

Line, Fuel - Metal
(Superseded to KH-12-353-11)

$

$

Not available

16

Cub Cadet KH-12-154-01

Clamp, Fuel Line

$

$

Not available

17

Cub Cadet KH-SM-0545010

Screw, Fuel Line Clamp
(Superseded to KH-M-0545010)

$

$

Not available

18

Cub Cadet KH-12-353-07

Line, Fuel - Metal Line to Carb
(Superseded to KH-25-111-36-S)

$7.49

$

In Stock, only 2 left!

0

19

Cub Cadet KH-25-353-02

Line, Fuel - Pump to Filter

$

$

Not available

20

Cub Cadet KH-25-050-01

Filter, Fuel
(Superseded to KH-25-050-07-S)

$10.99

$

In Stock, Qty 20+

0

21

Cub Cadet KH-12-144-08

Shaft, Choke

$

$

Not available

22

Cub Cadet KH-12-089-10

Spring, Choke Return

$

$

Not available

23

Cub Cadet KH-12-086-04

Screw, Throttle Adj

$

$

Not available

24

Cub Cadet KH-12-089-09

Spring, Needle

$

$

Not available

25

Cub Cadet KH-12-368-01

Screw, Idle Needle

$

$

Not available

26

Cub Cadet KH-12-089-09

Spring, Needle

$

$

Not available

27

Cub Cadet KH-12-146-02

Plate, Choke

$

$

Not available

28

Cub Cadet KH-12-144-09

Shaft, Throttle

$

$

Not available

29

Cub Cadet KH-25-086-27

Screw, Valve

$

$

Not available

30

Cub Cadet KH-12-146-03

Plate, Throttle

$

$

Not available

31

Cub Cadet KH-12-757-02

Kit, Float Assembly

$

$

Not available

32

Cub Cadet KH-12-041-05

Gasket, Fuel Bowl

$

$

Not available

33

Cub Cadet KH-12-104-01

Bowl, Fuel

$

$

Not available

34

Cub Cadet KH-12-755-13

Kit, Adjustable Needle

$

$

Not available

35

Cub Cadet KH-12-041-06

Gasket
(Superseded to KH-25-041-03)

$

$

Not available

Cub Cadet KH-12-757-01

Kit, Carburetor Repair

$

$

Not available
