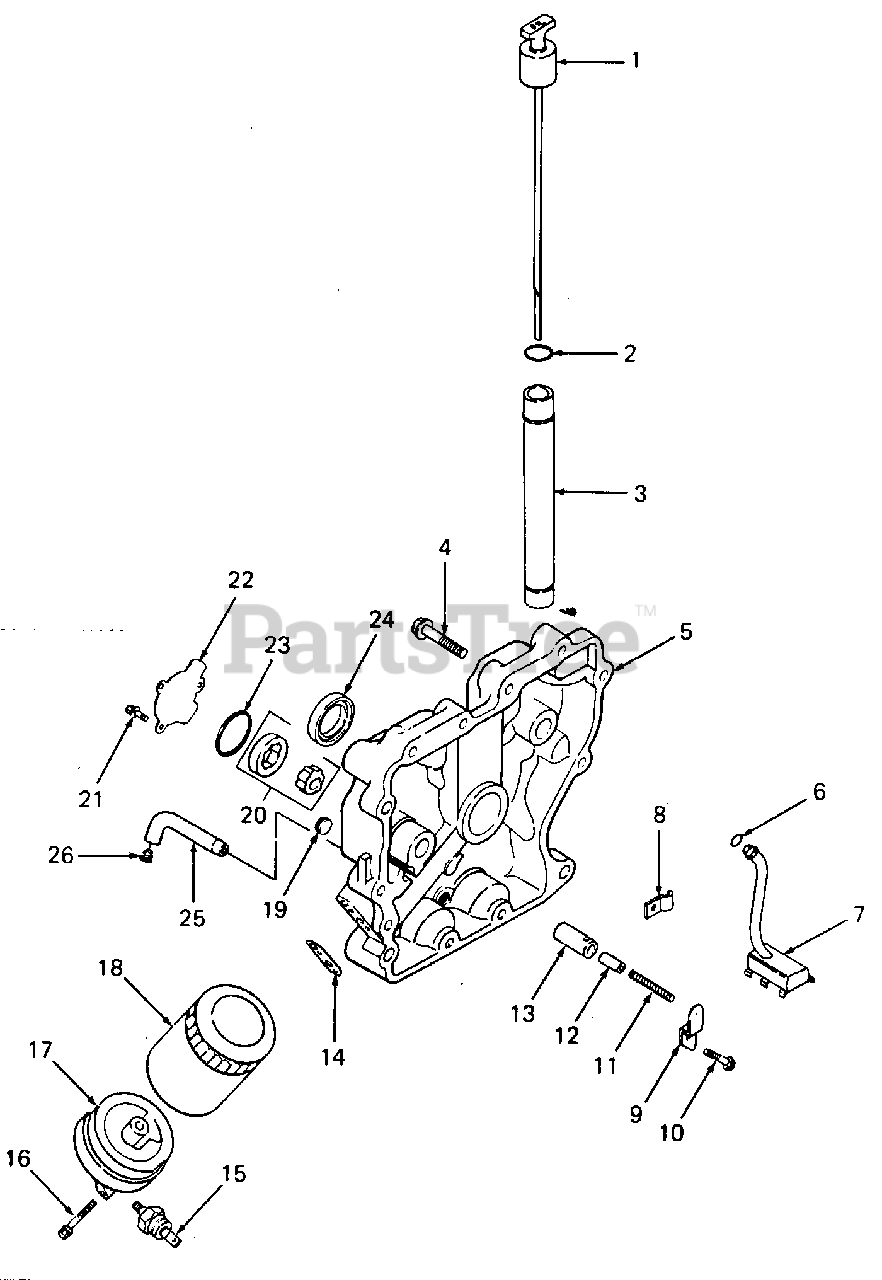

1340 (140-631-100) - Cub Cadet Garden Tractor Oil Pan/Lubrication Parts Diagram

Garden Tractor

Oil Pan/Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-12-038-03

Dipstick

$

$

Not available

2

Cub Cadet KH-41-153-91

O-Ring

$

$

Currently unavailable

3

Cub Cadet KH-12-123-05

Tube, Oil Fill

$

$

Not available

4

Cub Cadet KH-SM-0839045

Screw, Closure Plate, M8 X 1.25 X 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 20+

0

5

Cub Cadet KH-12-009-01

Plate, Closure
(Superseded to KH-12-009-40-S)

$518.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-12-153-04

O-Ring

$

$

Not available

7

Cub Cadet KH-12-381-01

Oil Pickup
(Superseded to KH-12-755-73)

$

$

Not available

8

Cub Cadet KH-52-154-01

Clamp, Oil Pickup Tube

$

$

Not available

Cub Cadet KH-SM-0545016

Screw, M5 X 0.8 X 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

9

Cub Cadet KH-12-126-16

Bracket, Oil Pump Relief
(Superseded to KH-25-462-09)

$

$

Not available

10

Cub Cadet KH-SM-1039025

Screw, Relief Valve Bracket, M10 X 1.5 X25

$

$

Not available

11

Cub Cadet KH-12-089-16

Spring, Oil Pump Relief Valve

$

$

Currently unavailable

12

Cub Cadet KH-12-462-02

Piston, Oil Pump Relief Valve

$

$

Not available

13

Cub Cadet KH-12-208-02

Body, Oil Pump Relief Valve
(Superseded to KH-25-462-09)

$

$

Not available

14

Cub Cadet KH-12-041-07

Gasket, Oil Filter Adapter

$

$

Not available

15

Cub Cadet KH-52-099-06

Switch, Oil Pressure
(Superseded to KH-25-099-27-S)

$15.99

$

In Stock, Qty 6

0

16

Cub Cadet KH-M-0639055

Screw, Adapter Mount
(Superseded to KH-25-086-84-S)

$2.49

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-12-029-03

Adapter, Oil Filter
(Superseded to KH-12-029-08)

$

$

Not available

18

Cub Cadet KH-12-050-01

Filter, Oil
(Superseded to KH-12-050-01-S)

$13.99

$

In Stock, Qty 20+

0

19

Cub Cadet KH-X-75-32

Plug, Drain
(Superseded to KH-25-139-62-S)

$3.49

$

In Stock, only 2 left!

0

20

Cub Cadet KH-12-393-01

Pump, Oil

$

$

Not available

21

Cub Cadet KH-SM-0545016

Screw, Oil Pump Cover, M5 X 0.8 X 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

22

Cub Cadet KH-12-096-02

Cover, Oil Pump
(Superseded to KH-12-096-21)

$

$

Not available

23

Cub Cadet KH-12-153-05

O-Ring, Oil Pump Cover

$

$

Not available

24

Cub Cadet KH-12-032-03

Seal
(Superseded to KH-12-032-03-S)

$9.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 751-3067

Pipe, Oil Drain

$

$

Not available

26

Cub Cadet 751-3001

Plug, Oil Drain

$

$

Not available

Cub Cadet KH-52-518-21

Lead, Oil Pressure Switch

$

$

Currently unavailable
