1345 SWE (31AE993J100) - Cub Cadet 45" Snow Thrower (2001) Belt Drive & Engine Accessories Parts Diagram

45" Snow Thrower

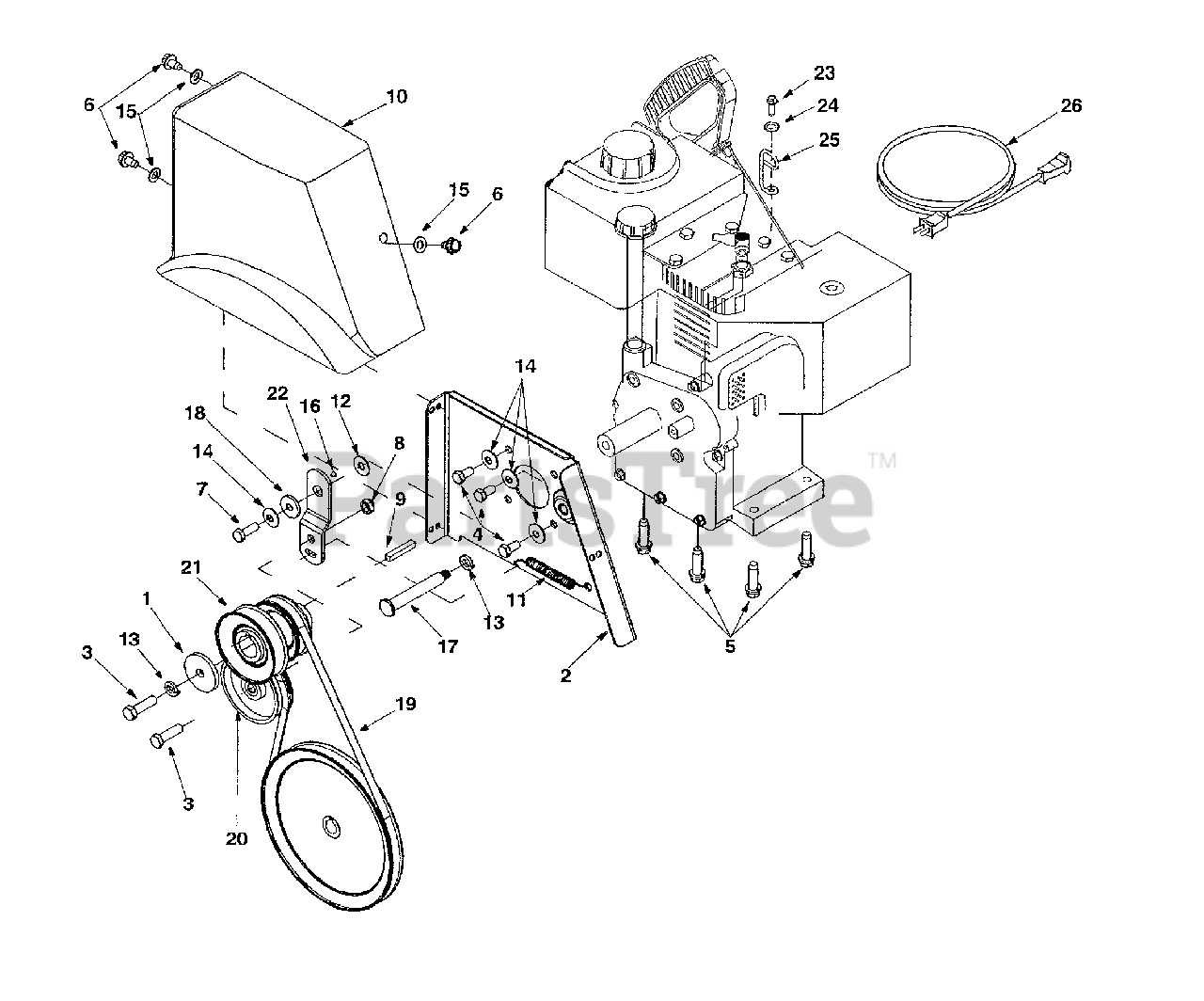

Belt Drive & Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 07386

Washer

$

$

Not available

2

Cub Cadet 684-0123A

Belt Cover Bracket Assembly
(Superseded to 684-0123A-0637)

Variations

Cub Cadet 684-0123A-0637

BRACKET-BELT COVER - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-0191

Hex Screw 3/8-24 x 1.25"

$4.49

$

In Stock, Qty 8

0

4

Cub Cadet 710-0237

Hex Screw 5/16-24 x .625"

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0502A

TT Sems Screw

$6.49

$

In Stock, Qty 7

0

6

Cub Cadet 710-0607

TT Screw 5/16-18 x 0.5"

$6.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1245

Hex Lock Screw 5/16-24 x .875"

$7.99

$

In Stock, only 4 left!

0

8

Cub Cadet 712-0116

Jam Nut

$4.49

$

In Stock, Qty 7

0

9

Cub Cadet 714-0118

Key

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 731-0321

Belt Cover
(Superseded to 931-2531)

$47.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 732-0303

Extension Spring
(Superseded to 932-0303)

$9.49

$

In Stock, Qty 14

0

12

Cub Cadet 736-0159

5/16 Washer

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0217

Lock Washer

$3.99

$

In Stock, Qty 13

0

14

Cub Cadet 736-0242

Beleville Washer

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0264

Flat Washer

$6.49

$

In Stock, only 1 left!

0

16

Cub Cadet 737-3007

Grease

$

$

Currently unavailable

17

Cub Cadet 738-0215A

Shoulder Screw

$8.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

19

Cub Cadet 754-0131

V-Belt
(Superseded to 954-0131)

$28.99

$

In Stock, Qty 7

0

20

Cub Cadet 756-0240

Flat Idler

$

$

Not available

21

Cub Cadet 756-0241B

Double Pulley

$92.99

$

In Stock, only 1 left!

0

22

Cub Cadet 784-5726

Idler Bracket

$37.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-0324

Hex Lock Nut: 1/4-20

$3.49

$

In Stock, Qty 20+

0

24

Cub Cadet 732-0705

Cable Guide

$11.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0173

Flat Washer

$3.99

$

In Stock, Qty 10

0

26

Cub Cadet 629-0071

Extension Cord: 110V, 3-prong
(Superseded to 929-0071B)

$22.99

$

Usually ships in 3-6 days

0
