135-0192 - Exmark Spreader Attachment (SN: 404314159 - 406294344) (2019) Speader Assembly Parts Diagram

Spreader Attachment

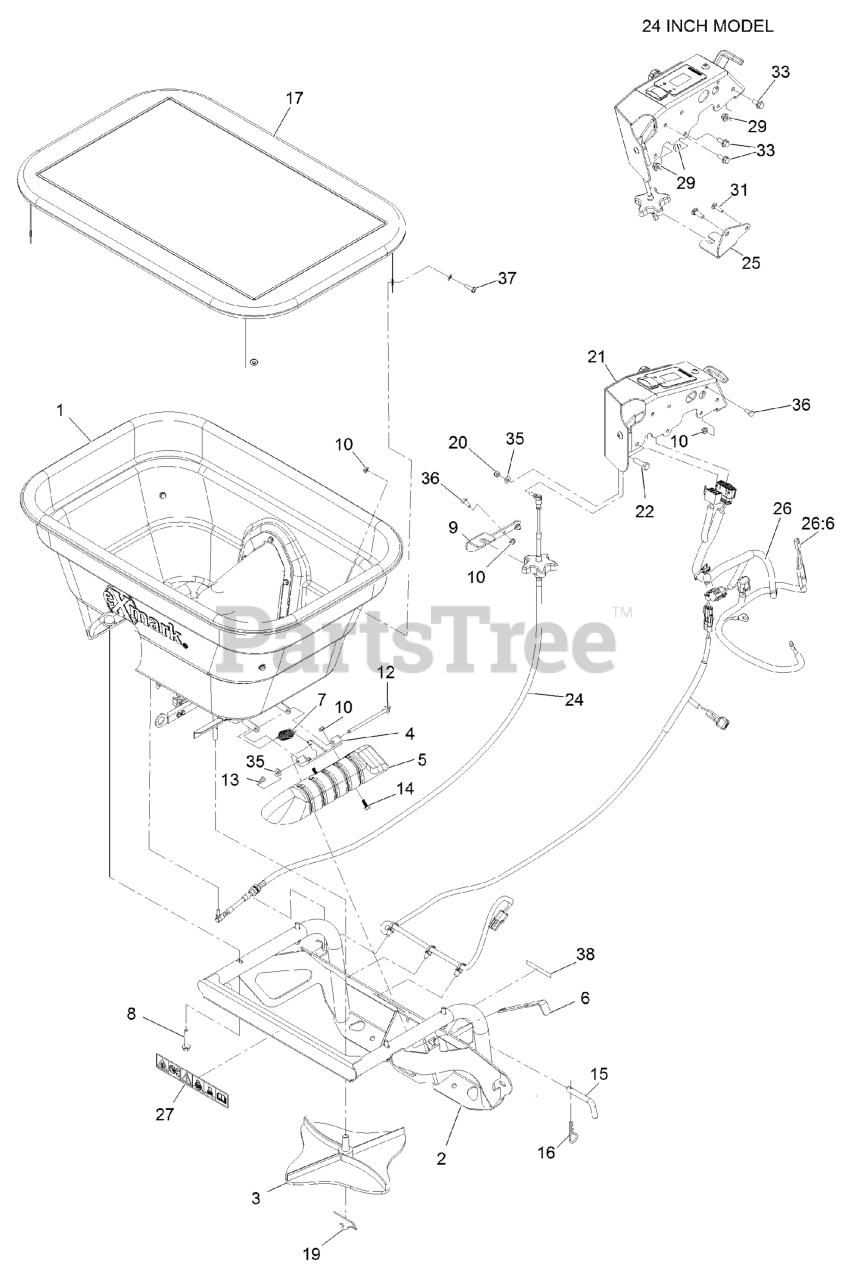

Speader Assembly Parts Diagram

  • Title

1

Asy-Spreader Hopper (Exmark)

Note: Not serviced separately

$

$

Not available

2

Exmark 135-0193-03

SPREADER HOPPER FRAME ASM

$538.99

$

Usually ships in 3-6 days

0

3

Exmark 126-0858

SPINNER-SPREADER

$69.99

$

In Stock, Qty 14

0

4

Exmark 135-1514-03

BRACKET-DEFLECTOR

$26.99

$

Usually ships in 3-6 days

0

5

Exmark 126-8623

DEFLECTOR

$74.99

$

Usually ships in 3-6 days

0

6

Exmark 126-8625

STRAP-ENGAGEMENT

$17.99

$

Usually ships in 3-6 days

0

7

Exmark 92-7305

Spring-Extension

$10.99

$

Usually ships in 3-6 days

0

8

Exmark 94-5780

Screw-HWH

$8.49

$

Usually ships in 3-6 days

0

9

Exmark 126-8634-03

BRACKET-CABLE

$14.99

$

Usually ships in 3-6 days

0

10

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Exmark 126-8636

PIN-PIVOT

$13.99

$

Usually ships in 3-6 days

0

13

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

14

Exmark 99-6810

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

15

Exmark 126-8637

PIN-HITCH

$18.99

$

Usually ships in 3-6 days

0

16

Exmark 3290-256

PIN-HAIR

$8.49

$

In Stock, Qty 13

0

17

Exmark 126-2815

COVER-HOPPER

$101.99

$

In Stock, only 1 left!

0

19

Exmark 126-1246

CLIP-SPINNER
(Superseded to 142-3541)

$10.99

$

In Stock, only 2 left!

0

20

Exmark 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

21

Spreader Controller ASM

Note: Not serviced separately

$

$

Not available

22

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

24

Exmark 135-0841

CABLE-PUSH, PULL

$153.99

$

Usually ships in 3-6 days

0

25

Exmark 135-0857-03

BRACKET-CABLE

$11.99

$

Usually ships in 3-6 days

0

26

Exmark 135-0700

HARNESS

$251.99

$

Usually ships in 3-6 days

0

26:6

Exmark 135-0878

CONNECTOR

$33.99

$

Usually ships in 3-6 days

0

27

Exmark 126-4994

DECAL-DOWN, TIE

$7.99

$

Usually ships in 3-6 days

0

29

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Exmark 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

33

Exmark 3234-47

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

35

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 13

0

37

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 15

0

38

Exmark 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0
