135-0332 - Exmark Bagger for 60" Quest Mower (SN: 400000000 - 402082299) (2017) Frame and Bag Assembly Parts Diagram

Bagger for 60" Quest Mower

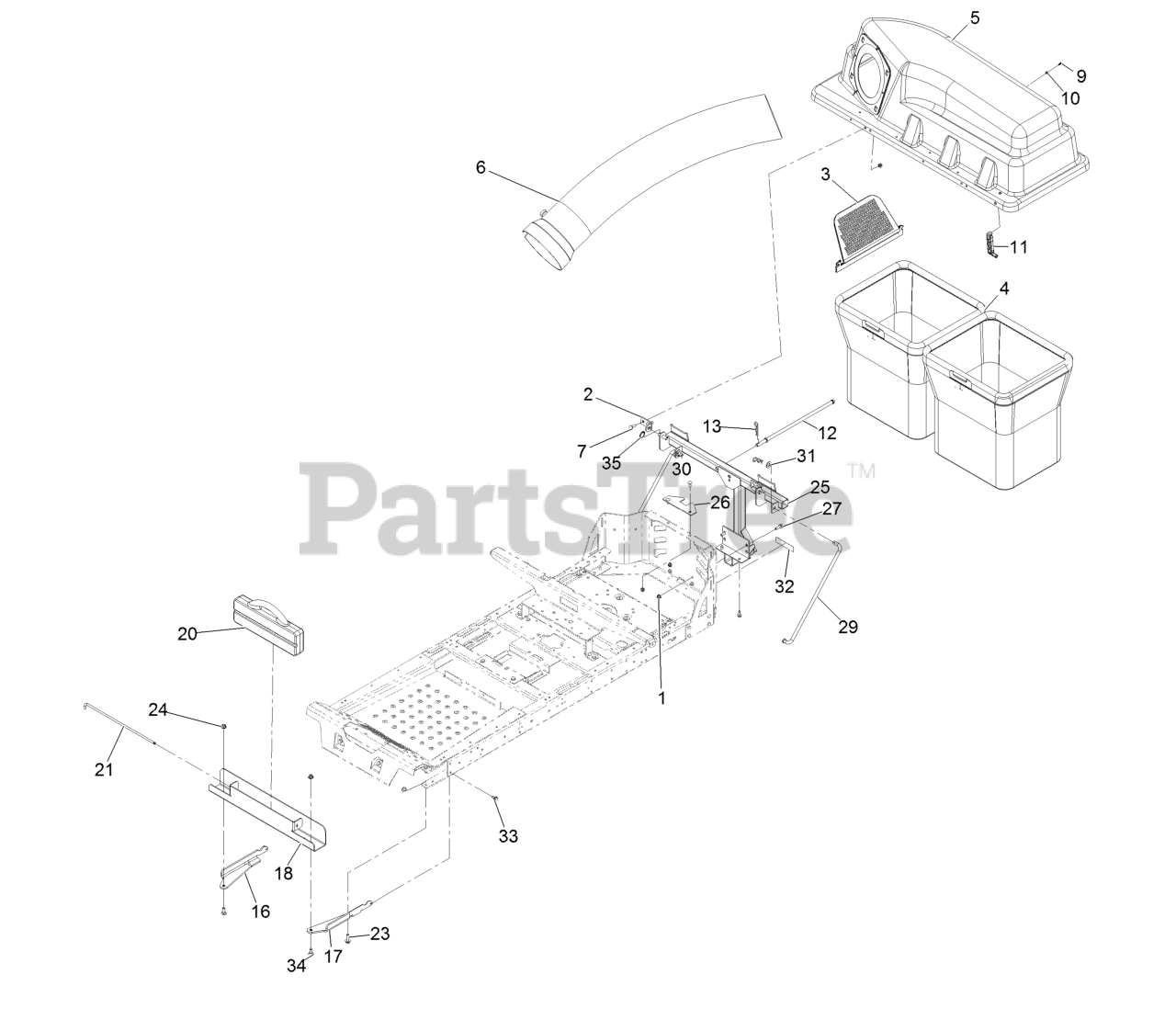

Frame and Bag Assembly Parts Diagram

  • Title

1

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, only 1 left!

0

2

Exmark 112-3987

BRACKET-PIVOT, HOPPER

$8.99

$

Usually ships in 3-6 days

0

3

Exmark 112-3993

SCREEN-BAGGER

$34.99

$

In Stock, only 1 left!

0

4

Exmark 112-3994

BAG ASM

$198.99

$

Usually ships in 3-6 days

0

5

Exmark 131-8654

BAGGER TOP ASM

$285.99

$

Usually ships in 3-6 days

0

6

Exmark 117-5379

TUBE-BAGGER

$246.99

$

Usually ships in 3-6 days

0

7

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, only 1 left!

0

9

Exmark 132-6919

SCREW-PLASTIC, PTH

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 3256-77

WASHER-FLAT

$2.49

$

In Stock, only 2 left!

0

11

Exmark 116-4992

LATCH-RUBBER

$54.99

$

In Stock, only 1 left!

0

12

Exmark 131-4189

ROD-HOOD, DOWN (HOLD)

$26.99

$

In Stock, only 2 left!

0

13

Exmark 3290-355

PIN-HAIR

$2.99

$

In Stock, only 3 left!

0

16

Exmark 136-7461-03

BRACKET-WEIGHT, RH

$36.99

$

Usually ships in 3-6 days

0

17

Exmark 136-7462-03

BRACKET-WEIGHT, LH

$36.99

$

Usually ships in 3-6 days

0

18

Exmark 120-5491-03

CHANNEL-WEIGHT, BAGGER

$112.99

$

Usually ships in 3-6 days

0

20

Exmark 109-9742-05

WEIGHT-35 POUND

$491.99

$

Usually ships in 3-6 days

0

21

Exmark 109-9759

PIN-WEIGHT

$

$

Not available

23

Exmark 119-4061

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

24

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Exmark 136-4231-03

FRAME-PIVOT

$395.99

$

Usually ships in 3-6 days

0

26

Exmark 131-3967-03

BRACKET-STABILIZER

$6.99

$

In Stock, only 1 left!

0

27

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

29

Exmark 119-8853

ROD-SUPPORT

$26.99

$

Usually ships in 3-6 days

0

30

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

31

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Exmark 131-4036

DECAL

$2.99

$

In Stock, only 3 left!

0

33

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 15

0

34

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

35

Exmark 120-7127

PIN-COTTER, CIRCULAR

$1.49

$

Usually ships in 3-6 days

0
