135-3543 - Exmark Bagger for 42" Quest Mower (SN: 402082300 - 404314158) (2018) Frame and Bag Assembly Parts Diagram

Bagger for 42" Quest Mower

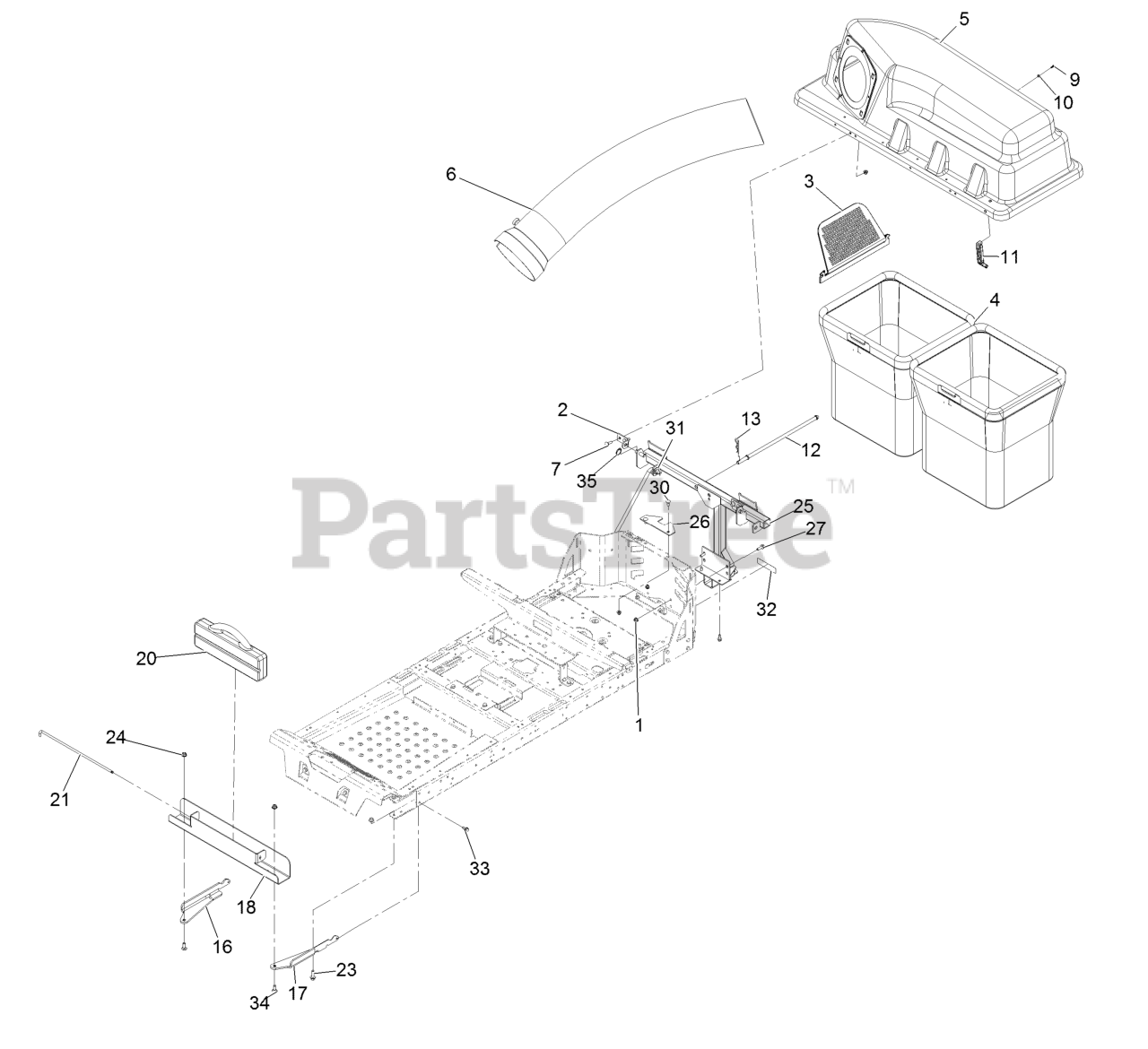

Frame and Bag Assembly Parts Diagram

  • Title

1

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

2

Exmark 112-3987

Bracket-Pivot, Hopper

$7.99

$

Usually ships in 3-6 days

0

3

Exmark 112-3993

Screen-Bagger

$29.99

$

In Stock, only 2 left!

0

4

Exmark 112-3994

Bag ASM

$175.99

$

In Stock, only 2 left!

0

5

Exmark 131-8654

Bagger Top ASM

$236.99

$

Usually ships in 3-6 days

0

6

Exmark 117-5379

Tube-Bagger

$218.99

$

Usually ships in 3-6 days

0

7

Exmark 3230-2

Bolt-Carriage 5/16-18 X 1

$1.49

$

In Stock, Qty 8

0

9

Exmark 132-6919

Screw-Plastite

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 3256-77

Washer-Flat

$2.49

$

In Stock, only 2 left!

0

11

Exmark 116-4992

Latch-Rubber

$49.99

$

In Stock, only 1 left!

0

12

Exmark 131-4189

Rod-Hood, Down (Hold)

$22.99

$

In Stock, only 1 left!

0

13

Exmark 3290-355

Pin-Hair

$2.49

$

In Stock, Qty 20+

0

16

Exmark 136-7461-03

Bracket-Weight, RH

$33.99

$

Usually ships in 3-6 days

0

17

Exmark 136-7462-03

Bracket-Weight, LH

$33.99

$

Usually ships in 3-6 days

0

18

Exmark 120-5491-03

Channel-Weight, Bagger

$103.99

$

Usually ships in 3-6 days

0

20

Exmark 109-9742-05

Weight-35 Pound

$450.99

$

Usually ships in 3-6 days

0

21

Exmark 109-9759

Pin-Weight

$

$

Not available

23

Exmark 119-4061

Screw-HHF

$2.49

$

In Stock, only 2 left!

0

24

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

25

Exmark 136-4231-03

Frame-Pivot

$336.99

$

Usually ships in 3-6 days

0

26

Exmark 131-3967-03

Bracket-Stabilizer

$6.49

$

In Stock, only 1 left!

0

27

Exmark 3234-29

Screw-HH Flg 5/16-18 X 1

$2.99

$

In Stock, Qty 12

0

30

Exmark 3230-1

Bolt-Carriage 5/16-18 X 3/4

$1.99

$

In Stock, Qty 20+

0

31

Exmark 3256-26

Washer-1/2 SAE

$0.99

$

In Stock, Qty 20+

0

32

Exmark 131-4036

Decal

$2.99

$

In Stock, only 3 left!

0

33

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

34

Exmark 3231-2

Bolt-Carriage 3/8-16 X 1

$1.99

$

In Stock, Qty 20+

0

35

Exmark 120-7127

Pin-Cotter, Circular

$1.49

$

Usually ships in 3-6 days

0
