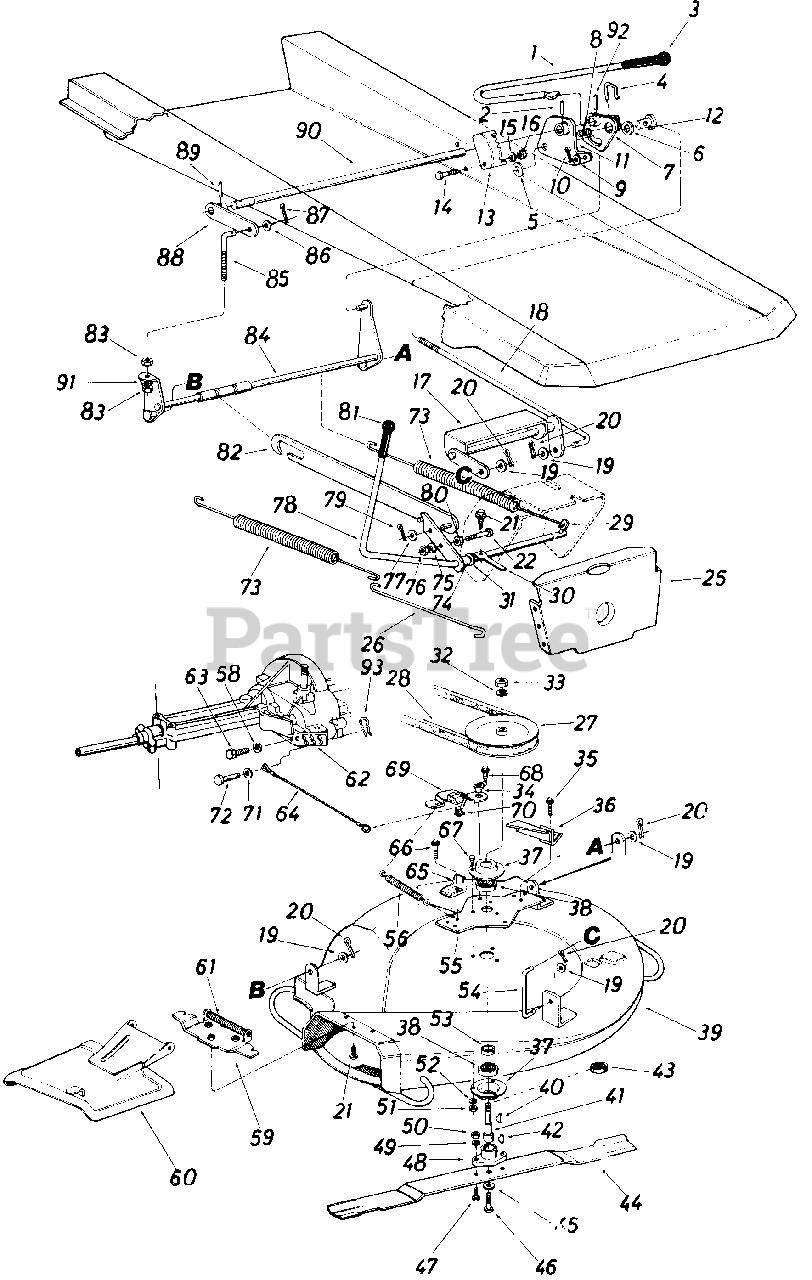

135-501-120 - MTD Lawn Tractor (1985) (K-Mart) Parts06 Parts Diagram

Lawn Tractor

Parts06 Parts Diagram

  • Title

1

MTD 747-0418

Deck Lift Handle

$

$

Currently unavailable

2

MTD 715-0114

Spring Pin Spir. 1/4" Dia. x 1.50" Lg.

$8.49

$

In Stock, Qty 9

0

3

MTD 720-0143

G ri p

$

$

Not available

4

MTD 714-0166

Cotter Pin

Note: (Special)

$

$

Not available

5

MTD 736-0162

Fl-Wash. 518" I.D. x 1.0" O.D. x .12

$3.99

$

In Stock, Qty 20+

0

6

MTD 736-0187

Fl-Wash. 518" I.D. x 1.25" O.D. x .60

$4.49

$

In Stock, Qty 20+

0

7

MTD 15576

Deck Lift Handle Brkt. Ass'y.

$

$

Currently unavailable

8

MTD 732-0430

Compression Spring .50" O.D. x 1.04

$

$

Not available

9

MTD 736-0300

Fl-Wash 385" I.D. x .87" O.D. x .06

$3.99

$

In Stock, Qty 20+

0

10

MTD 714-0115

Cotter Pin 118" Dia. x 1.00"

$3.99

$

In Stock, only 1 left!

0

11

MTD 15578

Deck Lift Brkt. Ass'y.-L.H.

$

$

Not available

12

MTD 711-0749

Adj. Ferrule-Deck Lift Handle

$

$

Not available

13

MTD 15581

Index Bracket

$

$

Not available

14

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

15

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 15573

Deck Lift Ass'y. Front

$

$

Not available

18

MTD 747-0426

Deck Lift Connecting Rod

$

$

Not available

19

MTD 736-0300

Fl-Wash. .385" I.D. x .87" O.D. x .06

$3.99

$

In Stock, Qty 20+

0

20

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00"

$3.99

$

In Stock, only 1 left!

0

21

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

22

MTD 710-0805

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

25

MTD 15613

Pivot Bar Bracket

$

$

Not available

26

MTD 732-0439

Spring Hook
(Superseded to 732-0451B)

$

$

Not available

27

MTD 756-0395

Deck Pulley 6.0" O.D.

$

$

Not available

28

MTD 754-0264

"V"-Belt 1/2" x 52" Lg.
(Superseded to 954-0264)

$51.99

$

Usually ships in 3-6 days

0

29

MTD 711-0753

Spec. Clevis Pin .250" Dia.

$

$

Not available

30

MTD 732-0435

Switch Actuator

$

$

Not available

31

MTD 736-0160

Fl-Wash. .531" I.D. x .930" O.D. x .050

$3.99

$

In Stock, only 2 left!

0

32

MTD 736-0158

Fl-Wash. 518" I.D.

$4.49

$

In Stock, only 1 left!

0

33

MTD 712-0242

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

34

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

35

MTD 710-0604

Hex Wash. Hd. Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

36

MTD 15653

Belt Guard Ass'y.

$

$

Currently unavailable

37

MTD 08253

Bearing Housing 1.85" I.D.
(Superseded to 08253B)

$17.99

$

In Stock, only 3 left!

0

38

MTD 741-0919

Ball Brg. .787" I.D. x 1.85" O.D. x .551
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

39

MTD 15628

26" Deck Ass'y.

$

$

Currently unavailable

MTD 15630

26" Deck Ass'y. Comp.

Note: (Service Only)

$

$

Currently unavailable

40

MTD 714-0388

#61 Hi-Pro Key 3/16" x 5/8" Dia.
(Superseded to 914-0388)

$7.49

$

In Stock, Qty 8

0

41

MTD 711-0405

Blade Spindle

$

$

Not available

42

MTD 714-0365

#6 Hi-Pro Key 5/32" x 518" Dia.

$4.99

$

Usually ships in 3-6 days

0

43

MTD 13703

Bearing Shield

$

$

Not available

44

MTD 742-0147

26" Blade
(Superseded to 942-0147)

$

$

Not available

45

MTD 736-0217

L-Wash. 3/8" I.D. Heavy Duty

$3.99

$

In Stock, Qty 13

0

46

MTD 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. (Grade 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

47

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

$3.99

$

In Stock, Qty 11

0

48

MTD 10769

Blade Adapter Kit

$

$

Not available

49

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

50

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

51

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

53

MTD 750-0142

Spacer.836" I.D. x 1.01" O.D. x .320
(Superseded to 950-0142)

$

$

Not available

54

MTD 747-0428

Deck Link 3.9" Lg.

$

$

Currently unavailable

55

MTD 15658

Belt Guard Plate Ass'y.

$

$

Currently unavailable

56

MTD 732-0157

Spring .38" O.D. x 3.25" Lg.

$13.99

$

Usually ships in 3-6 days

0

58

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

59

MTD 11396

Adapter Ass'y.-Chute

$

$

Not available

60

MTD 11634

Chute Deflector Ass'y. Comp.

$

$

Not available

61

MTD 732-0261

Torsion Spring

$

$

Not available

62

MTD 15626

Lower Inside Belt Guard
(Superseded to 15626B-0637)

$

$

Not available

63

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

64

MTD 727-0290

Brake Cable Ass'y.
(Superseded to 727-0290A)

$11.99

$

Usually ships in 3-6 days

0

65

MTD 10426

Belt Keeper Ass'y.

$

$

Not available

66

MTD 710-0604

Hex Wash. Hd. Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

67

MTD 710-0322

Hex Sems Bclt 5/16-18 x 1.00" Lg.

$

$

Not available

68

MTD 710-0623

Hex Wash. Hd. 3/8" x .75" Lg.

$3.99

$

In Stock, Qty 10

0

69

MTD 16053

Blade Brake Brkt. Ass'y.

$

$

Not available

70

MTD 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

71

MTD 736-0142

Fl-Wash. 1/4" I.D. x .50" O.D.

$4.49

$

Usually ships in 3-6 days

0

72

MTD 711-0701

Clevis Pin 1/4" x 1/2"
(Superseded to 911-0701)

$6.49

$

In Stock, only 1 left!

0

73

MTD 732-0440

Extension Spring .99" O.D. x 14.2" Lg.

$26.99

$

Usually ships in 3-6 days

0

74

MTD 750-0515

Sleeve .511" I.D. x .70" x .37" Lg.

$4.49

$

In Stock, Qty 7

0

75

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

76

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

77

MTD 736-0300

Fl-Wash. .385" I.D. x .87" O.D. x .06

$3.99

$

In Stock, Qty 20+

0

78

MTD 15568

Blade Engagement Lever Ass'y.
(Superseded to 15568A)

$

$

Not available

79

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.*

$3.99

$

In Stock, only 1 left!

0

80

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

81

MTD 720-0143

Grip

$

$

Not available

82

MTD 15644

Deck Drive Control Brkt. Ass'y.

$

$

Not available

83

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

84

MTD 15600

Deck Link Ass'y.-Rear

$

$

Currently unavailable

85

MTD 710-0866

Deck Adj. Scr. 3/8-16 Thd.

$

$

Not available

86

MTD 736-0300

Fl-Wash. .385" I.D. x .87" O.D. x .06

$3.99

$

In Stock, Qty 20+

0

87

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00"

$3.99

$

In Stock, only 1 left!

0

88

MTD 15609

Deck Lift Brkt. Ass'y.-R.H.

$

$

Not available

89

MTD 715-0114

Spring Pin Spir. 1/4" Dia. x 1.50" Lg.

$8.49

$

In Stock, Qty 9

0

90

MTD 738-0550

Rear Height Adj. Shaft

$

$

Not available

91

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

92

MTD 715-0134

Spring Pin Spir. 3/16" Dia. x 1.50" Lg.
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

93

MTD 714-0104

Int. Cot. Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0
