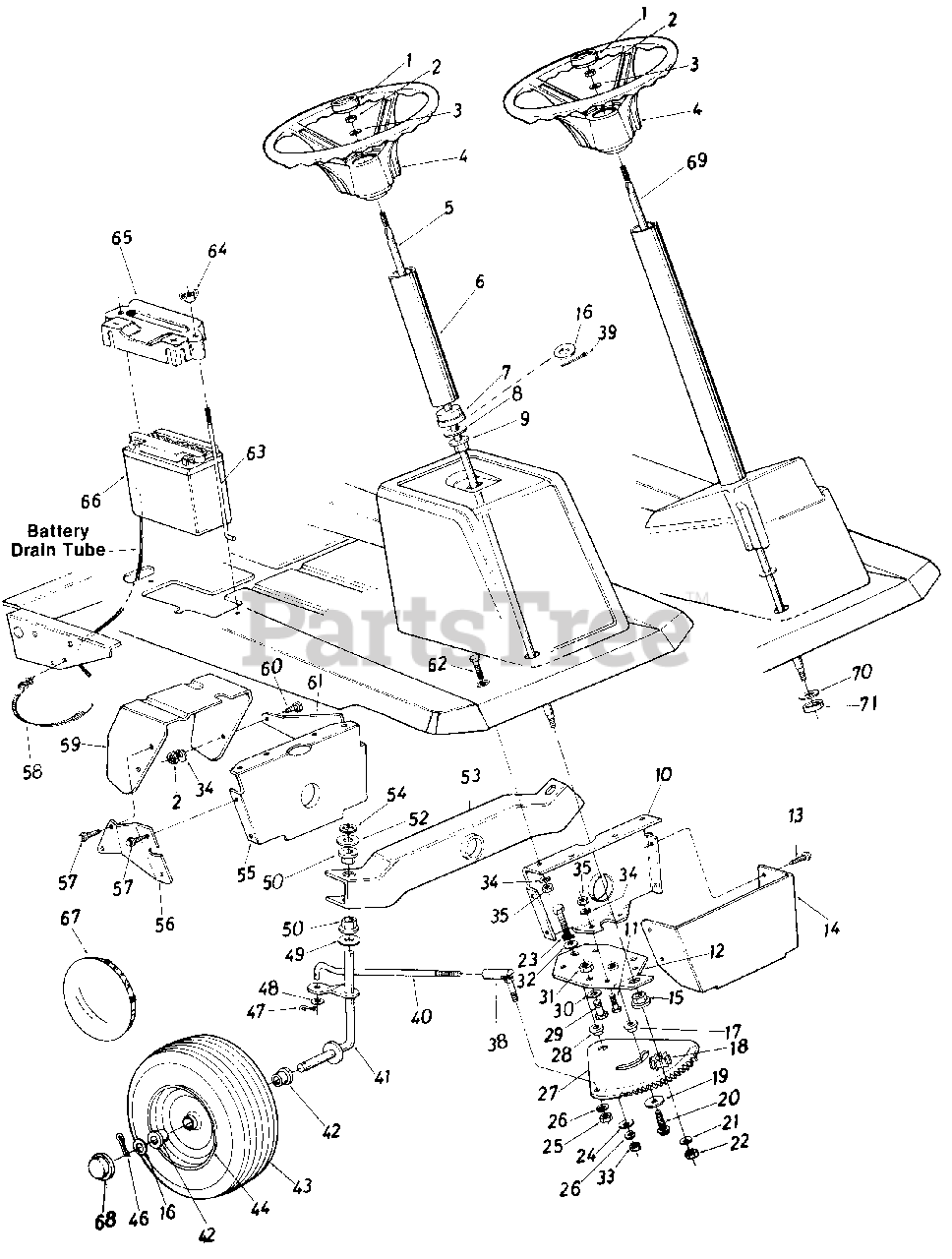

135-504-032 - Lawnflite Lawn Tractor (1985) (Pro Hardware) > Parts Diagrams (6) > Parts13

  • Title
731-0220

1

Steering Wheel Cap

Part# 731-0220 (Superseded to 931-0220)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.87

712-0267

2

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

736-0242

3

Bell-Wash. .345" I.D. x .88" O.D.

Part# 736-0242

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

731-0219

4

Steering Wheel Ass'y.

Part# 731-0219

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $36.00

738-0537

5

Steering Shaft

Part# 738-0537

OEM Warranty Repair Part for MTD

Not available

750-0568

6

Steering Tube Spacer (Chrome)

Part# 750-0568

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available SPACER-STE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

731-0651

7

Steering Tube Spacer

Part# 731-0651 (Superseded to 931-0651)

OEM Warranty Repair Part for MTD

Not available

736-0187

8

Fl-Wash. .640" I.D. x 1.25" O.D.

Part# 736-0187

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

741-0225

9

Hex Flange Bearing

Part# 741-0225 (Superseded to 941-0225)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.81

15613

10

Pivot Bar Bracket

Part# 15613

OEM Warranty Repair Part for MTD

Not available

710-0118

11

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

15614

12

Steeri ng Gear Support Brkt.

Part# 15614

OEM Warranty Repair Part for MTD

Not available

710-0776

13

Hex Wash. Hd. AB-Tap Scr. 1/4 x.62" Lg.

Part# 710-0776 (Superseded to 710-0896)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

15608

14

Steering Gear Cover

Part# 15608

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

No Longer Available

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Not available

OLD CUB YELLOW (0498)

No Longer Available

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

POWDER BLACK (0637)

No Longer Available COVER-STEE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

No Longer Available

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

TECH GRAY (0648)

No Longer Available

Part# TECH GRAY (0648)

OEM Warranty Repair Part for MTD

Not available

RED METALLIC (0650)

No Longer Available

Part# RED METALLIC (0650)

OEM Warranty Repair Part for MTD

Not available

741-0225

15

Hex Flange Bearing

Part# 741-0225 (Superseded to 941-0225)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.81

736-0285

16

Fl-Wash. .640" I.D. x 1.62" O.D.

Part# 736-0285

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.84

738-0541

17

Shoulder Spacer .622 Dia. x .218

Part# 738-0541

OEM Warranty Repair Part for MTD

Not available

748-0290

18

Steering Pinion Gear

Part# 748-0290 (Superseded to 948-0290)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.24

736-0320

19

Fl-Wash. .385" I.D. x 1.38" O.D.

Part# 736-0320

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

710-0502

20

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.

Part# 710-0502 (Superseded to 710-0502A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.24

736-0275

21

Fl-Wash. .34" I.D. x .68" O.D.

Part# 736-0275 (Superseded to 936-0275)

OEM Warranty Repair Part for MTD

Not available

712-0123

22

Hex Nut 5/16-24 Thd.

Part# 712-0123 (Superseded to 912-3057)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.40

710-0191

23

Hex Bolt 3/8-24 x 1.25" Lg. (Grade 5)

Part# 710-0191

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.97

736-0320

24

Fl-Wash. .385" I.D. x 1.38" O.D.

Part# 736-0320

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

712-0241

25

Hex Nut 3/8-24 Thd.*

Part# 712-0241

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.86

736-0169

26

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.47

717-0472

27

Steering Gear Segment

Part# 717-0472 (Superseded to 917-0472A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $61.79

738-0541

28

Shoulder Spacer .622" Dia. x .218

Part# 738-0541

OEM Warranty Repair Part for MTD

Not available

710-0689

29

Hex Bolt (Nylon) 1/2-13 x .75" Lg.

Part# 710-0689

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

736-0160

30

Fl-Wash. .530" I.D. x .930" O.D.

Part# 736-0160 (Superseded to 936-0160)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.85

712-0206

31

Hex Nut 1/2-13 Thd.

Part# 712-0206 (Superseded to 912-0206)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.89

736-0105

32

Bell-Wash. .385" I.D. x .88"

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

712-0241

33

Hex Nut 3/8-24 Thd.

Part# 712-0241

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.86

736-0119

34

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0267

35

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

723-0156

38

Bal I J oi nt Ass'y. 3/8-24 Thd.

Part# 723-0156 (Superseded to 923-0156)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $11.40

714-0115

39

Cotter Pin 1/8" Dia. x 1.00" Lg.

Part# 714-0115 (Superseded to 914-0115)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.58

747-0417

40

Steering Tie Rod

Part# 747-0417

OEM Warranty Repair Part for MTD

Not available

15616

41

Front Axle Ass'y.-R.H.

Part# 15616 (Superseded to 983-0012)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $98.84

15617

Front Axle Ass'y.-L.H.

Part# 15617 (Superseded to 983-0011)

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $98.84

741-0313

42

Flange Bearing .632" I.D.

Part# 741-0313 (Superseded to 741-0487C)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.04

43

Front Wheel Ass'y. Comp.

Part#

Not available

734-1044

Wheel Ass'y. Comp.-11 x 4.0

Part# 734-1044

OEM Warranty Repair Part for MTD

Not available

734-1184

Wheel Ass"y. Comp.-10.5 x 4.0

Part# 734-1184 (Superseded to 634-0147)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $117.19

734-1000

Wheel Ass'y. Comp.-10.5 x 3.5

Part# 734-1000

OEM Warranty Repair Part for MTD

Not available

44

Front Wheel Rim Only

Part#

Not available

734-1042

Rim Only-11 x 4.0

Part# 734-1042

OEM Warranty Repair Part for MTD

Currently unavailable

734-1183

Rim Only-10.5 x 4.0

Part# 734-1183

OEM Warranty Repair Part for MTD

Not available

Rim Only-10.5 x 3.5

Part#

Not available

714-0470

46

Cotter Pin 1/8" Dia. x 1.25" Lg.*

Part# 714-0470 (Superseded to 914-0470)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.85

714-0115

47

Cotter Pin 1/8" Dia. x 1.00" Lg.*

Part# 714-0115 (Superseded to 914-0115)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.58

736-0300

48

Fl-Wash. .385" I.D. x .87" O.D.

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

736-0156

49

Fl-Wash. .635" I.D. x 1.12" O.D.

Part# 736-0156

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.91

741-0225

50

Hex Flange Bearing

Part# 741-0225 (Superseded to 941-0225)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.81

736-0156

52

Fl-Wash. .635" I.D. x 1.12" O.D.

Part# 736-0156

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.91

15610

53

Pivot Bar Ass'y.

Part# 15610 (Superseded to 15610C-0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $145.87

726-0159

54

Speed Nut 5/8" I.D.

Part# 726-0159 (Superseded to 926-0159B)

OEM Warranty Repair Part for MTD

Not available

15613

55

Pivot Bar Bracket

Part# 15613

OEM Warranty Repair Part for MTD

Not available

15694

56

Bracket Reinforcement-R.H.

Part# 15694

OEM Warranty Repair Part for MTD

Not available

710-0776

57

Hex Wash. Hd. AB-Tap Scr. 1/4 x.62" Lg.

Part# 710-0776 (Superseded to 710-0896)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

726-0154

58

Cable Tie

Part# 726-0154 (Superseded to 926-0154)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.08

15562

59

Clutch-Brake Pedal Ass'y.

Part# 15562

OEM Warranty Repair Part for MTD

Not available

710-0118

60

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

15699

61

Bracket Reinforcement-L.H.

Part# 15699

OEM Warranty Repair Part for MTD

Not available

710-0118

62

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

711-0222

63

Battery Hold Down Rod

Part# 711-0222 (Superseded to 911-0222A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.31

712-0113

64

Wing Nut Solid 1/4-20 Thd.

Part# 712-0113 (Superseded to 912-0113)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

731-0708

65

Battery Hold Down Cover

Part# 731-0708

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.55

725-0514

66

12V Battery

Part# 725-0514 (Superseded to 753-0607)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $128.58

734-1002

67

Chrome Hub Cap

Part# 734-1002

Note: (Optional)

OEM Warranty Repair Part for MTD

Not available

731-0484

68

Plastic Hub Cap

Part# 731-0484 (Superseded to 931-0484A)

Note: (Optional)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.41

16042

69

Steering Shaft Assy.

Part# 16042

OEM Warranty Repair Part for MTD

Currently unavailable

736-0187

70

Fl-Wash. .62" I.D. x 1.50" O.D.

Part# 736-0187

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

750-0532

71

Spacer (Plastic)

Part# 750-0532 (Superseded to 950-0532)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.03
