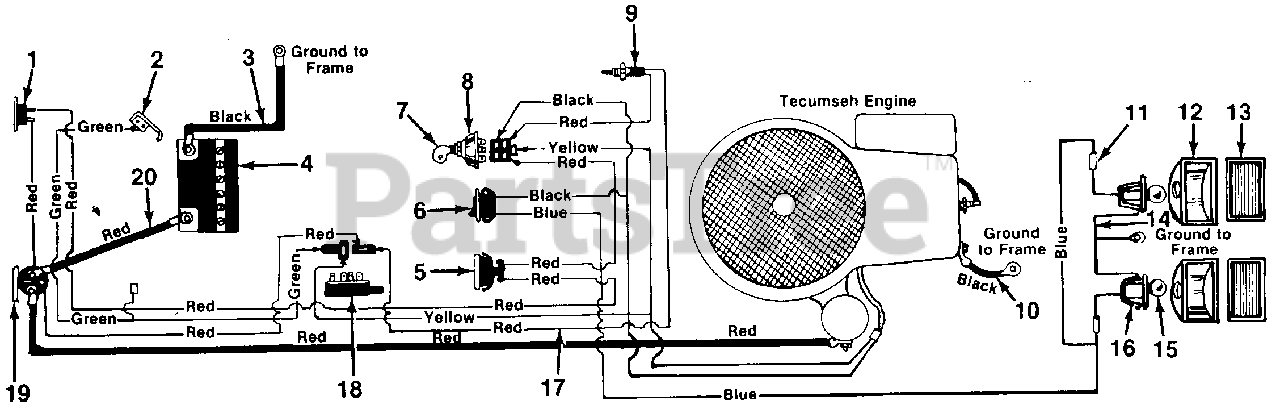

135-666-000 - MTD Lawn Tractor Accessory (1985) Electrical Parts Diagram

Lawn Tractor Accessory

Electrical Parts Diagram

  • Title

1

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$35.99

$

In Stock, only 1 left!

0

2

MTD 725-0759

Spring Switch
(Superseded to 753-0579)

Note: (Reverse Safety)

$

$

Not available

3

MTD 725-0975

Ground Wire

Note: (Black- Negative)

$

$

Not available

4

MTD 725-0514

12 Volt Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

5

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

Usually ships in 3-6 days

0

6

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

7

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

8

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 17

0

9

MTD 725-0268

Safety Switch
(Superseded to 925-0268)

Note: (Clutch)

$39.99

$

Usually ships in 3-6 days

0

10

MTD 725-0976

Ground Wire 7.25" Lg. (Black-Engine)
(Superseded to 725-0976A)

$

$

Not available

11

MTD 725-0717

Tab Receptacle

$

$

Currently unavailable

12

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

13

MTD 731-0706

Lens
(Superseded to 931-0706)

$

$

Not available

14

MTD 725-0916

Ground Wire
(Superseded to 725-0916A)

$

$

Not available

15

MTD 725-0963

Lam p
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

16

MTD 725-1058

Lamp Socket
(Superseded to 925-1058A)

$10.99

$

In Stock, Qty 7

0

17

MTD 725-1007

Wire Harness

$

$

Not available

18

MTD 725-0803

Safety Switch
(Superseded to 725-0803B)

Note: (P.T.O.)

$31.99

$

In Stock, Qty 8

0

19

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$32.99

$

In Stock, Qty 5

0

20

MTD 725-0150

Electric Wire

Note: (Red-Positive)

$

$

Not available
