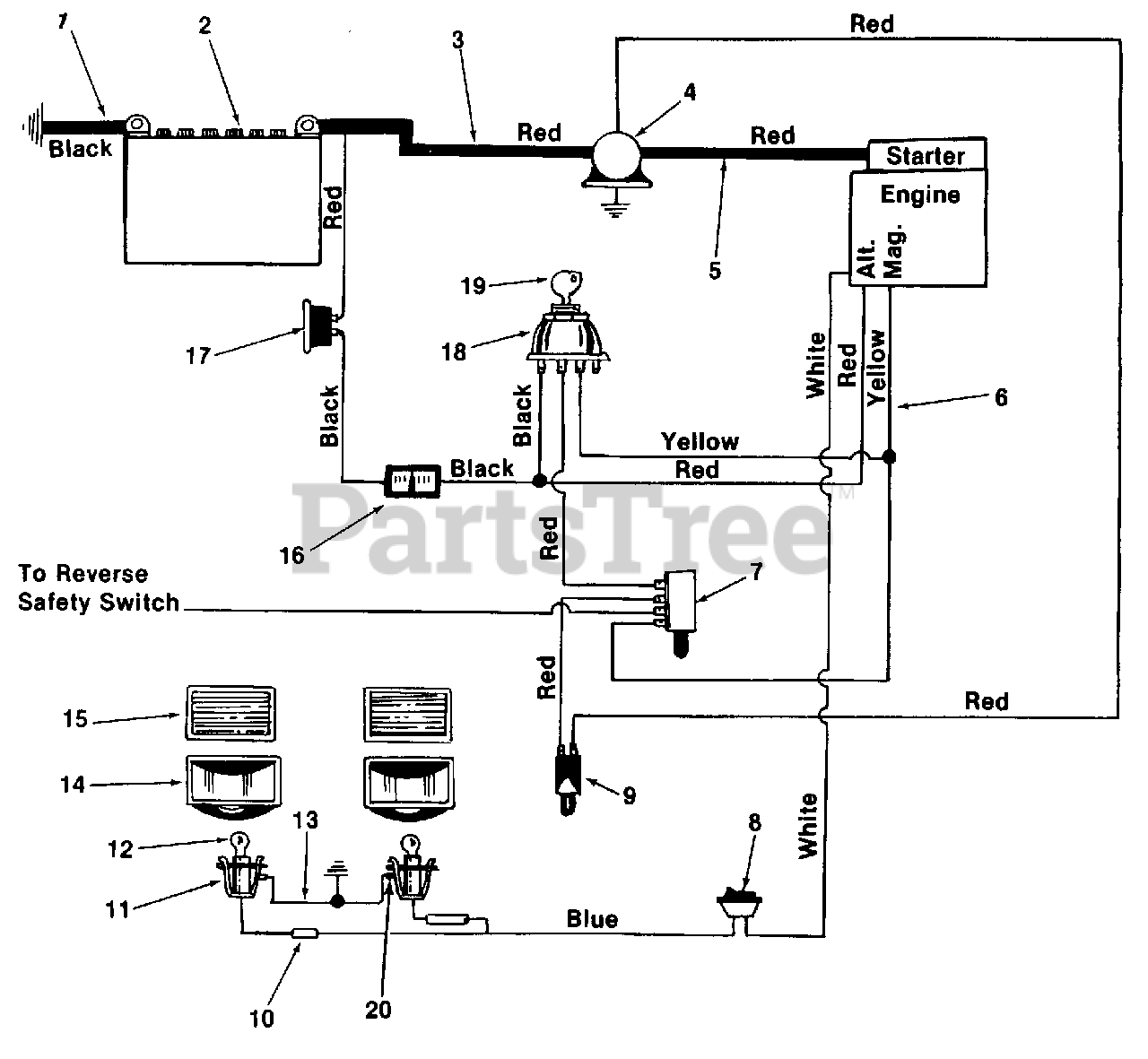

135-723-000 - MTD Lawn Tractor (1991) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title
1

MTD 725-0996

Electric Wire

Note: (Black Negative)

$

$

Not available

2

MTD 725-0453

1 2V-Battery

$

$

Not available

3

MTD 725-0561

Electric Wire
(Superseded to 629-0705)

Note: (Red Positive)

$

$

Not available

MTD 725-0564

Electric Wire

Note: (Red Positive)

$

$

Currently unavailable

4

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$32.99

$

In Stock, Qty 6

0

5

MTD 725-0563

Electric Wire

Note: (16 H.P.)

$

$

Currently unavailable

MTD 725-0564

Electric Wire

Note: (11 H.P.)

$

$

Currently unavailable

6

MTD 725-1027

Wire Harness

Note: (16 H.P.)

$

$

Currently unavailable

MTD 725-1028

Wire Harness

Note: (11 H.P.)

$

$

Not available

7

MTD 725-0465

Safety Switch
(Superseded to 925-0465A)

Note: (P.T.O.)

$28.99

$

In Stock, only 3 left!

0

8

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 6

0

9

MTD 725-0268

Safety Switch
(Superseded to 925-0268)

Note: (Clutch)

$39.99

$

Usually ships in 3-6 days

0

10

MTD 725-0717

Tab Receptacle

$

$

Currently unavailable

11

MTD 725-0964

Socket
(Superseded to 925-1058A)

$10.99

$

In Stock, Qty 8

0

12

MTD 725-0963

Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

13

MTD 725-0916

Ground Wire
(Superseded to 725-0916A)

$

$

Not available

14

MTD 731-0705

Head Light Housing
(Superseded to 931-0705)

$

$

Not available

15

MTD 731-0706

Lens
(Superseded to 931-0706)

$

$

Not available

16

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 1 left!

0

17

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$35.99

$

In Stock, only 1 left!

0

18

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 20+

0

19

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 15

0

20

MTD 726-0226

Push on Ground Clip

$

$

Not available
