135-9607 - Exmark Turf Sprayer Attachment (SN: 413950474 & Above) (Rev A) (2023) Spray Boom Assembly Parts Diagram

Turf Sprayer Attachment

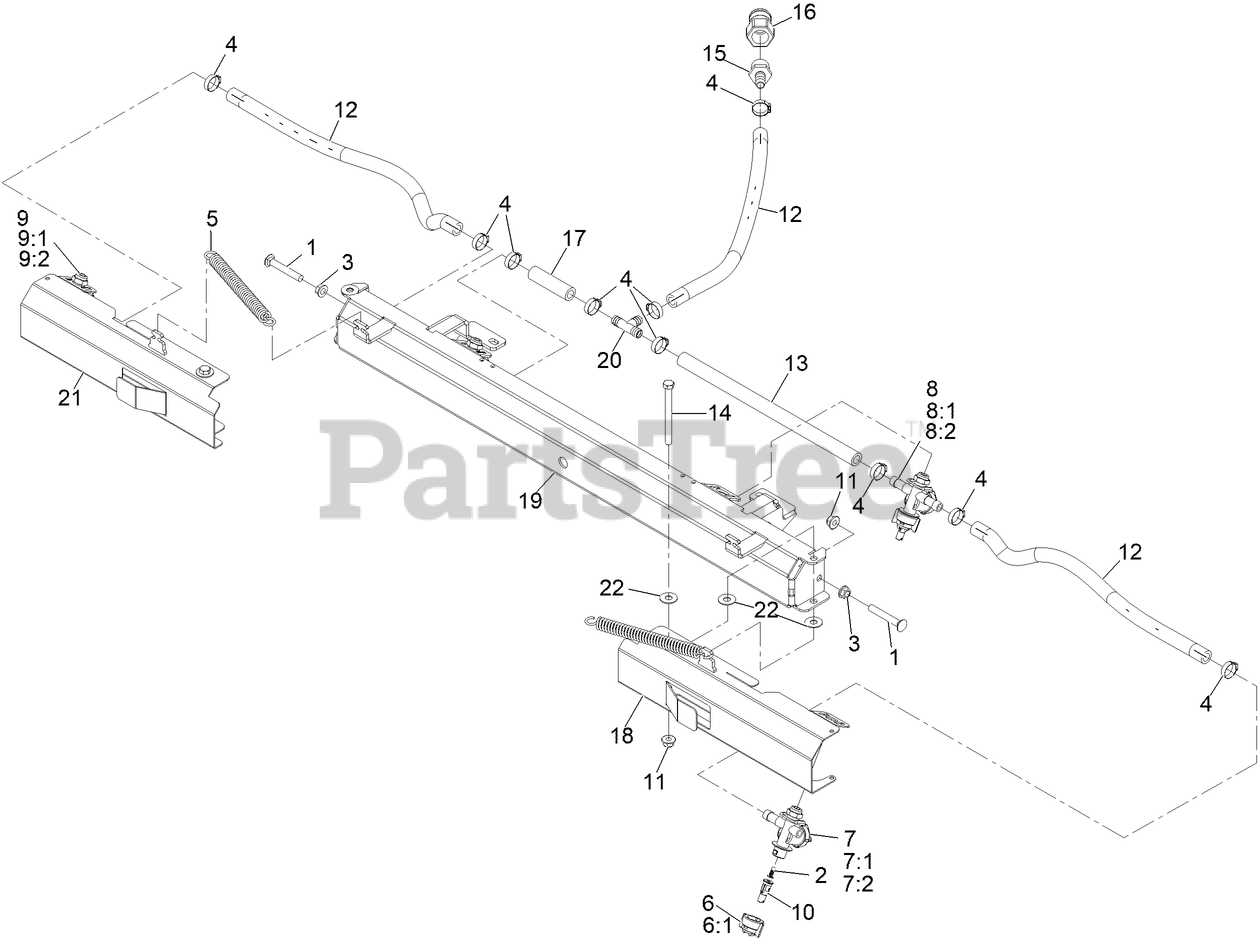

Spray Boom Assembly Parts Diagram

  • Title

1

Exmark 126-0702

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

2

Exmark 126-3943

STRAINER-NOZZLE, 50M 5PSI

$21.99

$

In Stock, Qty 20+

0

3

Exmark 135-2882

NUT-HF

$2.99

$

In Stock, Qty 10

0

4

Exmark 135-5692

CLAMP-OETIKER, 167

$1.99

$

In Stock, only 2 left!

0

5

Exmark 135-5780

SPRING-EXTENSION

$25.99

$

In Stock, only 1 left!

0

6

Exmark 135-5781

CAP-NOZZLE

$8.49

$

In Stock, Qty 15

0

6:1

Exmark 40998

SEAT-GASKET

$1.49

$

In Stock, Qty 20+

0

7

Exmark 135-5788

BODY-NOZZLE, LEFT

$10.99

$

Usually ships in 3-6 days

0

7:1

Exmark 95-9193

CAP-DIAPHRAM

$9.99

$

Usually ships in 3-6 days

0

7:2

Exmark 142-1457

DIAPHRAGM FOR CHECK VALVE

$5.99

$

In Stock, only 1 left!

0

8

Exmark 135-5789

BODY-NOZZLE, CENTER

$10.99

$

In Stock, only 4 left!

0

8:1

Exmark 142-1457

DIAPHRAGM FOR CHECK VALVE

$5.99

$

In Stock, only 1 left!

0

8:2

Exmark 95-9193

CAP-DIAPHRAM

$9.99

$

Usually ships in 3-6 days

0

9

Exmark 135-5790

BODY-NOZZLE, RIGHT

$10.99

$

In Stock, only 4 left!

0

9:1

Exmark 146-1020

CAP-SPRAYER NOZZLE
(Superseded to 95-9193)

$9.99

$

Usually ships in 3-6 days

0

9:2

Exmark 146-1021

DIAPHRAGM-SPRAYER NOZZLE
(Superseded to 142-1457)

$5.99

$

In Stock, only 1 left!

0

10

Exmark 142-3308

TIP-SPRAY, 025

$23.99

$

In Stock, Qty 7

0

11

Exmark 135-6110

Nut-Hex Flange

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 135-6297

HOSE-SPRAY

$12.99

$

Usually ships in 3-6 days

0

13

Exmark 135-6299

HOSE-SPRAY

$9.49

$

Usually ships in 3-6 days

0

14

Exmark 135-6310

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

15

Exmark 135-6598

FITTING-STRAIGHT

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 135-6626

ADAPTER-MALE

$7.99

$

In Stock, only 1 left!

0

17

Exmark 135-6644

HOSE-SPRAY

$4.49

$

Usually ships in 3-6 days

0

18

Exmark 135-7194

WING-BOOM LH

$30.99

$

Usually ships in 3-6 days

0

19

Exmark 135-9601

WLD, BOOM, CENTER, ZPLUG

$253.99

$

Usually ships in 3-6 days

0

20

Exmark 138-2751

FITTING-TEE, BARB

$15.99

$

In Stock, Qty 10

0

21

Exmark 142-0267

WING-BOOM RH

$30.99

$

Usually ships in 3-6 days

0

22

Exmark 1126

WASHER-FLAT

$0.99

$

In Stock, Qty 15
