135 e - Husqvarna Chainsaw CYLINDER PISTON Parts Diagram

Chainsaw

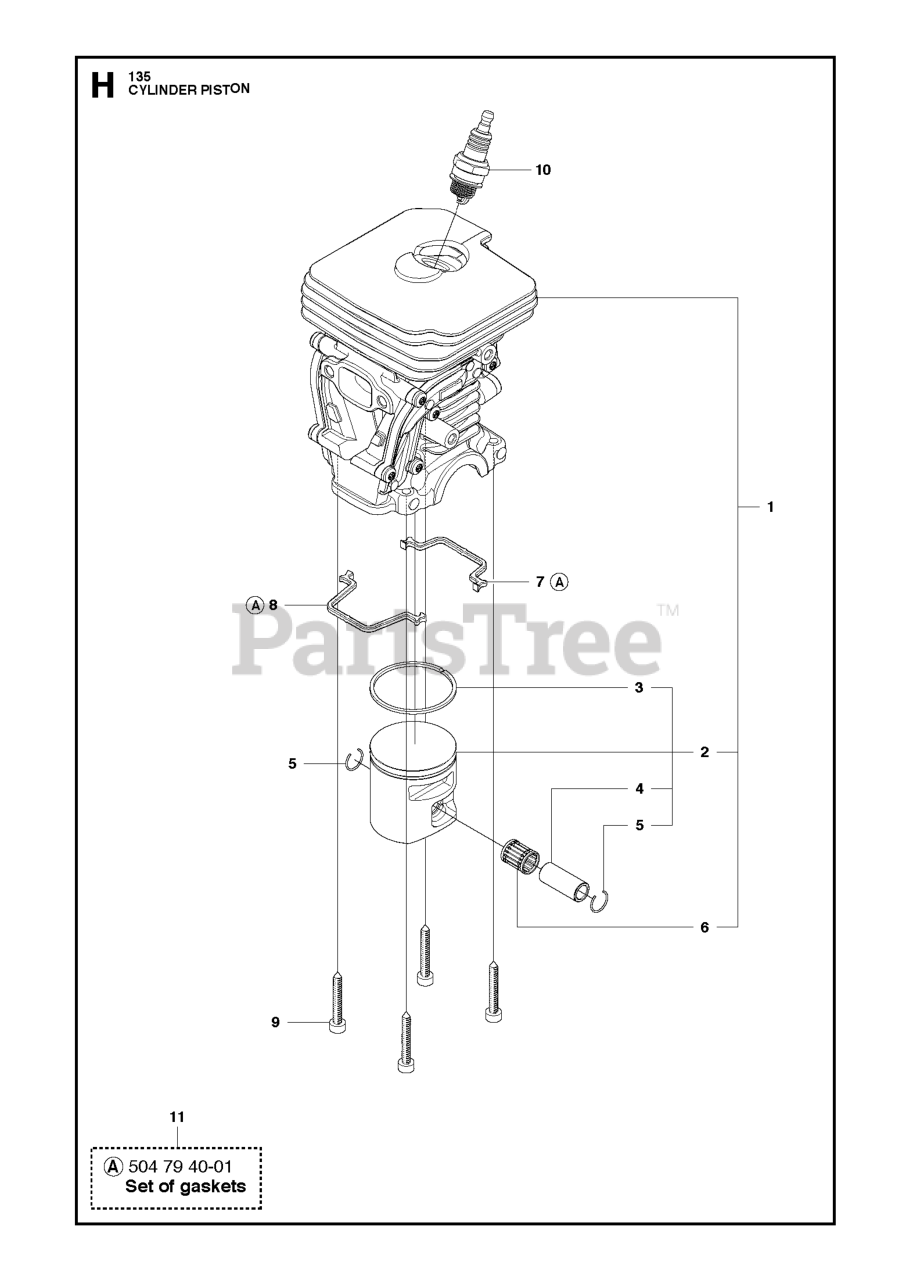

CYLINDER PISTON Parts Diagram

  • Title

6

Husqvarna 503414101

SUPPORT BUSHING

Note: Needle bearing

$24.99

$

In Stock, only 1 left!

0

9

Husqvarna 725533355

SCREW MC6S 5X25

Note: Screw

$6.49

$

In Stock, Qty 20+

0

3

Husqvarna 544405901

PISTON RING

Note: Piston ring

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 737441000

LOCKING RING

Note: Circlip

$6.49

$

In Stock, only 2 left!

0

4

Husqvarna 544406001

PISTON PIN

Note: Piston pin

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 503235111

SPARK PLUG M14X1.25 NGK BPMR7A

Note: Spark plug

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 544396001

GASKET

Note: Gasket, cylinder rear

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 504735102

ASSY, CYLINDER 435 AND 435E
(Superseded to 504735101)

Note: Cylinder assy

$

$

Not available

2

Husqvarna 502625002

PISTON ASSY
(Superseded to 502625007)

Note: Piston assy

$100.99

$

In Stock, only 1 left!

0

8

Husqvarna 544395901

GASKET

Note: Gasket, cylinder front

$4.99

$

In Stock, only 4 left!

0

11

Husqvarna 504794001

GASKET SET

Note: Set of gaskets

$11.99

$

Usually ships in 3-10 days

0
