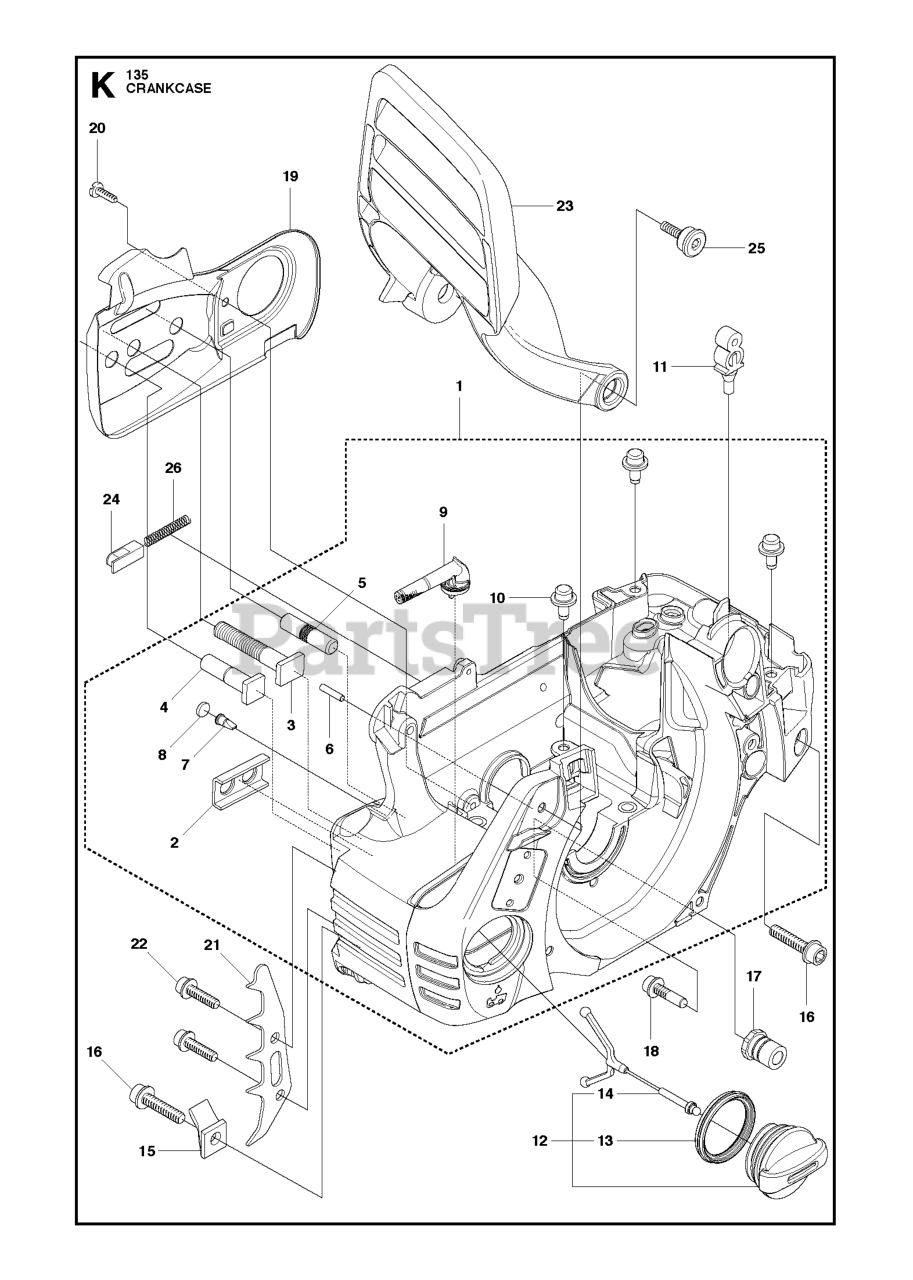

135 - Husqvarna Chainsaw CRANKCASE Parts Diagram

Chainsaw

CRANKCASE Parts Diagram

  • Title

19

Husqvarna 544284601

CHAIN GUIDE PLATE

Note: Chain guide plate

$6.99

$

In Stock, Qty 12

0

1

Husqvarna 544932503

CRANKCASE ASSY
(Superseded to 544932507)

Note: Crankcase assy

$74.99

$

Usually ships in 3-10 days

0

2

Husqvarna 503875802

STIFFENING PLATE

Note: Stiffening plate

$6.99

$

In Stock, Qty 12

0

4

Husqvarna 537334601

BAR BOLT

Note: Bar bolt

$6.99

$

In Stock, Qty 7

0

5

Husqvarna 544036401

BAR BOLT

Note: Bar bolt

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 503217520

SCREW

Note: Screw

$3.49

$

In Stock, Qty 14

0

13

Husqvarna 589241101

SEALING

Note: Gasket

$6.99

$

In Stock, Qty 5

0

21

Husqvarna 544286501

SPIKE INNER

Note: Spike inner

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 503436501

LOCK SPRING

Note: Lock spring

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 503892401

CATCH

Note: Catch

$6.99

$

In Stock, Qty 8

0

25

Husqvarna 503893001

SCREW

Note: Screw

$4.99

$

In Stock, only 3 left!

0

3

Husqvarna 503875402

BAR BOLT

Note: Bar bolt

$6.99

$

In Stock, Qty 17

0

18

Husqvarna 503215103

SCREW IHSCFT

Note: Screw

$3.49

$

In Stock, only 2 left!

0

6

Husqvarna 503240905

PIN

Note: Needle roller

$3.49

$

In Stock, Qty 10

0

9

Husqvarna 544083301

OIL SCREEN

Note: Oil screen

$5.99

$

In Stock, only 2 left!

0

11

Husqvarna 503869301

SUPPORT
(Superseded to 597909701)

Note: Support

$6.99

$

In Stock, only 2 left!

0

10

Husqvarna 544331601

GUIDE PEN

Note: Guide pin

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 503218876

SCREW

Note: Screw

$5.99

$

In Stock, only 3 left!

0

14

Husqvarna 503578901

TANK LOCK

Note: Holder

$5.99

$

In Stock, Qty 10

0

23

Husqvarna 544251501

HAND GUARD

Note: Hand guard

$13.99

$

Usually ships in 3-10 days

0

8

Husqvarna 537403501

PLUG
(Superseded to 537403502)

Note: Filter

$3.49

$

In Stock, Qty 10

0

20

Husqvarna 503217010

SCREW

Note: Screw

$3.49

$

In Stock, Qty 17

0

15

Husqvarna 503886301

CHAIN CATCHER

Note: Chain catcher pin

$5.99

$

In Stock, Qty 5

0

12

Husqvarna 544111203

ASSY TANK CAP GREY
(Superseded to 544111201)

Note: Tank cap assy

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

Note: Check valve

$5.99

$

In Stock, Qty 20+

0

17

Husqvarna 501007601

LATERAL SUPPORT

Note: Lateral support

$3.49

$

In Stock, only 2 left!

0
