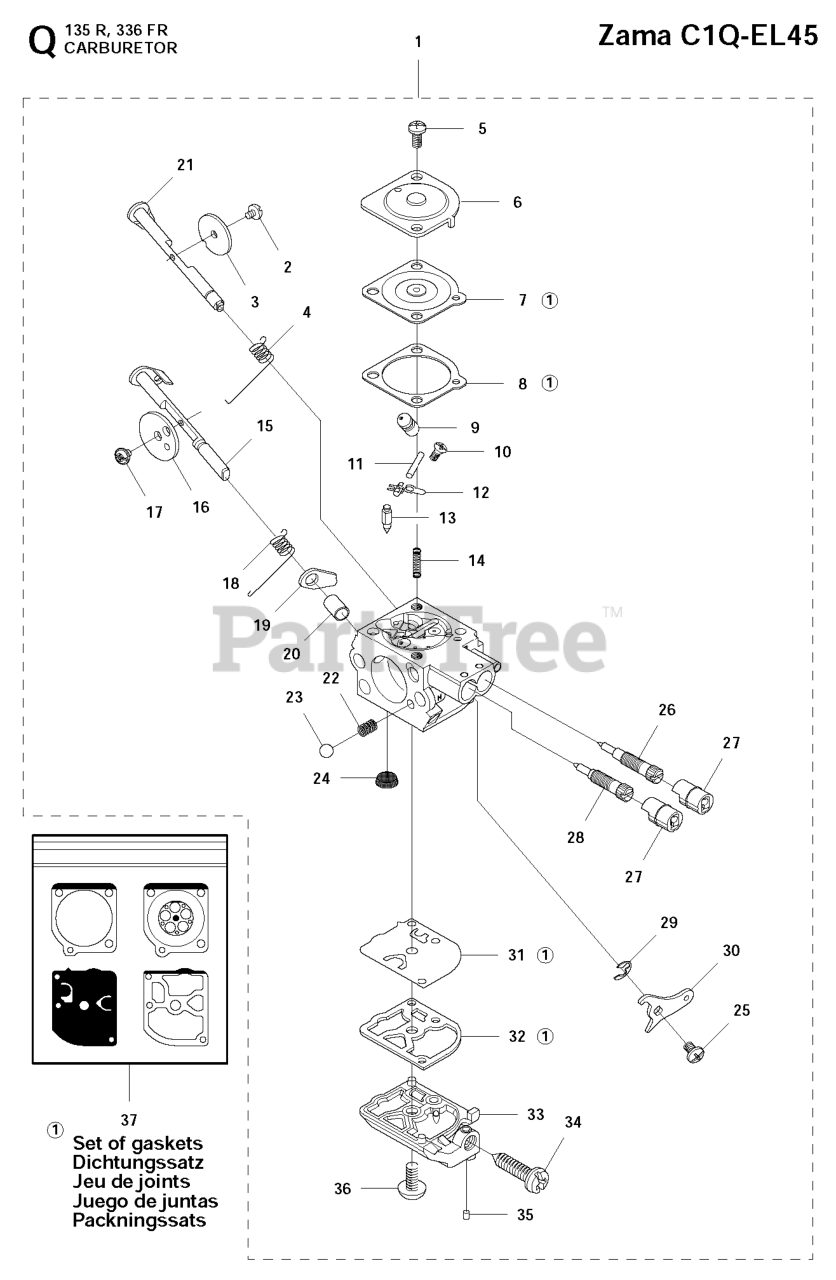

135 R - Husqvarna Brush Cutter CARBURETOR Parts Diagram

Brush Cutter

CARBURETOR Parts Diagram

  • Title

6

Husqvarna 503974301

COVER

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 503481801

SCREW

$3.99

$

In Stock, only 1 left!

0

37

Husqvarna 531004552

GASKET KIT (ZAMA GND39)

Note: Set of gaskets

$10.99

$

Usually ships in 3-10 days

0

28

Husqvarna 537387501

SCREW

$13.41

$

Usually ships in 3-10 days

0

20

Husqvarna 544427001

SLEEVE

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 537020401

GASKET

$4.99

$

In Stock, Qty 10

0

15

Husqvarna 501327101

SHAFT ASSY

$

$

Not available

10

Husqvarna 503480101

SCREW

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 537387301

JET

$15.99

$

Usually ships in 3-10 days

0

16

Husqvarna 537370301

CHOKE CAP

$11.99

$

In Stock, only 3 left!

0

22

Husqvarna 537012601

SPRING

$3.99

$

In Stock, only 1 left!

0

7

Husqvarna 504105601

DIAPHRAGM

$22.99

$

Usually ships in 3-10 days

0

14

Husqvarna 537020301

SPRING
(Superseded to 537273401)

$

$

Not available

23

Husqvarna 537012501

BALL

$3.99

$

In Stock, Qty 7

0

3

Husqvarna 537417201

THROTTLE

$12.99

$

Usually ships in 3-10 days

0

24

Husqvarna 503481301

FUEL INLET SCREEN

$3.99

$

In Stock, only 4 left!

0

36

Husqvarna 503479601

SCREW

$3.99

$

In Stock, Qty 5

0

12

Husqvarna 503665901

LEVER

$3.99

$

In Stock, only 2 left!

0

27

Husqvarna 537417001

LIMITER CAP KIT

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 503479701

INLET NEEDLE

$8.99

$

In Stock, only 2 left!

0

31

Husqvarna 537020001

PUMP DIAPHRAGM

$7.49

$

In Stock, Qty 5

0

11

Husqvarna 503480001

PIN RETAINING SCREW
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

1

Husqvarna 575729001

CARBURETOR

Note: Zama C1Q-EL45

$112.99

$

Usually ships in 3-10 days

0

2

Husqvarna 503479201

SCREW

$3.99

$

In Stock, only 2 left!

0

5

Husqvarna 503480501

SCREW

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 544372601

SPRING

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 537385201

CLIP

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 504102701

SHAFT ASSY

$

$

Not available

19

Husqvarna 544372501

LEVER

$8.99

$

Usually ships in 3-10 days

0

26

Husqvarna 537416901

IDLE SCREW

$15.99

$

Usually ships in 3-10 days

0

32

Husqvarna 537020101

GASKET

$4.99

$

In Stock, Qty 15

0

34

Husqvarna 537020701

SCREW

$14.99

$

In Stock, only 1 left!

0

33

Husqvarna 537020201

COVER

$34.99

$

Usually ships in 3-10 days

0

4

Husqvarna 544372401

RETURN SPRING

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 503479001

SCREW

$3.99

$

In Stock, Qty 11

0

30

Husqvarna 576270201

THROTTLE LEVER

$

$

Not available

35

Husqvarna 503481101

PLUG

$10.99

$

Usually ships in 3-10 days

0
