13504-8 - MTD Lawn Tractor (1988) 30" Parts Diagram

Lawn Tractor

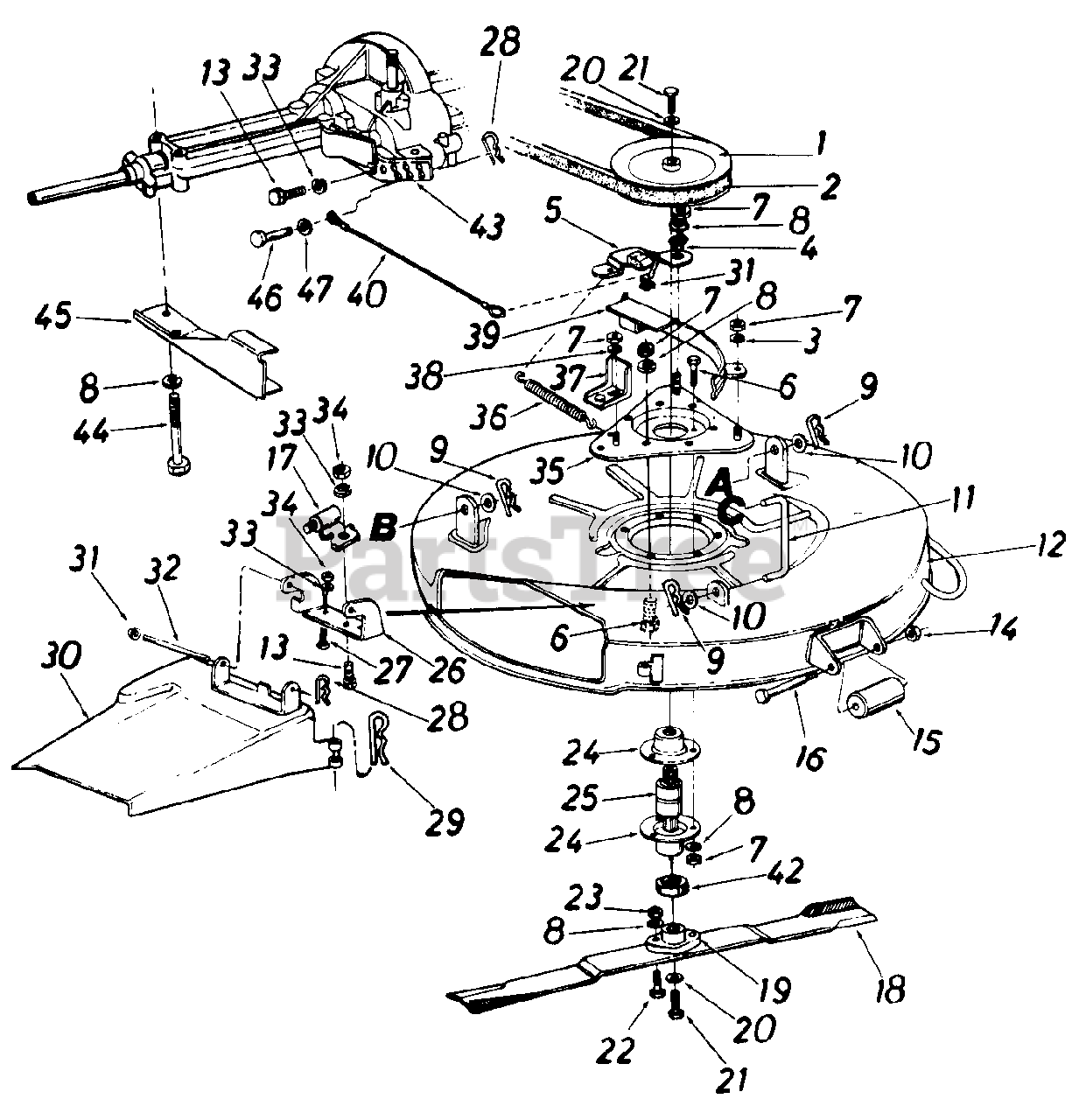

30" Parts Diagram

  • Title
1

MTD Part# 756-0291

Deck Pulley 7.00" O.D.
Usually ships same day

Not available

$

$

2

MTD Part# 754-0264

"V"-Belt 1/2 " X 52" Lg.
(Superseded to 954-0264)
Usually ships in 1 day

$

$43.92

0

3

MTD Part# 736-0219

Belleville Washer
(Superseded to 936-0219)
Usually ships in 1 day

$

$3.06

0

4

MTD Part# 748-0234

Shoulder Spacer
Usually ships in 1 day

$

$3.10

0

5

MTD Part# 16053

Blade Brake Brkt. Ass'y.
Usually ships same day

Not available

$

$

6

MTD Part# 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

7

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

8

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

9

MTD Part# 714-0145

Intern. Cotter Pin 1/2" Dia.
(Superseded to 914-0145)
Usually ships same day

Not available

$

$

10

MTD Part# 736-0160

Fl-Wash. .531" I.D. x .930"
(Superseded to 936-0160)
Usually ships in 1 day

$

$3.09

0

11

MTD Part# 747-0428

Deck Link 3.9" Lg.
Usually ships same day

Currently unavailable

$

$

12

MTD Part# 15620

30" Deck Ass'y.
Usually ships same day

Currently unavailable

$

$

13

MTD Part# 710-0258

Hex Bolt 1/4-20 X .62" Lg.
(Superseded to 710-0751)
Usually ships in 1 day

$

$2.87

0

14

MTD Part# 712-0798

Hex Nut 3/8-16 Thd.
Usually ships in 1 day

$

$3.06

0

15

MTD Part# 731-0397

Skid Roller
Usually ships same day

Currently unavailable

$

$

16

MTD Part# 738-0114

Shoulder Bolt .498" Dia. x 4.75"
Usually ships same day

Not available

$

$

17

MTD Part# 725-0269

Safety Switch
(Superseded to 925-0269)
Usually ships same day

Not available

$

$

18

MTD Part# 742-0280

30" Blade
Usually ships same day

Not available

$

$

19

MTD Part# 748-0235

Blade Adapter
Usually ships in 1 day

$

$16.65

0

20

MTD Part# 736-0217

L-Wash. 3/8" I.D. H.D.
(Superseded to 936-0217)
Usually ships in 1 day

$

$3.06

0

21

MTD Part# 710-0180

Hex Bolt 3/8-24 x .75" Lg.
Usually ships in 1 day

$

$4.76

0

22

MTD Part# 710-0888

Hex Bolt 5/16-24 x 1.00"
Usually ships in 1 day

$

$3.06

0

23

MTD Part# 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)
Usually ships in 1 day

$

$4.76

0

24

MTD Part# 12724

Housing Bearing Spindle
Usually ships same day

Not available

$

$

25

MTD Part# 741-0211

Blade Spindle
Usually ships same day

Not available

$

$

26

MTD Part# 15226

Deck Hinge Brkt.
Usually ships same day

Not available

$

$

27

MTD Part# 710-0134

Carriage Bolt 1/4-20 x .62"
Usually ships in 1 day

$

$2.98

0

28

MTD Part# 714-0104

Intern. Cotter Pin 5/16" Dia.
(Superseded to 914-0104)
Usually ships in 1 day

$

$3.09

0

29

MTD Part# 714-0174

Cotter Pin
Usually ships same day

Not available

$

$

30

MTD Part# 15567

Chute Deflector Ass'y.
Usually ships same day

Not available

$

$

31

MTD Part# 726-0106

Cap Speed Nut 1/4" Rod
(Superseded to 926-0106)
Usually ships same day

Not available

$

$

32

MTD Part# 747-0303

Hinge Pin
Usually ships same day

Not available

$

$

33

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

34

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

35

MTD Part# 15647

Spindle Mtg. Bracket Ass'y.
Usually ships same day

Currently unavailable

$

$

36

MTD Part# 732-0157

Extension Spring .38" O.D. x 3.25" Lg.
Usually ships in 5 to 10 days

$

$10.64

0

37

MTD Part# 10426

Belt Keeper Ass'y.
Usually ships same day

Not available

$

$

38

MTD Part# 736-0242

Belleville Wash. 5/16" I.D.
Usually ships in 1 day

$

$3.00

0

39

MTD Part# 15627

Belt Guard
Usually ships same day

Not available

$

$

40

MTD Part# 727-0296

Brake Cable Ass'y.
Usually ships same day

Not available

$

$

42

MTD Part# 12944

Bearing Guard
Usually ships same day

Not available

$

$

43

MTD Part# 15626

Lower Inside Belt Guard
(Superseded to 15626B-0637)
Usually ships same day

Not available

$

$

44

MTD Part# 710-0378

Hex Bolt 5/16-18 x 2.5"
Usually ships in 5 to 10 days

$

$3.29

0

45

MTD Part# 15625

Lower Outside Belt Guard
Usually ships same day

Not available

$

$

46

MTD Part# 711-0701

Clevis Pin 1/4" x 1/2"
(Superseded to 911-0701)
Usually ships in 5 to 10 days

$

$4.81

0

47

MTD Part# 736-0142

Fl-Wash. 1/4" I.D. x .50" O.D.
(Superseded to 936-0142)
Usually ships in 1 day

$

$3.18

0

MTD Part# 15640

30" Deck Ass'y. Comp.

Note: (Service Only)

Usually ships same day

Not available

$

$
