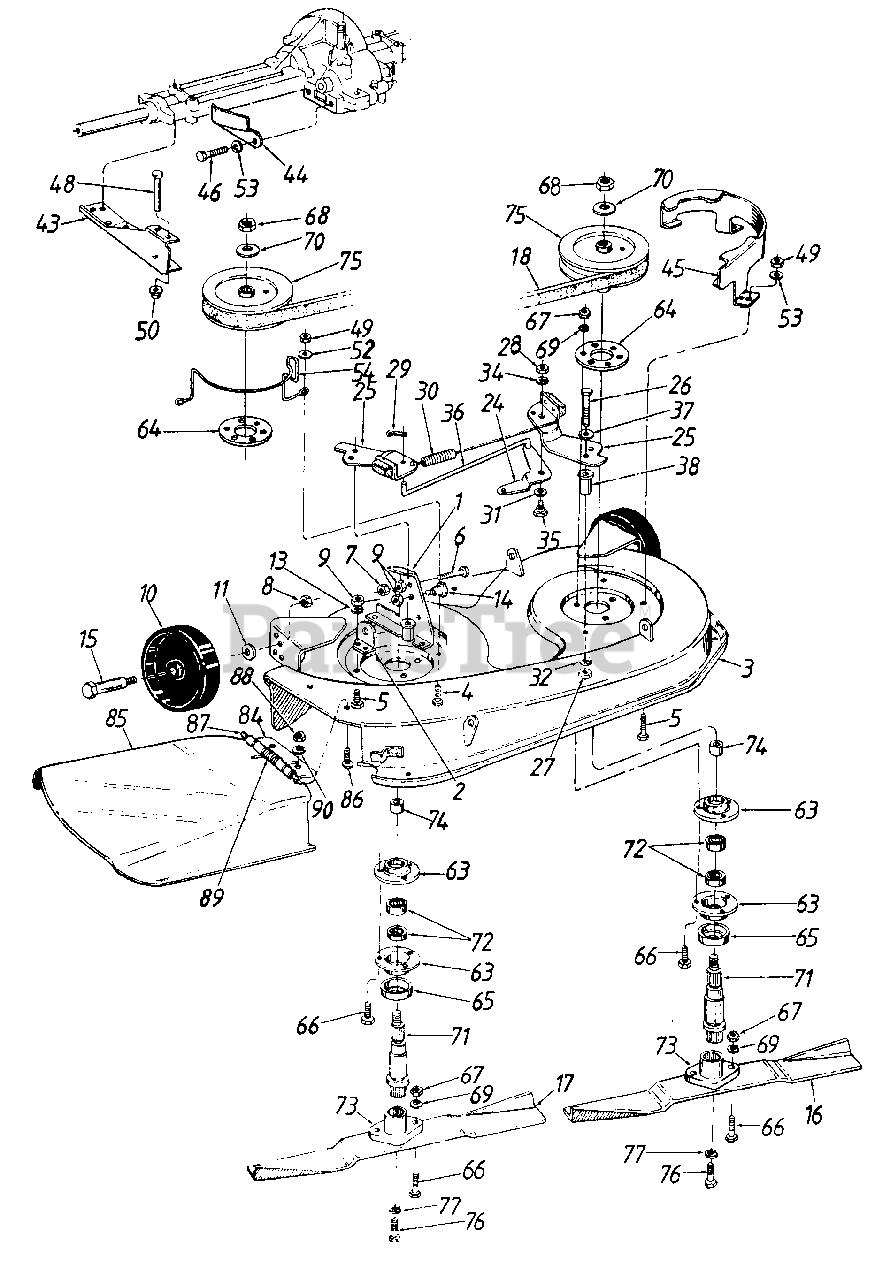

13518-7 - MTD Lawn Tractor (1987) 32" Parts Diagram

Lawn Tractor

32" Parts Diagram

  • Title
1

MTD Part# 17094

Deck Disengagement Brkt.
Usually ships same day

Not available

$

$

2

MTD Part# 17096

Rear Deck Brkt. R.H.
Usually ships same day

Currently unavailable

$

$

3

MTD Part# 17102

32" Deck Ass'y.
Usually ships same day

Not available

$

$

MTD Part# 17157

32" Deck Ass'y. Comp.

Note: (Service Only)

Usually ships same day

Currently unavailable

$

$

4

MTD Part# 710-0252

Hex Bolt 1/4-20 x .75" Lg.
(Superseded to 710-3015)
Usually ships in 1 day

$

$2.90

0

5

MTD Part# 710-0285

Hex Bolt 1/4-20 x .62" Lg.
Usually ships same day

Currently unavailable

$

$

6

MTD Part# 710-0778

Hex Wash. Hd. Scr. 1/4-20 x 1.5" Lg.
Usually ships in 1 day

$

$3.09

0

7

MTD Part# 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)
Usually ships in 1 day

$

$3.26

0

8

MTD Part# 712-0181

Hex L-Nut 3/8-16 Thd.
(Superseded to 912-0181)
Usually ships same day

Not available

$

$

9

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

10

MTD Part# 734-0973

Deck Wheel
Usually ships in 1 day

$

$9.60

0

11

MTD Part# 736-0105

Bell-Wash. .380" I.D. x .88
Usually ships in 1 day

$

$3.15

0

13

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

14

MTD Part# 738-0183

Shld. Bolt .500" Dia. x .215" Lg.
(Superseded to 938-0183)
Usually ships same day

Not available

$

$

15

MTD Part# 738-0373

Shld. Bolt .498" Dia. x 1.53" Lg.
(Superseded to 938-0373)
Usually ships in 1 day

$

$6.70

0

16

MTD Part# 742-0477

L.H. High-Lift Blade
Usually ships same day

Not available

$

$

17

MTD Part# 742-0480

R.H. High-Lift Blade
Usually ships same day

Not available

$

$

18

MTD Part# 754-0277

V-Belt
(Superseded to 954-0277)
Usually ships same day

Not available

$

$

24

MTD Part# 17091

Deck Brake Bracket
Usually ships same day

Currently unavailable

$

$

25

MTD Part# 17116

Deck Brake Brkt. Ass'y.
(Superseded to 97116)
Usually ships in 1 day

$

$38.56

0

26

MTD Part# 710-0772

Hex Bolt 5/16-24 x 2" Lg.
Usually ships in 1 day

$

$3.15

0

27

MTD Part# 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)
Usually ships in 1 day

$

$4.76

0

28

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

29

MTD Part# 714-0127

Cotter Pin 1/16" Dia.
Usually ships same day

Not available

$

$

30

MTD Part# 732-0561

Extension Spring
Usually ships same day

Not available

$

$

31

MTD Part# 736-0101

Fl-Wash. .406" I.D. x 1.0" O.D.
(Superseded to 936-0101)
Usually ships in 5 to 10 days

$

$3.21

0

32

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

34

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

35

MTD Part# 738-0255

Shld. Bolt .375" Dia. x .181"Lg.
(Superseded to 938-0255)
Usually ships in 1 day

$

$3.63

0

36

MTD Part# 747-0682

Deck Control Rod
Usually ships same day

Not available

$

$

37

MTD Part# 748-0234

Shld. Spacer x .27" Lg.
Usually ships in 1 day

$

$3.10

0

38

MTD Part# 750-0702

Spacer 1.46" Lg.
Usually ships same day

Not available

$

$

43

MTD Part# 15625

Lower Outside Belt Guard
Usually ships same day

Not available

$

$

44

MTD Part# 17117

Lower Inside Belt Guard
Usually ships same day

Currently unavailable

$

$

45

MTD Part# 17164

Belt Guard Deck R.H.
Usually ships same day

Not available

$

$

46

MTD Part# 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)
Usually ships in 1 day

$

$2.87

0

Usually ships same day

Not available

$

$

49

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

50

MTD Part# 726-0106

Speed Nut 1/4" Rod
(Superseded to 926-0106)
Usually ships same day

Not available

$

$

52

MTD Part# 736-0270

Bell-Wash. .265" I.D. x .75
Usually ships in 5 to 10 days

$

$2.87

0

53

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

54

MTD Part# 747-0691

Deck Belt Guard
Usually ships same day

Not available

$

$

63

MTD Part# 08253

Bearing Housing
(Superseded to 08253B)
Usually ships in 1 day

$

$14.27

0

64

MTD Part# 09164

Reinforcement Plate
(Superseded to 09164A-0637)
Usually ships in 1 day

$

$23.55

0

65

MTD Part# 13703

Bearing Shield
Usually ships same day

Not available

$

$

66

MTD Part# 710-0888

Hex Bolt 5/16-24 x 1.0" Lg.

Note: (Special)

Usually ships in 1 day

$

$3.06

0

67

MTD Part# 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)
Usually ships in 1 day

$

$4.76

0

68

MTD Part# 712-0318

Hex Jam Nut 5/8-18 Thd.
Usually ships in 1 day

$

$2.63

0

69

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

70

MTD Part# 736-0317

Bell-Wash. 5/8" I.D.
Usually ships in 1 day

$

$5.60

0

71

MTD Part# 738-0707

Blade Spindle
(Superseded to 938-0707A)
Usually ships in 5 to 10 days

$

$32.37

0

72

MTD Part# 741-0919

Ball Bearing
(Superseded to 941-0919B)
Usually ships in 1 day

$

$18.12

0

73

MTD Part# 748-0300

Blade Adapter
Usually ships in 1 day

$

$10.25

0

74

MTD Part# 750-0456

Spacer
(Superseded to 950-0456)
Usually ships in 1 day

$

$3.11

0

75

MTD Part# 756-0486

5" Dia. Pulley
Usually ships in 1 day

$

$40.23

0

76

MTD Part# 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)
Usually ships in 1 day

$

$3.19

0

77

MTD Part# 736-0217

L-Wash. 3/8" I.D. H.D.
(Superseded to 936-0217)
Usually ships in 1 day

$

$3.06

0

84

MTD Part# 16521

Chute Bracket
Usually ships same day

Not available

$

$

85

MTD Part# 16566

Chute
(Superseded to 753-0567)
Usually ships in 5 to 10 days

$

$108.11

0

86

MTD Part# 710-0255

Truss.-Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)
Usually ships in 1 day

$

$3.19

0

87

MTD Part# 711-0792

Hinge Pin
(Superseded to 911-0792)
Usually ships in 1 day

$

$3.24

0

88

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

89

MTD Part# 732-0542

Torsion Spring 1.14" Lg.
(Superseded to 932-0542)
Usually ships same day

Not available

$

$

90

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0
