13518-7 - MTD Lawn Tractor (1987) 32" Parts Diagram

Lawn Tractor

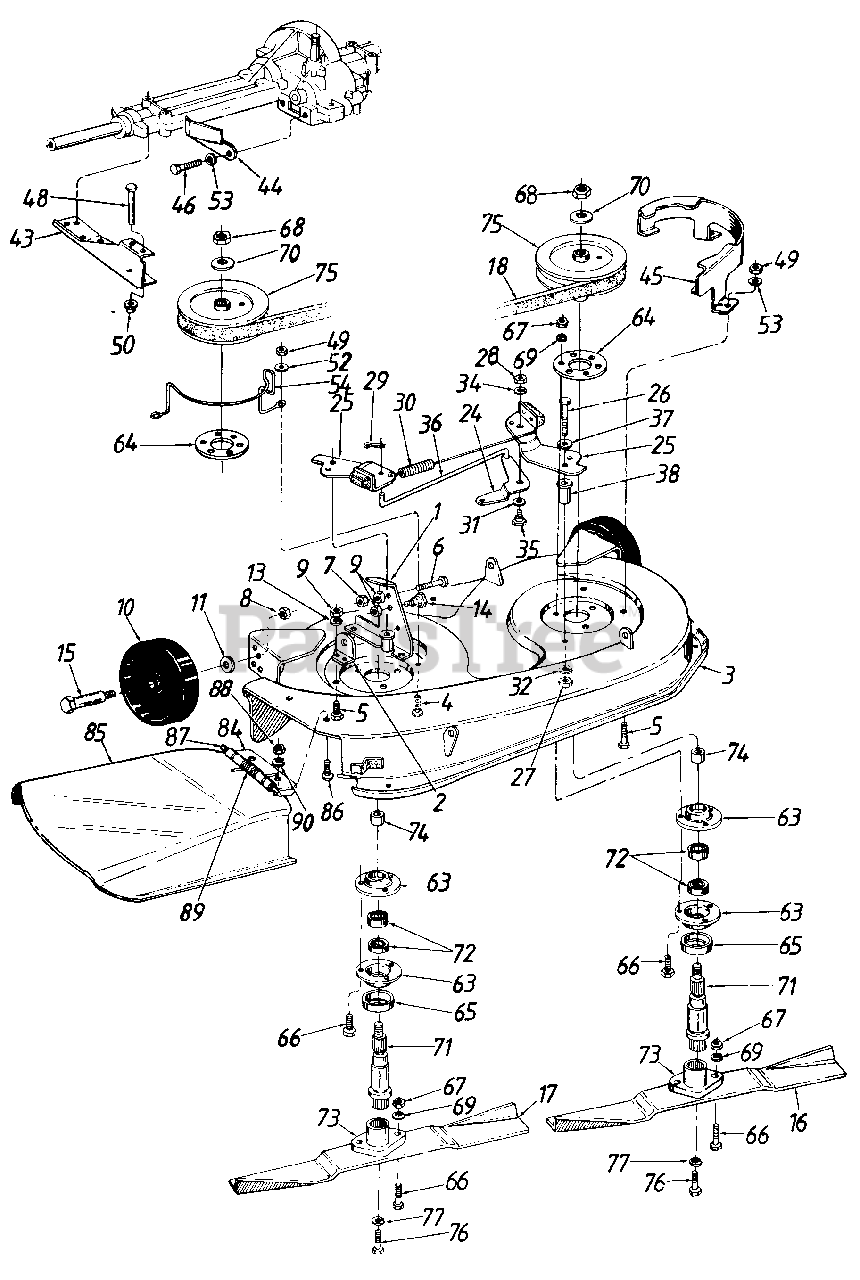

32" Parts Diagram

  • Title
1

MTD Part# 17094

Deck Disengagement Brkt.
Usually ships same day

Not available

$

$

2

MTD Part# 17096

Rear Deck Brkt. R.H.
Usually ships same day

Currently unavailable

$

$

3

MTD Part# 17102

32" Deck Ass'y.
Usually ships same day

Not available

$

$

MTD Part# 17242

32" Deck Ass'y. Comp.

Note: (Service Only)

Usually ships same day

Currently unavailable

$

$

4

MTD Part# 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.
Usually ships same day

Not available

$

$

5

MTD Part# 710-0285

Hex Bolt 1/4-20 x .62" Lg.
Usually ships same day

Currently unavailable

$

$

6

MTD Part# 710-0778

Hex Wash. Hd. Scr. 1/4-20 x 1.5" Lg.
Usually ships in 1 day

$

$3.09

0

7

MTD Part# 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)
Usually ships in 1 day

$

$3.26

0

8

MTD Part# 712-0181

Hex L-Nut 3/8-16 Thd.
(Superseded to 912-0181)
Usually ships same day

Not available

$

$

9

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

10

MTD Part# 734-0973

Deck Wheel
Usually ships in 1 day

$

$9.60

0

11

MTD Part# 736-0105

Bell-Wash. .380" I.D. x .88
Usually ships in 1 day

$

$3.15

0

13

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

14

MTD Part# 738-0183

Shld. Bolt .500" Dia. x .215"
(Superseded to 938-0183)
Usually ships same day

Not available

$

$

15

MTD Part# 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)
Usually ships in 1 day

$

$6.70

0

16

MTD Part# 742-0477

L.H. High-Lift Blade
Usually ships same day

Not available

$

$

17

MTD Part# 742-0480

R.H. High-Lift Blade
Usually ships same day

Not available

$

$

18

MTD Part# 754-0290

V-Belt
(Superseded to 954-0290)
Usually ships same day

Not available

$

$

MTD Part# 754-0347

V-Belt
(Superseded to 954-0347)
Usually ships same day

Not available

$

$

MTD Part# 732-0575

Extension Spring 15-5/8" Lg.
Usually ships same day

Not available

$

$

MTD Part# 17241

Idler Brkt. Ass'y.
Usually ships same day

Not available

$

$

MTD Part# 750-0470

Spacer 5/16" I.D. x 1/2" O.D. x 31/32"
Usually ships in 5 to 10 days

$

$4.81

0

MTD Part# 711-0469

Spacer 3/4" I.D. x 1-1/4" O.D. X 1/2"
Usually ships in 1 day

$

$5.67

0

24

MTD Part# 748-0160

Spacer 3/4" I.D. x 1-1/4" O.D. x 3/16"
(Superseded to 948-0160)
Usually ships in 1 day

$

$4.69

0

25

MTD Part# 17116

Deck Brake Brkt. Ass'y.
(Superseded to 97116)
Usually ships in 1 day

$

$38.56

0

26

MTD Part# 710-3056

Hex Bolt 5/16-18 x 3.25" Lg.
Usually ships in 5 to 10 days

$

$7.07

0

27

MTD Part# 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)
Usually ships in 1 day

$

$4.76

0

28

MTD Part# 712-0117

Hex L-Nut 1/4-28 Thd.
(Superseded to 912-0117)
Usually ships in 1 day

$

$2.02

0

29

MTD Part# 712-0138

Hex Nut 1/4-28 Thd.
(Superseded to 912-0138)
Usually ships same day

Not available

$

$

30

MTD Part# 732-0428

Extension Spring 4.35" Lg.
(Superseded to 732-0428B)
Usually ships in 1 day

$

$8.40

0

31

MTD Part# 750-0583

Spacer 1/4" I.D. x 3/8" O.D. x 1-5/16"
Usually ships same day

Not available

$

$

32

Part#

UNKNOWN
Usually ships same day

Not available

$

$

MTD Part# 738-0347

Shoulder Spacer
(Superseded to 938-0347)
Usually ships in 1 day

$

$7.16

0

34

MTD Part# 710-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)
Usually ships in 1 day

$

$3.01

0

35

MTD Part# 710-0102

Hex Bolt 1/4-20 x 2.5" Lg.
(Superseded to 710-1122)
Usually ships in 5 to 10 days

$

$5.07

0

36

MTD Part# 736-0230

Wave Washer
(Superseded to 936-0232)
Usually ships in 1 day

$

$3.23

0

37

MTD Part# 748-0234

Shld. Spacer .27" Lg.
Usually ships in 1 day

$

$3.10

0

38

MTD Part# 750-0702

Spacer 1.46" Lg.
Usually ships same day

Not available

$

$

MTD Part# 736-0176

Flat Wash. 1/4"
(Superseded to 936-0176)
Usually ships in 1 day

$

$3.18

0

MTD Part# 736-0169

L-Wash. 3/8" I.D.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

MTD Part# 712-3017

Hex Nut 3/8-16 Thd.
(Superseded to 912-3017)
Usually ships in 1 day

$

$3.09

0

MTD Part# 712-0241

Hex L-Nut 3/8-24 Thd.
Usually ships in 1 day

$

$3.10

0

43

MTD Part# 15625

Lower Outside Belt Guard
Usually ships same day

Not available

$

$

44

MTD Part# 17117

Lower Inside Belt Guard
Usually ships same day

Currently unavailable

$

$

45

MTD Part# 17164

Belt Guard Deck R.H.
Usually ships same day

Not available

$

$

46

MTD Part# 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)
Usually ships in 1 day

$

$2.87

0

Usually ships same day

Not available

$

$

49

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

50

MTD Part# 726-0106

Speed Nut 1/4" Rod
(Superseded to 926-0106)
Usually ships same day

Not available

$

$

MTD Part# 756-0515

Flat Idler Pulley
Usually ships in 1 day

$

$23.24

0

52

MTD Part# 756-0517

5" Dia. Pulley
Usually ships same day

Not available

$

$

53

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

54

MTD Part# 736-0242

Bell-Wash. 5/16" I.D.
Usually ships in 1 day

$

$3.00

0

MTD Part# 712-0291

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0291)
Usually ships same day

Not available

$

$

63

MTD Part# 08253

Bearing Housing
(Superseded to 08253B)
Usually ships in 1 day

$

$14.27

0

64

MTD Part# 09164

Reinforcement Plate
(Superseded to 09164A-0637)
Usually ships in 1 day

$

$23.55

0

65

MTD Part# 13703

Bearing Shield
Usually ships same day

Not available

$

$

66

MTD Part# 710-0888

Hex Bolt 5/16-24 x 1.0" Lg.

Note: (Special)

Usually ships in 1 day

$

$3.06

0

67

MTD Part# 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)
Usually ships in 1 day

$

$4.76

0

68

MTD Part# 712-0318

Hex Jam Nut 5/8-18 Thd.
Usually ships in 1 day

$

$2.63

0

69

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

70

MTD Part# 736-0317

Bell-Wash. 5/8" I.D.
Usually ships in 1 day

$

$5.60

0

71

MTD Part# 738-0707

Blade Spindle
(Superseded to 938-0707A)
Usually ships in 5 to 10 days

$

$32.37

0

72

MTD Part# 741-0919

Ball Bearing
(Superseded to 941-0919B)
Usually ships in 1 day

$

$18.12

0

73

MTD Part# 748-0300

Blade Adapter
Usually ships in 1 day

$

$10.25

0

74

MTD Part# 750-0456

Spacer
(Superseded to 950-0456)
Usually ships in 1 day

$

$3.11

0

75

MTD Part# 756-0516

5" Dia. Pulley
Usually ships same day

Not available

$

$

76

MTD Part# 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)
Usually ships in 1 day

$

$3.19

0

77

MTD Part# 736-0217

L-Wash. 3/8" I.D. H.D.
(Superseded to 936-0217)
Usually ships in 1 day

$

$3.06

0

84

MTD Part# 16521

Chute Bracket
Usually ships same day

Not available

$

$

85

MTD Part# 16566

Chute
(Superseded to 753-0567)
Usually ships in 5 to 10 days

$

$108.11

0

86

MTD Part# 710-0255

Truss.-Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)
Usually ships in 1 day

$

$3.19

0

87

MTD Part# 711-0792

Hinge Pin
(Superseded to 911-0792)
Usually ships in 1 day

$

$3.24

0

88

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

89

MTD Part# 732-0542

Torsion Spring 1.14" Lg.
(Superseded to 932-0542)
Usually ships same day

Not available

$

$

90

Part#

UNKNOWN
Usually ships same day

Not available

$

$
