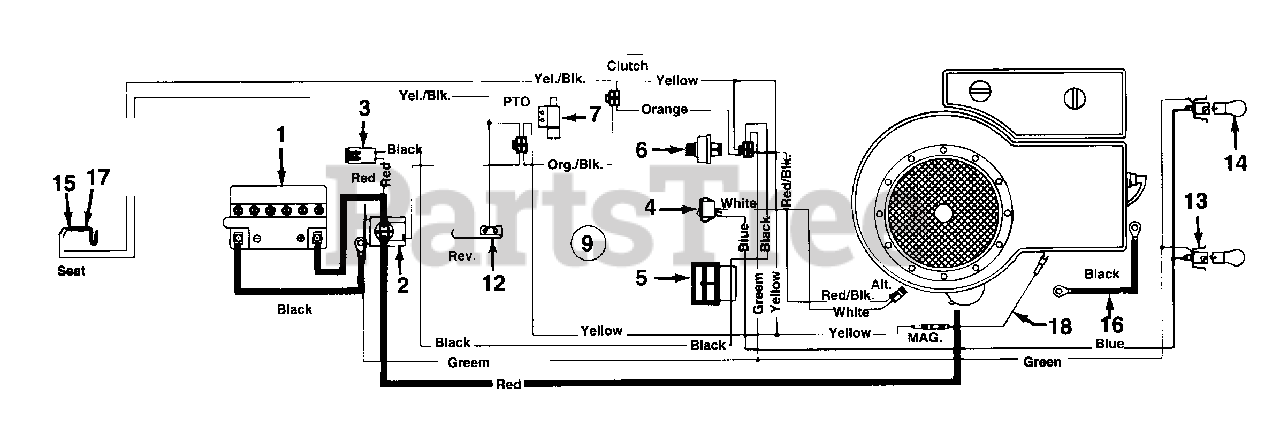

135G665G000 - MTD Lawn Tractor (1995) Electrical/Switches Parts Diagram

Lawn Tractor

Electrical/Switches Parts Diagram

  • Title
1

MTD Part# 725-1635

Battery
(Superseded to 753-0608)
Usually ships same day

Not available

$

$

2

MTD Part# 725-1426

Solenoid
(Superseded to 925-1426A)
Usually ships in 1 day

$

$24.17

0

3

MTD Part# 725-1625

Fuse 7.5 Amps
Usually ships in 5 to 10 days

$

$5.89

0

4

MTD Part# 725-0634

Light Switch
(Superseded to 925-0634)

Note: Optional

Usually ships in 1 day

$

$12.77

0

5

MTD Part# 725-0925

Ammeter
(Superseded to 925-0925)

Note: Optional

Usually ships in 1 day

$

$21.86

0

6

MTD Part# 725-0267

Ignition Switch
(Superseded to 925-0267B)
Usually ships in 1 day

$

$26.44

0

7

MTD Part# 725-1657

Safety Switch (Clutch)
(Superseded to 925-1657A)
Usually ships in 1 day

$

$17.92

0

9

MTD Part# 629-0201

Wire Harness w/o Ammeter
Usually ships same day

Not available

$

$

MTD Part# 629-0203

Wire Harness w/Ammeter
Usually ships same day

Not available

$

$

12

MTD Part# 725-1643

Safety Switch (Reverse)
Usually ships in 1 day

$

$7.19

0

13

MTD Part# 725-1649

Socket
(Superseded to 925-1649A)

Note: Used on Styles 0, 5

Usually ships in 1 day

$

$8.26

0

MTD Part# 725-1650

Socket
(Superseded to 925-1650)

Note: Used on Styles 8, 9

Usually ships in 1 day

$

$10.27

0

MTD Part# 725-1651

Socket
(Superseded to 925-1651)

Note: Used on Styles 1, 3, 7

Usually ships in 5 to 10 days

$

$7.84

0

14

MTD Part# 725-0963

Bulb (Headlight)
(Superseded to 925-0963)
Usually ships in 1 day

$

$5.34

0

15

MTD Part# 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)
Usually ships in 1 day

$

$4.47

0

16

MTD Part# 725-0980

Ground Wire 7.5" Lg.
Usually ships same day

Not available

$

$

17

MTD Part# 725-1439

Safety Switch (Seat)
Usually ships in 1 day

$

$5.76

0

18

MTD Part# 629-0207

Harness Adaptor
Usually ships in 1 day

$

$8.08

0
