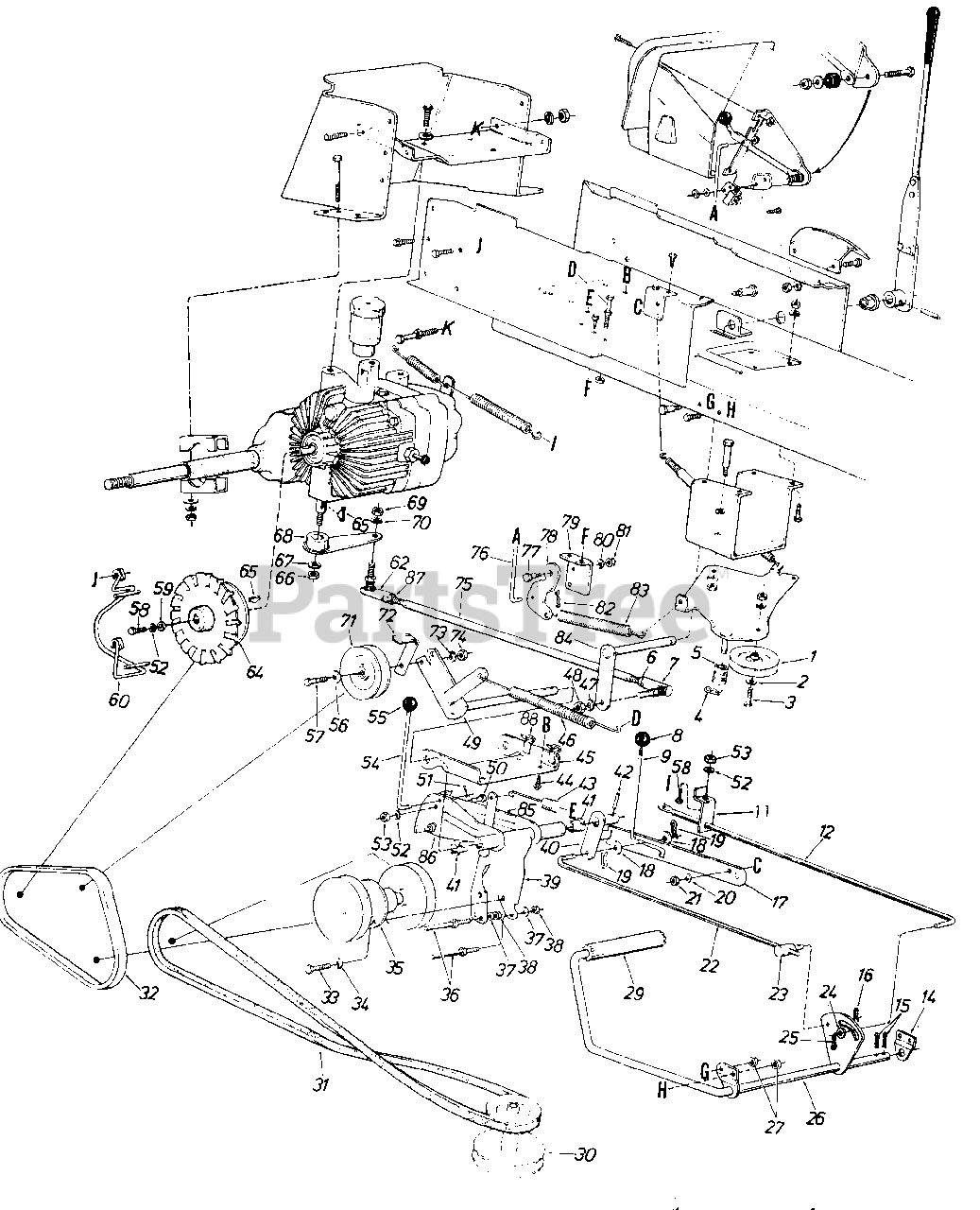

136-782-000 - MTD Lawn Tractor (1986) Parts Parts Diagram

Lawn Tractor

Parts Parts Diagram

  • Title

1

MTD 756-0293

4" Dia. "V"-Idler Pulley
(Superseded to 756-0487)

$45.99

$

In Stock, only 4 left!

0

2

MTD 736-0300

Fl-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0342

Hex 801t 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

4

MTD 714-0104

Intern. Cotter Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

5

MTD 748-0278

Spacer
(Superseded to 948-0278)

$10.99

$

In Stock, Qty 14

0

6

MTD 712-0711

Hex Jam L-Nut 3/8-24 Thd.

$3.99

$

In Stock, Qty 20+

0

7

MTD 723-0156

Ball Joint Ass'y. 3/8-24 Thd.
(Superseded to 923-0156)

$15.99

$

In Stock, Qty 20+

0

8

MTD 720-0166

Ball Knob

$

$

Not available

9

MTD 747-0300

Parking Brake Link

$

$

Currently unavailable

11

MTD 14027

Brake Rod Hanger

$

$

Currently unavailable

12

MTD 747-0400

Brake Rod

$

$

Not available

14

MTD 13859

Clutch Rod Brg. Brkt.

$

$

Not available

15

MTD 714-0115

Cotter Pin 118" Dia. x 1.00" Lg.

$3.99

$

In Stock, only 1 left!

0

16

MTD 714-0145

Hairpin Cotter 1/2" Dia.

$4.49

$

In Stock, Qty 20+

0

17

MTD 13832

Parking Brake Cam

$

$

Not available

18

MTD 736-0101

Fl-Wash. .406 I.D. x 1.00" O.D. x .030
(Superseded to 936-0101)

$4.49

$

Usually ships in 3-6 days

0

19

MTD 714-0145

Hairpin Cotter 1/2" Dia.

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 747-0306

Brake Cam Rod

$

$

Not available

23

MTD 711-0198

Pivot Bushing
(Superseded to 911-0198)

$12.99

$

In Stock, Qty 20+

0

24

MTD 736-0275

Fl-Wash. .401" I.D. x .749" O.D. x .057" Thk.

$6.49

$

Usually ships in 3-6 days

0

25

MTD 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 4 left!

0

26

MTD 13856

Clutch Brake Pedal Ass'y.

$

$

Currently unavailable

27

MTD 712-0375

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

29

MTD 735-0196

Foot Pad
(Superseded to 735-0239A)

$11.99

$

In Stock, Qty 9

0

30

MTD 756-0328

Two-Step Engine Pulley 4.75" and 5.56"

$

$

Not available

31

MTD 754-0245

"V"-Belt 1/2" x 59" Lg.
(Superseded to 954-0245)

$

$

Not available

32

MTD 754-0255

"V"-Belt 1/2" x 37" Lg.
(Superseded to 954-0255)

$

$

Not available

33

MTD 710-0198

Hex Sems Bolt 5/16-18 x .75" Lg.*
(Superseded to 910-0198)

$

$

Not available

34

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

35

MTD 756-0324

Jack Shaft Ass'y.

$

$

Not available

36

MTD 711-0696

Stud 3/8-16 x 3.62" Lg.

$

$

Currently unavailable

37

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

38

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

39

MTD 13823

Jack Shaft Mtg. Brkt. Ass'y.

$

$

Not available

40

MTD 13871

Clutch Idler Horn Ass'y.

$

$

Not available

41

MTD 741-0295

Nyliner 5/8" I.D. x .88" Lg.
(Superseded to 941-0591)

$

$

Not available

42

MTD 715-0114

Spring Pin Spiral 1/4" Dia. x 1.5" Lg.

$8.49

$

In Stock, Qty 9

0

43

MTD 732-0153

Ext. Spring

Note: (Jack Shaft)

$

$

Not available

44

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg

$3.99

$

In Stock, Qty 20+

0

45

MTD 13822

Idler Mtg. Brkt.

$

$

Not available

46

MTD 732-0384

Ext. Spring
(Superseded to 932-0384)

Note: (Drive Idler)

$13.99

$

In Stock, Qty 20+

0

47

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

48

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

49

MTD 13815

Clutch Brkt. Ass'y.

$

$

Currently unavailable

50

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

51

MTD 714-0104

Internal Cotter Pin 5/16" Dia. Rod

$3.99

$

In Stock, Qty 20+

0

52

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

53

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

54

MTD 747-0312

Relief Valve Lockout Rod

$

$

Currently unavailable

55

MTD 720-0187

Ball Knob

$9.99

$

Usually ships in 3-6 days

0

56

MTD 736-0300

Fl-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

57

MTD 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

58

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.s
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

59

MTD 736-0176

Fl-Washer

$3.99

$

In Stock, Qty 20+

0

60

MTD 14016

Belt Guard Ass'y.

$

$

Not available

62

MTD 723-0351

Ball Joint Ass'y. 3/8-24 L.H. Thd.
(Superseded to 923-0351)

$41.99

$

Usually ships in 3-6 days

0

64

MTD 756-0364

Transaxle Pulley w/Fan

$

$

Currently unavailable

65

MTD 714-0156

Hi-Pro Key 118" x 1/2" Dia.

$

$

Not available

66

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

67

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

68

MTD 14022

Pintle Arm Ass'y.

$

$

Currently unavailable

69

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

70

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

71

MTD 756-0293

4" "V"-Idler Pulley
(Superseded to 756-0487)

$45.99

$

In Stock, only 4 left!

0

72

MTD 13819

Belt Guard

Note: (Clutch Idler)

Variations

MTD 13819-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

73

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

74

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

75

MTD 747-0321

Speed Control Rod

$

$

Not available

76

MTD 747-0307

Deck Control Rod

$47.99

$

In Stock, only 1 left!

0

77

MTD 738-0155

Shld. Scr. .437" Dia. x .162" Lg. (5/16-18)
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

78

MTD 13887

Deck Control Pivot Brkt.
(Superseded to 13887A)

$

$

Not available

79

MTD 13833

Parking Brake Cam Mtg. Brkt.

$

$

Not available

80

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

81

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

82

MTD 714-0104

Internal Cotter Pin 5/16" Rod

$3.99

$

In Stock, Qty 20+

0

83

MTD 732-0478

Extension Spring
(Superseded to 932-0478)

$11.99

$

In Stock, Qty 18

0

84

MTD 14034

Speed Control Shaft Ass'y.

$

$

Not available

85

MTD 14025

Relief Valve Cam-L.H.

$

$

Currently unavailable

86

MTD 14026

Relief Valve Cam-R.H.

$

$

Currently unavailable

87

MTD 712-0312

Hex Jam L-Nut 3/8-24 L.H. Thd.*
(Superseded to 712-0312A)

$3.99

$

Usually ships in 3-6 days

0

88

MTD 726-0193

Plastic Hose Clamp

$

$

Not available
