136 - Husqvarna Chainsaw (2001-05) Piston / Cylinder Parts Diagram

Chainsaw

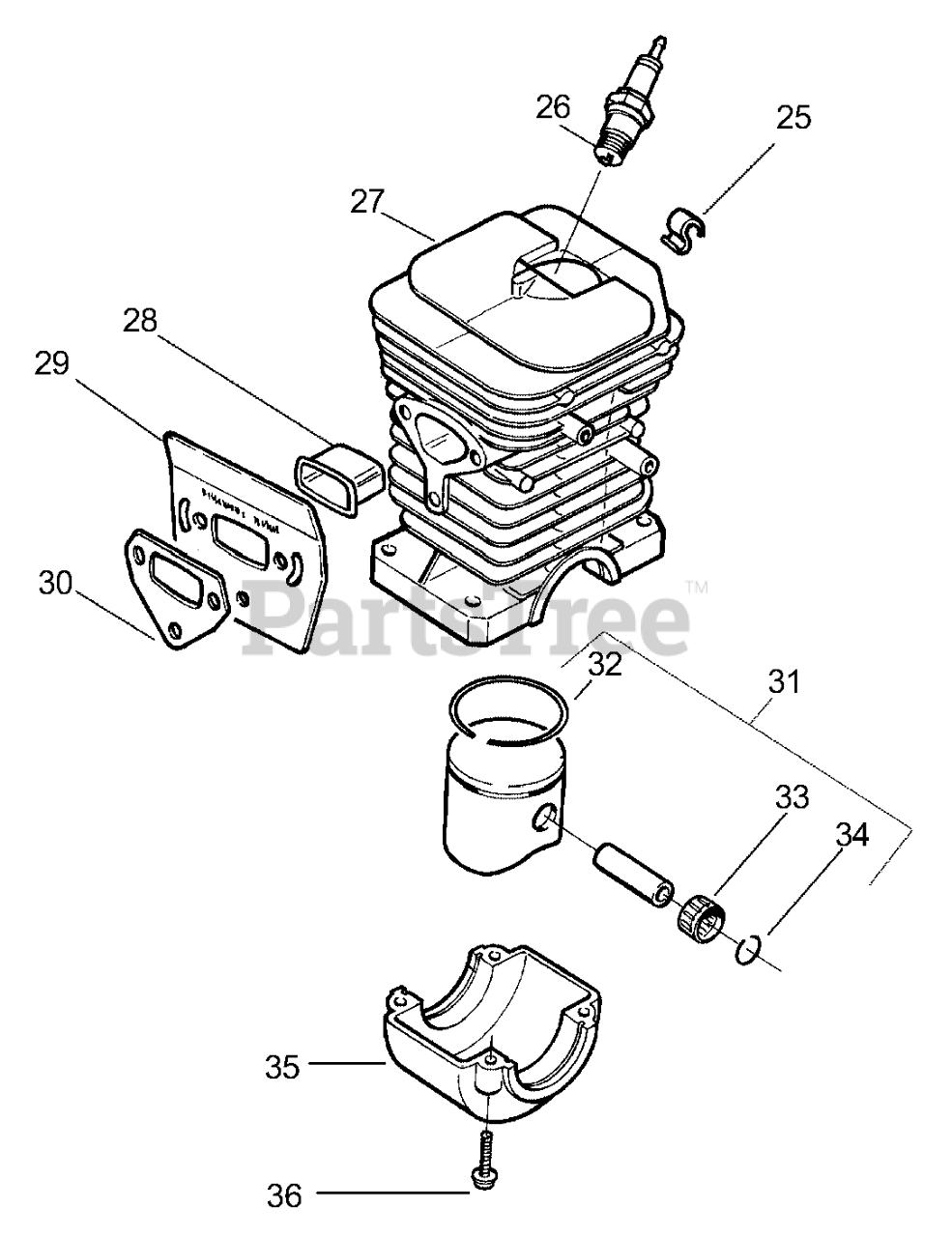

Piston / Cylinder Parts Diagram

  • Title

25

Husqvarna 530015696

CLIP - HIGH TENSION LE

$

$

Not available

26

Husqvarna 952030150

Spark Plug (RCJ-7Y)
(Superseded to 503235111)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 530069940

CYLINDER ASSY/136

Note: (incl.#35)

$

$

Not available

27

Husqvarna 530069941

CYLINDER ASSY/141

Note: (incl.#35)

$

$

Not available

28

Husqvarna 530037652

HEAT INSULATOR

$

$

Not available

29

Husqvarna 530037640

MUFFLER PLATE

$

$

Not available

30

Husqvarna 530019205

GASKET

$5.99

$

In Stock, only 1 left!

0

31

Husqvarna 530069944

PISTON KIT/136

Note: (Includes pin and 32,33,34)

$

$

Not available

31

Husqvarna 530069454

KIT-PISTON

Note: (Includes pin and 32,33,34)

$

$

Not available

32

Husqvarna 530029805

PISTON RING 36

$5.99

$

In Stock, Qty 10

0

32

Husqvarna 530029989

FILTER COVER OTHER - GAS L/G P

$

$

Not available

33

Husqvarna 530032117

Piston Pin Bearing

$

$

Not available

34

Husqvarna 530015697

C-CLIP,PSTN PIN 36/41

$3.49

$

In Stock, only 1 left!

0

35

Husqvarna 530049794

CAP-CRANKSHAFT

$

$

Not available

36

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

Note: Not Shown

$3.49

$

In Stock, Qty 19

0

Husqvarna 530031135

SCRENCH
(Superseded to 587417201)

$9.49

$

In Stock, Qty 19

0

Husqvarna 530031136

PULLER WORM GEAR

$

$

Not available

Husqvarna 530031112

CLUTCH TOOL

$20.99

$

In Stock, only 3 left!

0

Husqvarna 530029887

DECAL,WARNING (36 USA)

$

$

Not available

Husqvarna 530037912

Scabbard
(Superseded to 596703701)

$9.49

$

In Stock, only 1 left!

0
