136 - Husqvarna Chainsaw (2003-01) Clutch/Drum/Oil Pump Parts Diagram

Chainsaw

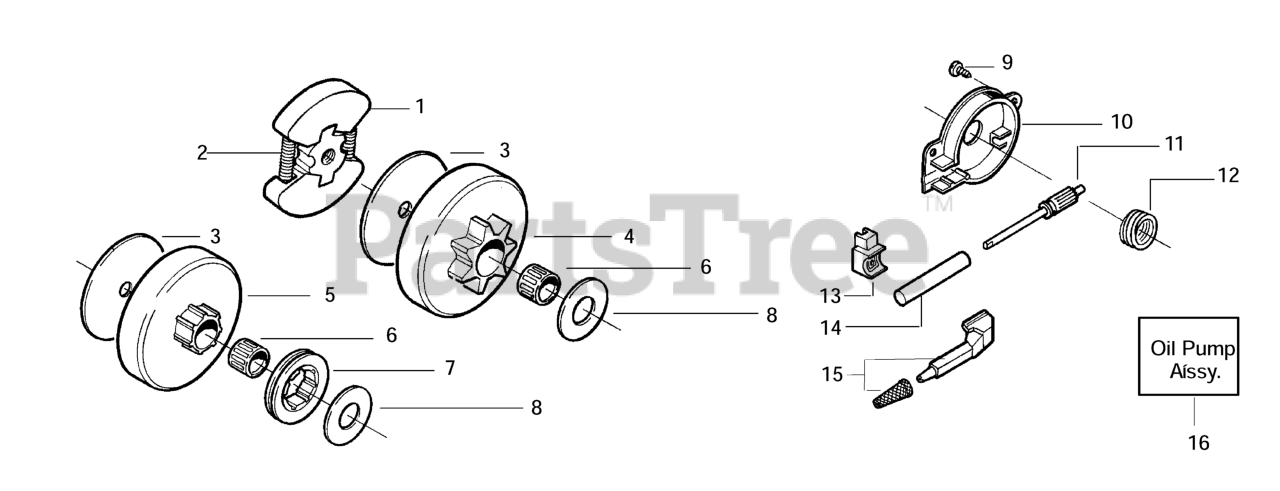

Clutch/Drum/Oil Pump Parts Diagram

  • Title

1

Husqvarna 530014949

CLUTCH ASSEMBLY

Note: (incl. 2)

$22.99

$

In Stock, Qty 16

0

2

Husqvarna 530094188

CLUTCH SPRING 36/41
(Superseded to 530014949)

$22.99

$

In Stock, Qty 16

0

3

Husqvarna 530015611

FRICTION DISC,CLUTCH 36/41

$5.99

$

In Stock, Qty 20+

0

4

Husqvarna 530047061

CLUTCH DRUM ASSY

$20.99

$

In Stock, Qty 20+

0

5

Husqvarna 530069316

CLUTCH DRUM 325 X 7T

Note: (incl. 6 & 7)

$

$

Not available

6

Husqvarna 530032119

NEEDLE BEARINGS 36/41

$10.99

$

In Stock, Qty 9

0

7

Husqvarna 530028650

RIM .325 7T 36/41
(Superseded to 640200010)

$9.49

$

In Stock, Qty 15

0

8

Husqvarna 530015907

THRUST WASHER

$

$

Not available

9

Husqvarna 530015896

SCREW

$5.99

$

In Stock, only 4 left!

0

10

Husqvarna 530029835

OIL PUMP HOUSING
(Superseded to 530014410)

$22.99

$

In Stock, only 3 left!

0

11

Husqvarna 530029838

PLUNGER & GEAR ASSEMBLY
(Superseded to 545036801)

$22.99

$

In Stock, only 3 left!

0

12

Husqvarna 530029833

OILER GEAR 36/41

$7.99

$

In Stock, Qty 5

0

13

Husqvarna 530019174

PRESSURE SEAL,OILER 36/41
(Superseded to 545037101)

$

$

Not available

14

Husqvarna 530029834

OIL PUMP BARREL
(Superseded to 530014410)

$22.99

$

In Stock, only 3 left!

0

15

Husqvarna 530014776

OIL PICKUP
(Superseded to 545037101)

$

$

Not available

16

Husqvarna 530014410

OILER ASS'Y 36/41
(Superseded to 545036801)

Note: (Includes 10,11 & 14)

$22.99

$

In Stock, only 3 left!

0
