136 - Husqvarna Chainsaw (2003-01) Crankcase Parts Diagram

Chainsaw

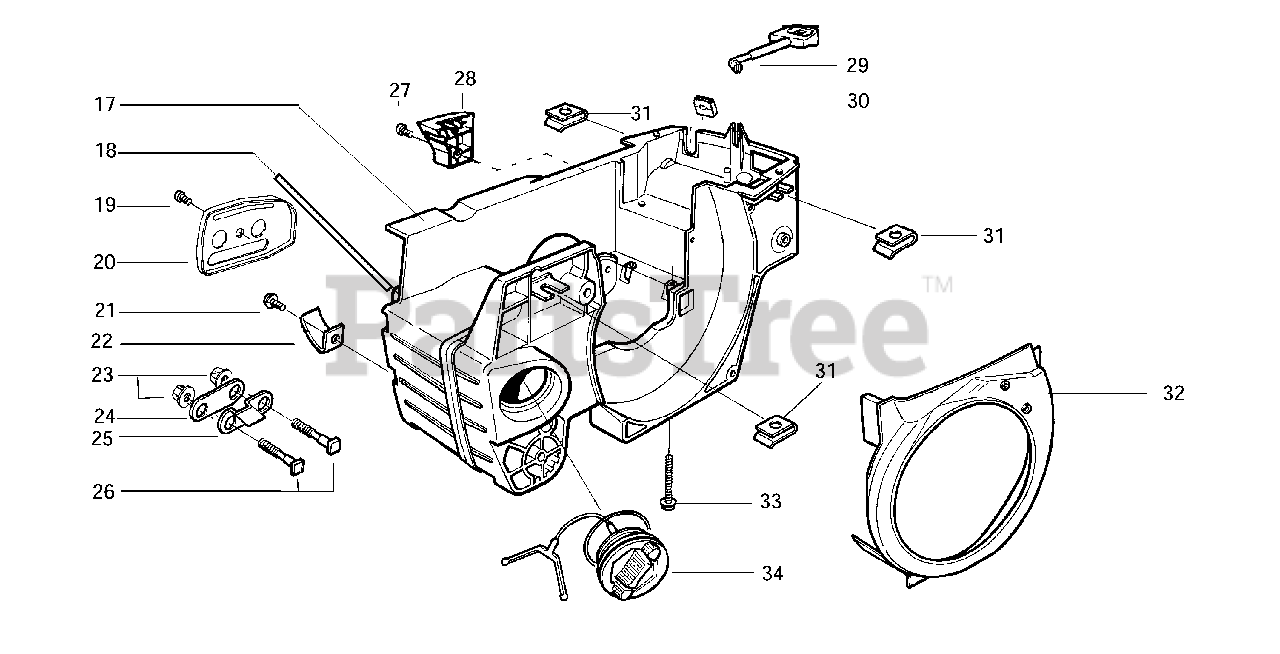

Crankcase Parts Diagram

  • Title

17

Husqvarna 530069942

Kit - Chassis Ass'y.
(Superseded to 530069887)

$

$

Not available

18

Husqvarna 530052440

Tube-Oil Vent
(Superseded to 545033501)

$6.49

$

In Stock, Qty 10

0

19

Husqvarna 530015896

Screw

Note: (optional)

$6.49

$

In Stock, Qty 13

0

20

Husqvarna 530047855

Bar Plate

$

$

Not available

21

Husqvarna 530015878

Screw

$2.49

$

Usually ships in 3-10 days

0

22

Husqvarna 530029850

Chain Catcher

$6.49

$

In Stock, Qty 20+

0

23

Husqvarna 530015917

Nut

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 530019228

Gasket

$5.99

$

In Stock, only 3 left!

0

25

Husqvarna 530036043

Bar Stud Plate

$5.99

$

In Stock, only 4 left!

0

26

Husqvarna 530015877

Bar Bolt

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 530015893

Screw

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 530052428

Cover

$

$

Not available

29

Husqvarna 530029831

Choke Lever

$

$

Not available

30

Husqvarna 530029830

Grommet

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 530015922

Type 'U' Speed Nut

$6.49

$

In Stock, Qty 5

0

32

Husqvarna 530029800

Baffle Plate

$

$

Not available

33

Husqvarna 530016037

Screw

$

$

Not available

34

Husqvarna 501765602

Assy.- Oil Tank Cap

$10.99

$

In Stock, Qty 20+

0
