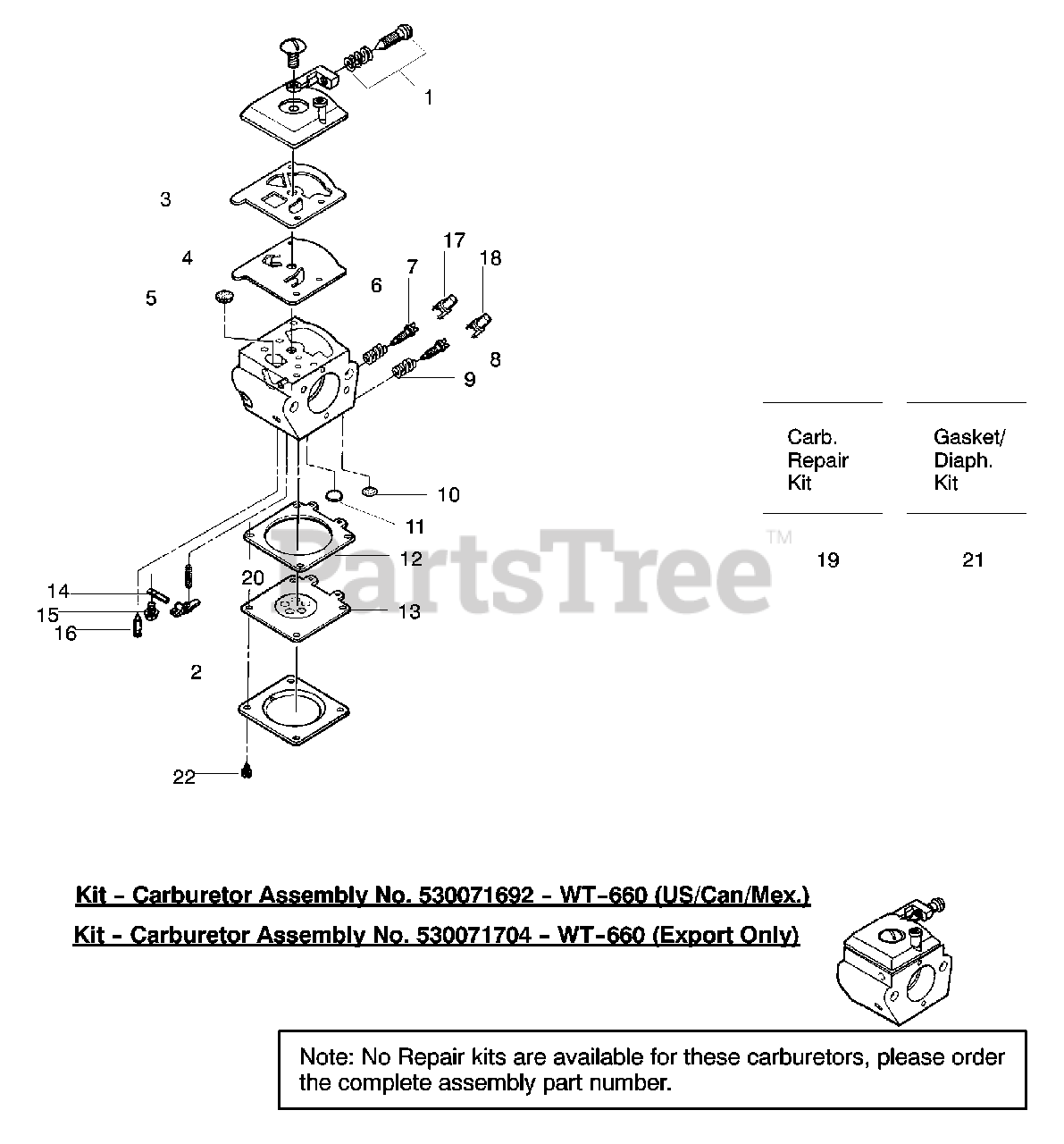

136 - Husqvarna Chainsaw (2003-06) Carburetor Parts Parts Diagram

Chainsaw

Carburetor Parts Parts Diagram

  • Title

1

Husqvarna 530035296

Idle Adv. Screw Kit

$

$

Not available

2

Husqvarna 530035031

Metering Lever
(Superseded to 505520127)

$

$

Not available

3

Husqvarna 530035164

Fuel Pump Gasket
(Superseded to 504130906)

$13.99

$

In Stock, Qty 5

0

4

Husqvarna 530035166

Fuel Pump Diaphragm
(Superseded to 504130807)

$37.99

$

In Stock, Qty 20+

0

5

Husqvarna 507432582

Fuel Inlet Screen
(Superseded to 501666101)

$14.99

$

In Stock, Qty 20+

0

6

Husqvarna 530035293

Needle Spring (Low Speed)

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 530035281

Low Speed Needle

$9.49

$

In Stock, only 1 left!

0

8

Husqvarna 530037259

High Speed Needle

$

$

Not available

9

Husqvarna 530035295

Needle Spring (High Speed)

$

$

Not available

10

Husqvarna 530035162

Welch Plug (5/16)

$

$

Not available

11

Husqvarna 530035225

Cup Plug

$

$

Not available

12

Husqvarna 530035165

Metering Diaphragm Gasket

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 530035014

Metering Diaphragm
(Superseded to 503896701)

$56.99

$

In Stock, Qty 9

0

14

Husqvarna 530035028

Metering Lever Pin
(Superseded to 505520125)

$7.99

$

In Stock, only 3 left!

0

15

Husqvarna 530035016

Metering Lever Pin Screw

$7.99

$

In Stock, Qty 6

0

16

Husqvarna 530035106

Inlet Needle Valve
(Superseded to 503117001)

$26.99

$

In Stock, Qty 6

0

17

Husqvarna 530038479

Limiter Cap High

$

$

Not available

18

Husqvarna 530038478

Limiter Cap Low

$3.49

$

In Stock, Qty 19

0

19

Carburetor Repair Kit

Note: (Incl. 3-5 & 10-18)

$

$

Not available

19

Husqvarna 530069826

Walbro

$28.99

$

In Stock, only 2 left!

0

19

Husqvarna 530035269

Zama

$34.99

$

In Stock, only 2 left!

0

20

Husqvarna 530035188

Metering Lever Spring

$4.99

$

In Stock, Qty 9

0

21

Gasket/Diaphragm Kit

Note: (Incl. 3, 4, 12 & 13)

$

$

Not available

21

Husqvarna 530069844

Walbro

$22.99

$

In Stock, Qty 6

0

21

Husqvarna 530035270

Zama

$

$

Not available

22

Husqvarna 530035021

Metering Cover Screw Ass'y

$

$

Not available

Husqvarna 530031157

Limiter Cap Removal Tool
(Superseded to 540068201)

Note: Not Shown

$

$

Not available

Husqvarna 530031161

Limiter Cap Insertion Tool

Note: Not Shown

$

$

Not available

Husqvarna 530071510

Kit - Carburetor Assembly (WT-540)
(Superseded to 530071987)

$113.99

$

Usually ships in 3-10 days

0

Husqvarna 530069629

Kit - Carburetor Assembly (WT-289)
(Superseded to 545013503)

$

$

Not available

Husqvarna 530035482

Kit - Carburetor Assembly (WT-542)
(Superseded to 530071987)

$113.99

$

Usually ships in 3-10 days

0

530071692

Husqvarna 530071692

Kit - Carburetor Assembly WT-660 (US/Can/Mex.)
(Superseded to 530071987)

$113.99

$

Usually ships in 3-10 days

0

530071704

Husqvarna 530071704

Kit - Carburetor Assembly WT-660 (Export Only)
(Superseded to 530071987)

$113.99

$

Usually ships in 3-10 days

0
