136 - Husqvarna Chainsaw (2003-06) Carburetor Parts Parts Diagram

Chainsaw

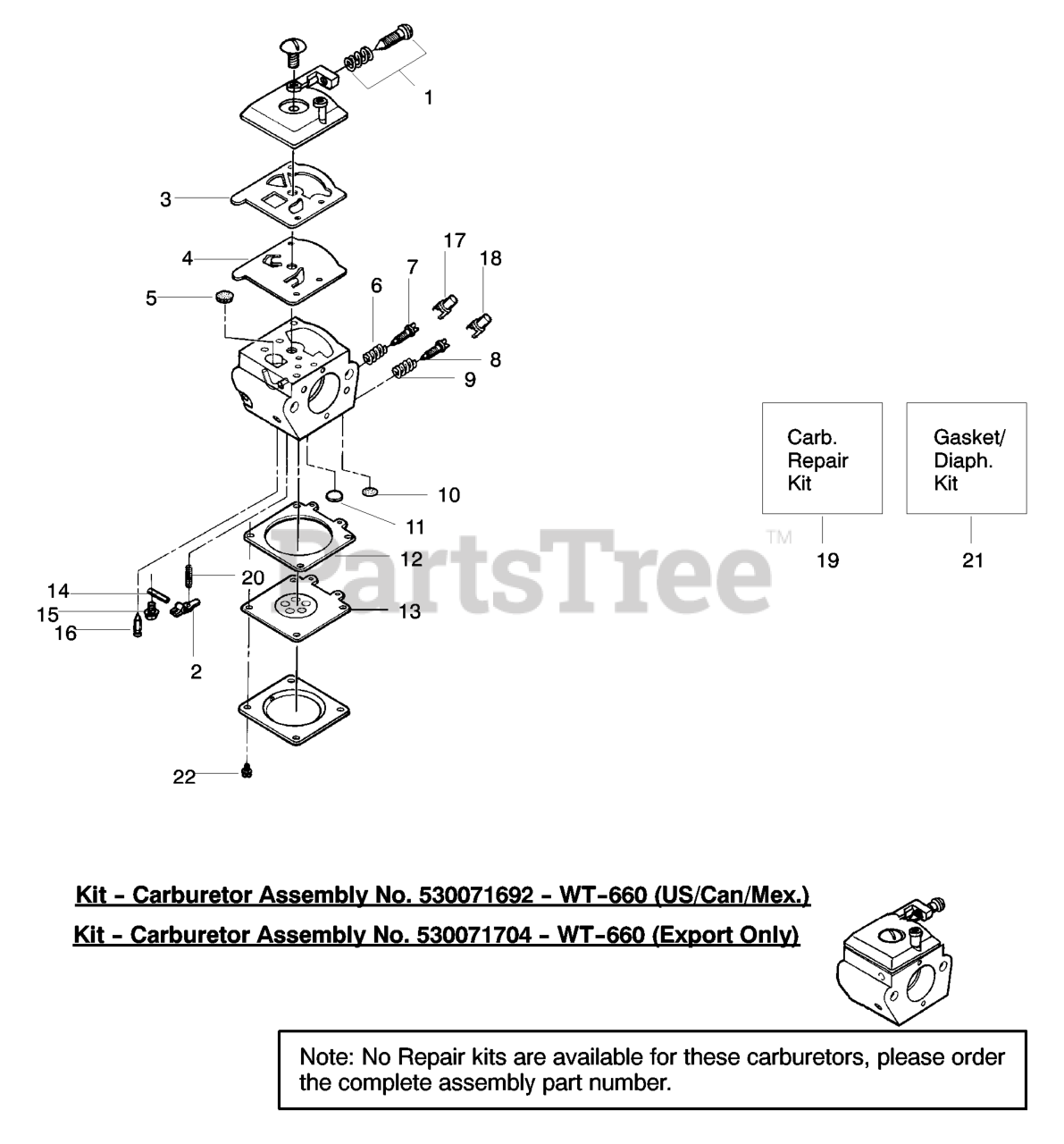

Carburetor Parts Parts Diagram

  • Title

1

Husqvarna 530035296

IDLE ADV SCREW KIT

$

$

Not available

2

Husqvarna 530035031

LEVER
(Superseded to 505520127)

$

$

Not available

3

Husqvarna 530035164

GASKET-FUEL PUMP
(Superseded to 504130906)

$13.99

$

In Stock, only 2 left!

0

4

Husqvarna 530035166

DIAP FUEL PUMP
(Superseded to 504130807)

$37.99

$

In Stock, Qty 18

0

5

Husqvarna 507432582

FILTER SCREEN
(Superseded to 501666101)

$14.99

$

In Stock, Qty 20+

0

6

Husqvarna 530035293

NEEDLE SPRING

$

$

Not available

7

Husqvarna 530035281

LOW SPEED NEEDLE

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 530037259

High Speed Needle

$

$

Not available

9

Husqvarna 530035295

NEEDLE SPRING

$

$

Not available

10

Husqvarna 530035162

Welch Plug (5/16)

$

$

Not available

11

Husqvarna 530035225

CUP PLUG

$

$

Not available

12

Husqvarna 530035165

METERING DIA GASKET

$15.99

$

Usually ships in 3-10 days

0

13

Husqvarna 530035014

DIAPHRAGM
(Superseded to 503896701)

$56.99

$

In Stock, Qty 9

0

14

Husqvarna 530035028

PIN
(Superseded to 505520125)

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 530035016

SCREW

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 530035106

INLET NEEDLEVALVE
(Superseded to 503117001)

$35.99

$

In Stock, Qty 6

0

17

Husqvarna 530038479

LIMITER CAP-HIGH

$

$

Not available

18

Husqvarna 530038478

LIMITER CAP-LOW

$3.99

$

In Stock, Qty 19

0

19

Carburetor Repair Kit

Note: (Incl. 3-5 & 10-18)

$

$

Not available

19

Husqvarna 530069826

CARB REPAIR KIT

$27.99

$

In Stock, only 2 left!

0

19

Husqvarna 530035269

KIT, CARB REPAIR

$34.99

$

Usually ships in 3-10 days

0

20

Husqvarna 530035188

SPRING-METERING LEVER

$4.99

$

In Stock, Qty 9

0

21

Gasket/Diaphragm Kit

Note: (Incl. 3, 4, 12 & 13)

$

$

Not available

21

Husqvarna 530069844

GASKET/DIAPHRAGM KIT

$17.99

$

In Stock, Qty 10

0

21

Husqvarna 530035270

GASKET/DIAPHRAGM KIT ZAMA

$

$

Not available

22

Husqvarna 530035021

SCREW, MOTOR COVER

$

$

Not available

Husqvarna 530031157

LIMITER CAP REMOVAL TOOL
(Superseded to 540068201)

Note: Not Shown

$

$

Not available

Husqvarna 530031161

LIMITER CAP INSERTION TOOL

Note: Not Shown

$

$

Not available

Husqvarna 530071510

CARBURETOR
(Superseded to 530071987)

$113.99

$

Usually ships in 3-10 days

0

Husqvarna 530069629

CARBURETOR/EPA
(Superseded to 545013503)

$

$

Not available

Husqvarna 530035482

CARBURETOR
(Superseded to 530071987)

$113.99

$

Usually ships in 3-10 days

0

530071692

Husqvarna 530071692

CARB WT-660
(Superseded to 530071987)

$113.99

$

Usually ships in 3-10 days

0

530071704

Husqvarna 530071704

CARBURETOR
(Superseded to 530071987)

$113.99

$

Usually ships in 3-10 days

0
