136 - Husqvarna Chainsaw (2003-06) Chain Brake & Top Cover & Piston/Cylinder Parts Diagram

Chainsaw

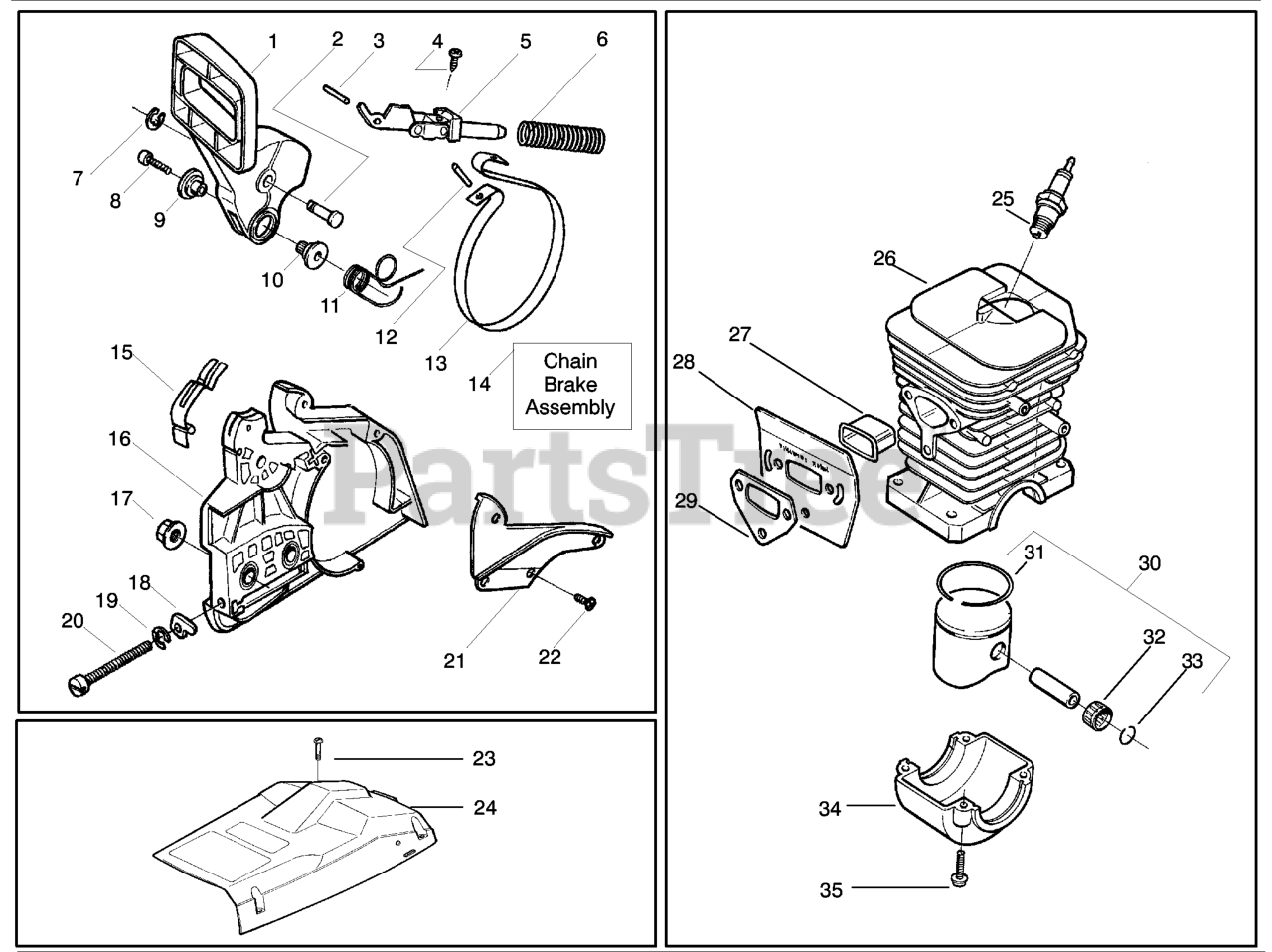

Chain Brake & Top Cover & Piston/Cylinder Parts Diagram

  • Title

1

Husqvarna 530071348

HANDGUARD

$

$

Not available

2

Husqvarna 530029879

PIVOT PIN

$

$

Not available

3

Husqvarna 530015915

PIN

$

$

Not available

4

Husqvarna 530015911

SCREW
(Superseded to 574780301)

$5.99

$

In Stock, only 1 left!

0

5

Husqvarna 530054741

FRONT LINK ASSY

$

$

Not available

6

Husqvarna 530016237

%COMPRESSION SPRING
(Superseded to 545137301)

$

$

Not available

7

Husqvarna 530038593

RETAINER

$3.49

$

In Stock, Qty 13

0

8

Husqvarna 530016384

SCREW

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 530056531

JOURNAL, RIGHT

$

$

Not available

10

Husqvarna 530029881

SHAFT PIVOT

$

$

Not available

11

Husqvarna 530015910

SPRING,BRK HDL 36/41

$5.99

$

In Stock, Qty 12

0

12

Husqvarna 530015913

PIN

$3.49

$

In Stock, Qty 12

0

13

Husqvarna 530052232

BRAKE BAND
(Superseded to 545137401)

$6.99

$

In Stock, only 2 left!

0

14

Husqvarna 530054802

CHAIN BRAKE ASM.

$

$

Not available

15

Husqvarna 530029878

SPRING-POSITION

$5.99

$

In Stock, Qty 6

0

16

Husqvarna 530049483

CLUTCH COVER

$

$

Not available

17

Husqvarna 530015917

BAR NUT

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 530015826

ADJUST PIN,BAR 36/41

$5.99

$

In Stock, Qty 19

0

19

Husqvarna 530038593

RETAINER

$3.49

$

In Stock, Qty 13

0

20

Husqvarna 530016110

BAR ADJUSTING SCREW

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 530053035

CHAIN BRAKE COVER

$3.49

$

In Stock, only 2 left!

0

22

Husqvarna 530015911

SCREW
(Superseded to 574780301)

$5.99

$

In Stock, only 1 left!

0

23

Husqvarna 530016154

SCREW

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 530047609

CYLINDER SHIELD ASSY

$

$

Not available

25

Husqvarna 952030150

Spark Plug (RCJ-7Y)
(Superseded to 503235111)

$3.99

$

In Stock, Qty 20+

0

26

Kit-Cylinder

Note: (incl.#34)

$

$

Not available

26

(136)

Note: REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION.

$

$

Not available

26

(141)

Note: REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION.

$

$

Not available

27

Husqvarna 530037652

HEAT INSULATOR

$

$

Not available

28

Husqvarna 530037640

MUFFLER PLATE

$

$

Not available

29

Husqvarna 530019205

GASKET

$5.99

$

In Stock, only 1 left!

0

30

Piston Kit

Note: (Includes pin and 31,32,33)

$

$

Not available

30

Husqvarna 530069944

PISTON KIT/136

$

$

Not available

30

Husqvarna 530069454

KIT-PISTON

$

$

Not available

31

Piston Ring

$

$

Not available

31

Husqvarna 530029805

PISTON RING 36

$5.99

$

In Stock, Qty 10

0

31

Husqvarna 530029982

PISTON RING HV41
(Superseded to 537400001)

$

$

Not available

32

Husqvarna 530032117

Piston Pin Bearing

$

$

Not available

33

Husqvarna 530015697

C-CLIP,PSTN PIN 36/41

$3.49

$

In Stock, only 1 left!

0

34

Cap-Crankcase

Note: REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION.

$

$

Not available

35

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$3.49

$

In Stock, Qty 19

0

Operator Manual

Note: Not Shown

$

$

Not available

Husqvarna 530163874

MANUAL, OPERATORS

Note: Not Shown

$

$

Not available

Husqvarna 530163872

MANUAL, OPERATORS

Note: Not Shown

$

$

Not available

Husqvarna 530163873

MANUAL, OPERATORS

Note: Not Shown

$

$

Not available

Husqvarna 530163871

MANUAL, OPERATORS

Note: Not Shown

$

$

Not available

Husqvarna 530163870

Japan

Note: Not Shown

$

$

Not available

Husqvarna 530031135

SCRENCH
(Superseded to 587417201)

Note: Not Shown

$9.49

$

In Stock, Qty 19

0

Husqvarna 530031136

PULLER WORM GEAR

Note: Not Shown

$

$

Not available

Husqvarna 530031112

CLUTCH TOOL

Note: Not Shown

$20.99

$

In Stock, only 3 left!

0

Husqvarna 530047941

KICKBACK WARNING DECAL

Note: Not Shown

$

$

Not available

Husqvarna 530037912

Scabbard
(Superseded to 596703701)

Note: Not Shown

$9.49

$

In Stock, only 1 left!

0

Husqvarna 530038317

LIMITER CAP (LOW-BLUE)

Note: Not Shown

$

$

Not available

Husqvarna 530038318

LIMITER CAP (HIGH-RED)

Note: Not Shown

$3.49

$

In Stock, Qty 20+

0
