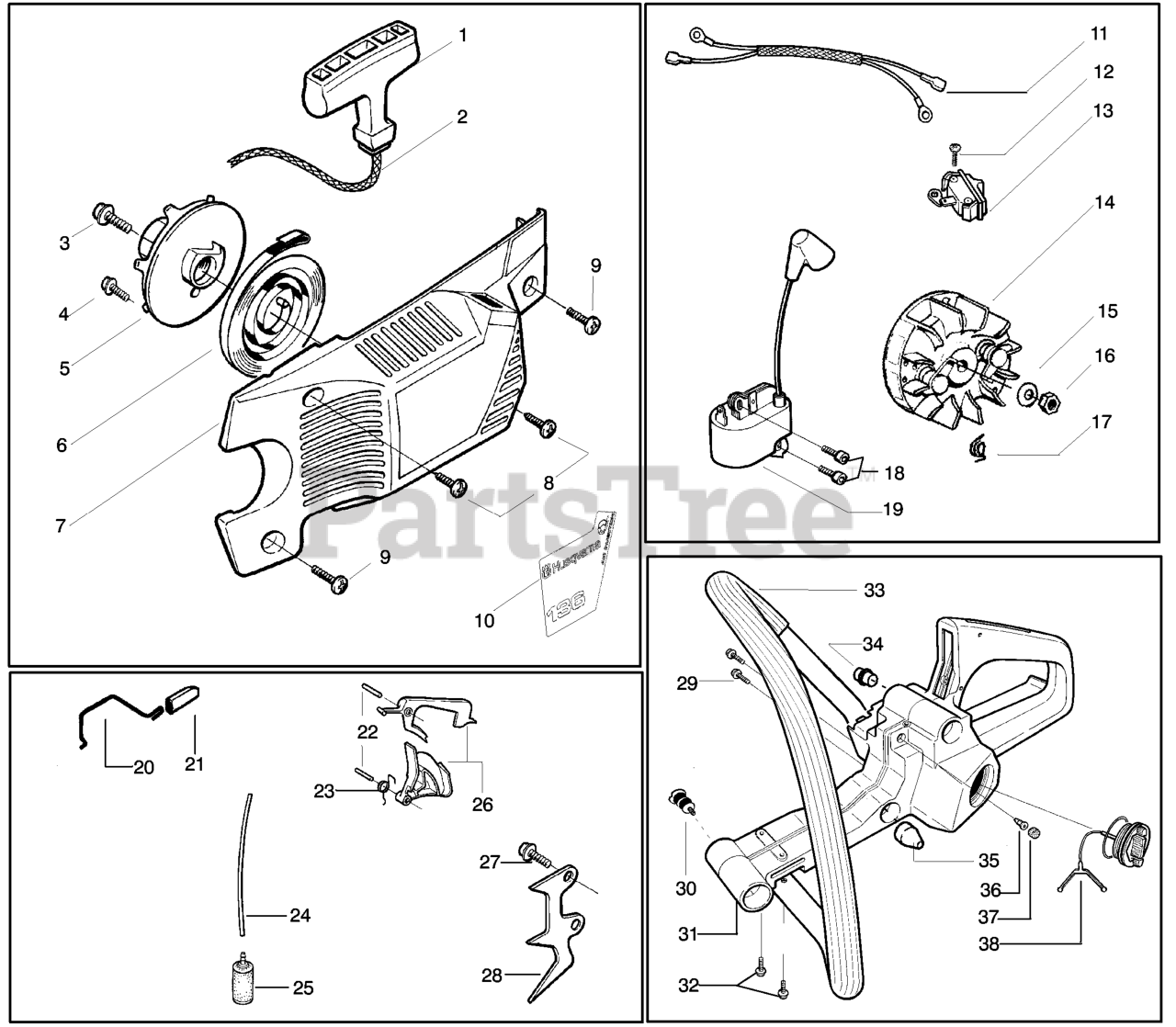

136 - Husqvarna Chainsaw (2003-06) Starter & Ignition / Flywheel & Fuel Tank / Handle & Throttle Control Parts Diagram

Chainsaw

Starter & Ignition / Flywheel & Fuel Tank / Handle & Throttle Control Parts Diagram

  • Title

1

Husqvarna 530038491

STARTER HANDLE
(Superseded to 530150318)

$5.99

$

In Stock, Qty 11

0

2

Husqvarna 530069232

KIT-ROPE

$5.99

$

In Stock, only 3 left!

0

3

Husqvarna 530015920

SCREW

$3.49

$

In Stock, Qty 6

0

4

Husqvarna 530016080

SCREW

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 530069313

PULLEY 36/41

$

$

Not available

6

Husqvarna 530015891

RETURN SPRING
(Superseded to 545008005)

$

$

Not available

7

Husqvarna 530047599

FAN HOUSING ASSEMBLY
(Superseded to 530049811)

$

$

Not available

8

Husqvarna 530015892

SCREW,STRTR CVR 36/41

$3.49

$

In Stock, only 4 left!

0

9

Husqvarna 530015893

SCREW

$4.99

$

In Stock, Qty 14

0

10

Decal -Model

$

$

Not available

10

Husqvarna 530053459

DECAL/136

$

$

Not available

10

Husqvarna 530053460

DECAL/141

$

$

Not available

11

Husqvarna 530403257

LEAD WIRE ASSY

$

$

Not available

12

Husqvarna 530015896

SCREW

$5.99

$

In Stock, only 4 left!

0

13

Husqvarna 503717901

SWITCH ON/OFF

$14.99

$

Usually ships in 3-10 days

0

14

Husqvarna 530039147

ROTOR COMPL. 36/41
(Superseded to 575635502)

Note: (incl.16)

$31.99

$

In Stock, Qty 7

0

15

Husqvarna 530015127

WASHER-FLYWHEEL

$3.49

$

In Stock, Qty 10

0

16

Husqvarna 530016071

NUT

$

$

Not available

17

Husqvarna 530023817

SPRING STR DOG

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 530015895

SCREW,IGN MOD 36/41

$

$

Not available

19

Husqvarna 530039143

%IGNITION MODULE
(Superseded to 575803501)

$22.99

$

Usually ships in 3-10 days

0

20

Husqvarna 530029869

THROTTLE SHAFT 36/41

$5.99

$

In Stock, Qty 8

0

21

Husqvarna 530029863

THROTTLE ACTUATOR 36/41

$

$

Not available

22

Husqvarna 530029860

PIN,TRIGGER 36/41

$4.99

$

In Stock, Qty 6

0

23

Husqvarna 530029861

TRIGGER SPRING 36/41

$5.99

$

Usually ships in 3-10 days

0

24

Husqvarna 530069247

HOSE. FUEL

$2.49

$

In Stock, Qty 20+

0

25

Husqvarna 530014497

FUEL PICK-UP
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

26

Husqvarna 530069587

THROTTLE TRIGGER-KIT

$

$

Not available

27

Husqvarna 530015805

SCREW-10-14 X 1/2 PLASTITE

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna 530014381

SPIKE 36/41

$9.49

$

Usually ships in 3-10 days

0

29

Husqvarna 530015940

SCREW

$3.49

$

In Stock, only 2 left!

0

30

Husqvarna 530029870

ISOLATOR

$12.99

$

In Stock, Qty 6

0

31

Husqvarna 530052446

TANK ASSY

$

$

Not available

32

Husqvarna 530015843

SCREW

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 530049876

FRONT HANDLE
(Superseded to 530059981)

$26.99

$

Usually ships in 3-10 days

0

34

Husqvarna 530052439

FRONT HANDLE ISOLATOR

$4.99

$

In Stock, only 4 left!

0

35

Husqvarna 530029984

SHOCK MOUNT(X2) 36/41

$3.49

$

In Stock, Qty 13

0

36

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 18

0

37

Husqvarna 530038264

BRONZE PLUG

$

$

Not available

38

Husqvarna 530071266

FUEL CAP KIT
(Superseded to 501765602)

$10.99

$

In Stock, Qty 7

0
