136 - Husqvarna Chainsaw (2004-01) Chain Brake Parts Diagram

Chainsaw

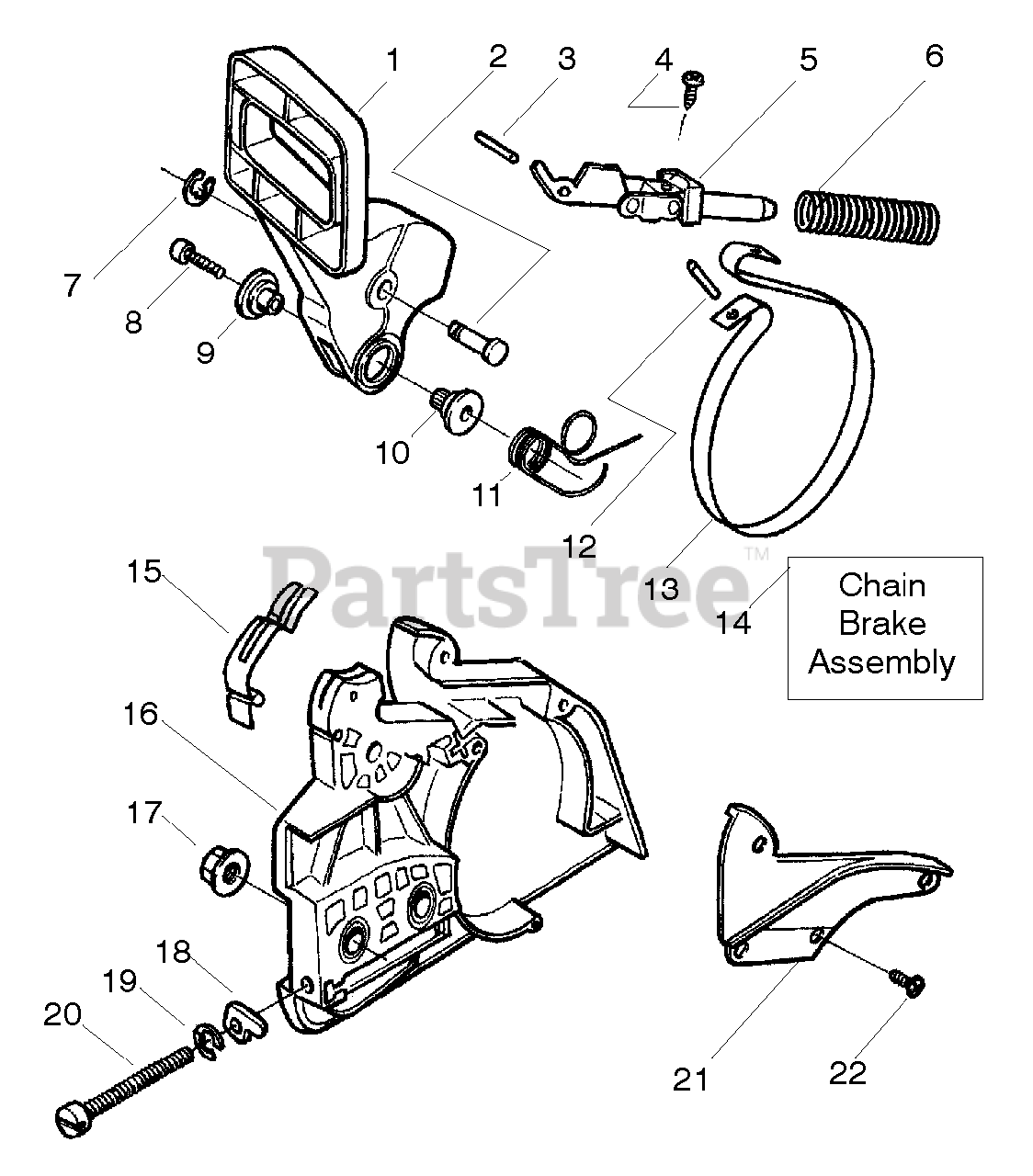

Chain Brake Parts Diagram

  • Title

1

Husqvarna 530071348

Actuating Lever

$26.99

$

In Stock, only 1 left!

0

2

Husqvarna 530029879

Pivot Pin

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 530015915

Pin-Link

$

$

Not available

4

Husqvarna 530015911

Screw
(Superseded to 574780301)

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 530054741

Front Link Ass'y.

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 530016237

Chain Brake Spring
(Superseded to 545137301)

$8.99

$

Usually ships in 3-10 days

0

7

Husqvarna 530038593

Retainer

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 530016384

Screw

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 530056531

Journal-Right

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 530029881

Journal-Left

$3.99

$

In Stock, only 1 left!

0

11

Husqvarna 530015910

Handguard Spring

$6.49

$

In Stock, Qty 6

0

12

Husqvarna 530015913

Pin-Spring

$4.99

$

In Stock, Qty 6

0

13

Husqvarna 530052232

Brake Band
(Superseded to 545137401)

$7.49

$

In Stock, Qty 15

0

14

Husqvarna 530054802

Chain Brake Assembly

$44.99

$

In Stock, Qty 7

0

15

Husqvarna 530029878

Position Spring

$6.49

$

In Stock, Qty 10

0

16

Husqvarna 530049483

Clutch Cover

$17.99

$

In Stock, Qty 6

0

17

Husqvarna 530015917

Nut-Bar

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 530015826

Bar Adjusting Pin

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 530038593

Retainer

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 530016110

Screw-Bar Adjusting

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 530053035

Chain Brake Spring Cover

$3.99

$

In Stock, only 3 left!

0

22

Husqvarna 530015911

Screw
(Superseded to 574780301)

$7.49

$

In Stock, only 1 left!

0

Husqvarna 530163874

Operator Manual U.S./Canada/Mexico

Note: Not Shown

$

$

Not available

Husqvarna 530163872

Operator Manual European I

Note: Not Shown

$

$

Not available

Husqvarna 530163873

Operator Manual European II

Note: Not Shown

$

$

Not available

Husqvarna 530163871

Operator Manual Scan.

Note: Not Shown

$

$

Not available

Husqvarna 530164305

Operator Manual Japan

Note: Not Shown

$

$

Not available

Husqvarna 530031135

Scrench
(Superseded to 587417201)

Note: Not Shown

$4.99

$

In Stock, Qty 16

0

Husqvarna 530031136

Worm Gear Puller

Note: Not Shown

$

$

Not available

Husqvarna 530031112

Clutch Ass'y. Tool

Note: Not Shown

$14.99

$

In Stock, only 4 left!

0

Husqvarna 530047941

Kickback Decal

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 530037912

Scabbard
(Superseded to 596703701)

Note: Not Shown

$11.99

$

Usually ships in 3-10 days

0
