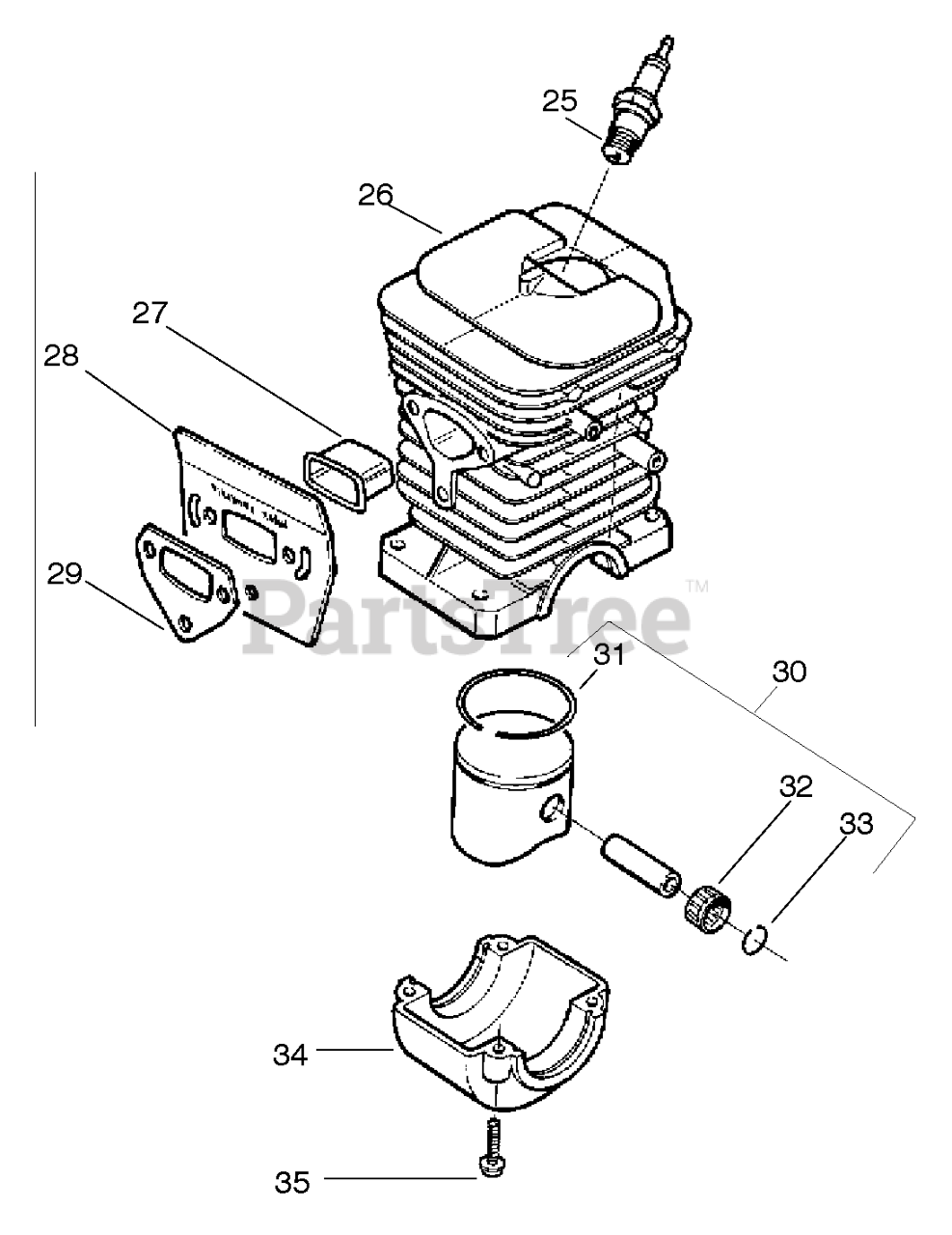

136 - Husqvarna Chainsaw (2004-01) Piston / Cylinder Parts Diagram

Chainsaw

Piston / Cylinder Parts Diagram

  • Title

25

Husqvarna 952030150

Spark Plug (RCJ-7Y)
(Superseded to 503235111)

$3.99

$

In Stock, Qty 20+

0

26

Kit-Cylinder (136)

Note: (incl.#34); REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

$

$

Not available

26

Kit-Cylinder (141)

Note: (incl.#34); REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

$

$

Not available

27

Husqvarna 530037652

HEAT INSULATOR

$

$

Not available

28

Husqvarna 530037640

MUFFLER PLATE

$

$

Not available

29

Husqvarna 530019205

GASKET

$5.99

$

In Stock, only 1 left!

0

30

Husqvarna 530069944

PISTON KIT/136

Note: (Includes pin and 31,32,33)

$

$

Not available

30

Husqvarna 530069454

KIT-PISTON

Note: (Includes pin and 31,32,33)

$

$

Not available

31

Husqvarna 530029805

PISTON RING 36

$5.99

$

In Stock, Qty 10

0

31

Husqvarna 530029982

PISTON RING HV41
(Superseded to 537400001)

$

$

Not available

32

Husqvarna 530032117

Piston Pin Bearing

$

$

Not available

33

Husqvarna 530015697

C-CLIP,PSTN PIN 36/41

$3.49

$

In Stock, only 1 left!

0

34

Cap-Crankcase

Note: REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

$

$

Not available

35

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$3.49

$

In Stock, Qty 19

0

Husqvarna 530163874

MANUAL, OPERATORS

Note: Not Shown

$

$

Not available

Husqvarna 530163872

MANUAL, OPERATORS

Note: Not Shown

$

$

Not available

Husqvarna 530163873

MANUAL, OPERATORS

Note: Not Shown

$

$

Not available

Husqvarna 530163871

MANUAL, OPERATORS

Note: Not Shown

$

$

Not available

Husqvarna 530164305

Operator Manual Japan

Note: Not Shown

$

$

Not available

Husqvarna 530031135

SCRENCH
(Superseded to 587417201)

Note: Not Shown

$9.49

$

In Stock, Qty 19

0

Husqvarna 530031136

PULLER WORM GEAR

Note: Not Shown

$

$

Not available

Husqvarna 530031112

CLUTCH TOOL

Note: Not Shown

$20.99

$

In Stock, only 3 left!

0

Husqvarna 530047941

KICKBACK WARNING DECAL

Note: Not Shown

$

$

Not available

Husqvarna 530037912

Scabbard
(Superseded to 596703701)

Note: Not Shown

$9.49

$

In Stock, only 1 left!

0
