136 - Husqvarna Chainsaw (2004-01) Piston / Cylinder Parts Diagram

Chainsaw

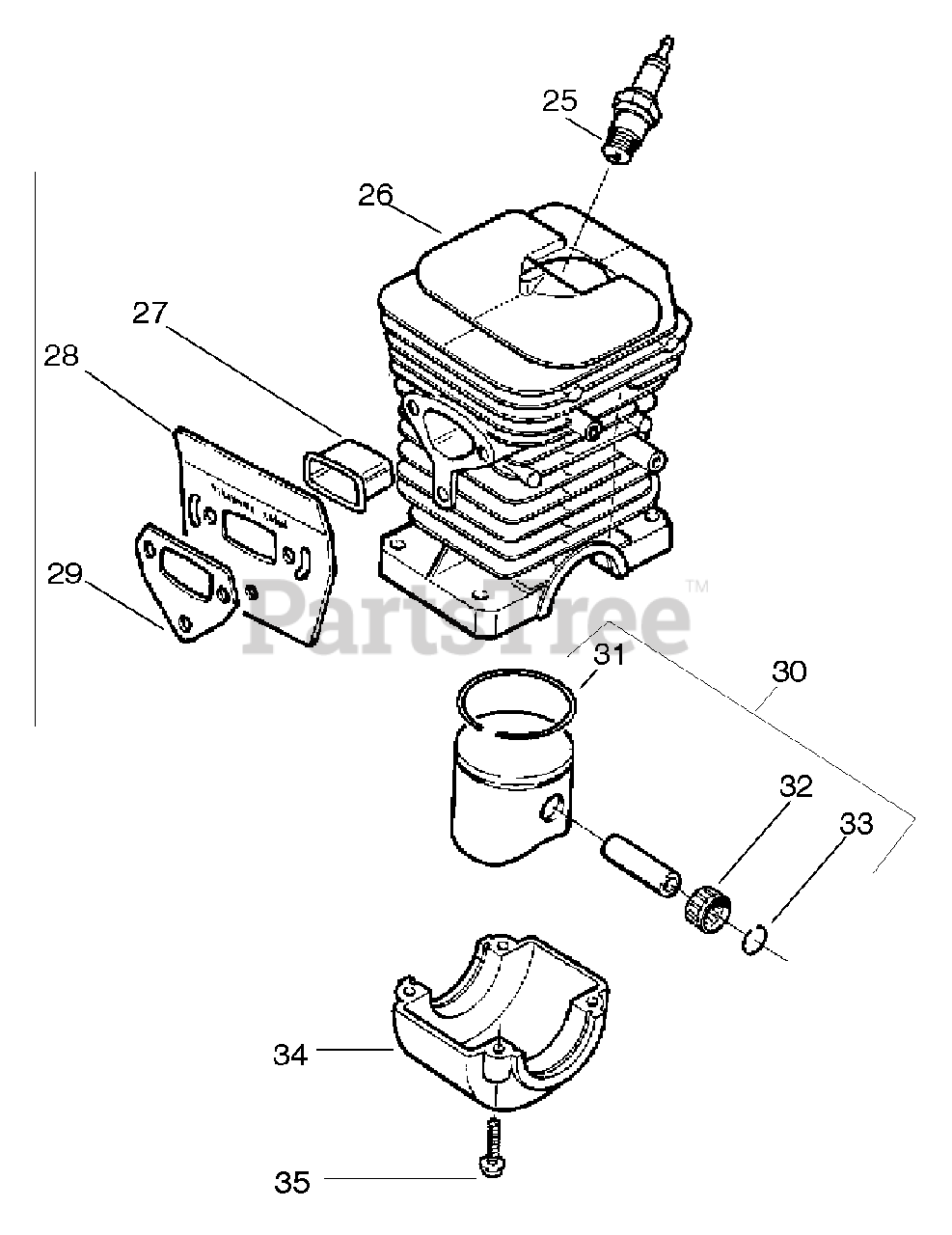

Piston / Cylinder Parts Diagram

  • Title

25

Husqvarna 952030150

Spark Plug (RCJ-7Y)
(Superseded to 503235111)

$3.49

$

In Stock, Qty 20+

0

26

Kit-Cylinder (136)

Note: (incl.#34); REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

$

$

Not available

26

Kit-Cylinder (141)

Note: (incl.#34); REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

$

$

Not available

27

Husqvarna 530037652

Heat Insulator

$

$

Not available

28

Husqvarna 530037640

Muffler-Plate

$

$

Not available

29

Husqvarna 530019205

Muffler Gasket

$6.49

$

In Stock, only 4 left!

0

30

Husqvarna 530069944

Piston Kit (136)

Note: (Includes pin and 31,32,33)

$

$

Not available

30

Husqvarna 530069454

Piston Kit (141)

Note: (Includes pin and 31,32,33)

$47.30

$

Usually ships in 3-10 days

0

31

Husqvarna 530029805

Piston Ring (136)

$6.99

$

In Stock, Qty 20+

0

31

Husqvarna 530029982

Piston Ring (141)
(Superseded to 537400001)

$29.99

$

In Stock, only 4 left!

0

32

Husqvarna 530032117

Piston Pin Bearing

$

$

Not available

33

Husqvarna 530015697

Piston Pin Retainer

$6.49

$

In Stock, Qty 6

0

34

Cap-Crankcase

Note: REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

$

$

Not available

35

Husqvarna 530015897

Screw

$6.49

$

In Stock, Qty 19

0

Husqvarna 530163874

Operator Manual U.S./Canada/Mexico

Note: Not Shown

$

$

Not available

Husqvarna 530163872

Operator Manual European I

Note: Not Shown

$

$

Not available

Husqvarna 530163873

Operator Manual European II

Note: Not Shown

$

$

Not available

Husqvarna 530163871

Operator Manual Scan.

Note: Not Shown

$

$

Not available

Husqvarna 530164305

Operator Manual Japan

Note: Not Shown

$

$

Not available

Husqvarna 530031135

Scrench
(Superseded to 587417201)

Note: Not Shown

$4.99

$

In Stock, Qty 16

0

Husqvarna 530031136

Worm Gear Puller

Note: Not Shown

$

$

Not available

Husqvarna 530031112

Clutch Ass'y. Tool

Note: Not Shown

$14.99

$

In Stock, only 4 left!

0

Husqvarna 530047941

Kickback Decal

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 530037912

Scabbard
(Superseded to 596703701)

Note: Not Shown

$11.99

$

Usually ships in 3-10 days

0
