136 - Husqvarna Chainsaw (SN: 20013500001 - 20030100000) CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

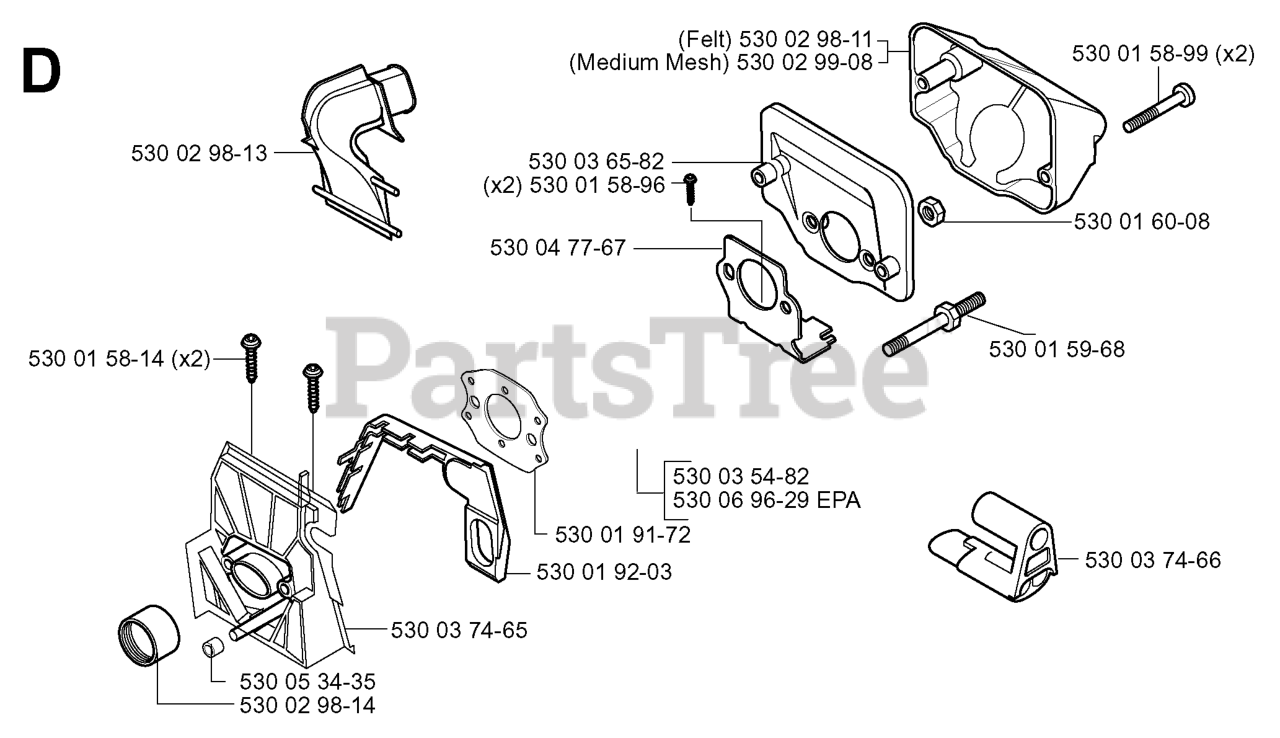

CARBURETOR & AIR FILTER Parts Diagram

  • Title

530 01 59-68

Husqvarna 530015968

STUD-CARBURETOR

$

$

Not available

530 03 74-65

Husqvarna 530037465

CARB ADAPTOR

$

$

Not available

530 01 58-96

Husqvarna 530015896

SCREW

$6.49

$

In Stock, Qty 13

0

530 04 77-67

Husqvarna 530047767

PLATE

$

$

Not available

530 01 91-72

Husqvarna 530019172

GSKT,CARB 36/41

$6.49

$

In Stock, Qty 20+

0

530 05 34-35

Husqvarna 530053435

IMPULSE PIPE

$4.99

$

In Stock, Qty 20+

0

530 01 92-03

Husqvarna 530019203

TURBO CLEAN SEAL

$4.99

$

In Stock, only 2 left!

0

530 03 74-66

Husqvarna 530037466

GROMMET
(Superseded to 530029815)

$4.99

$

In Stock, Qty 5

0

530 06 96-29

Husqvarna 530069629

CARBURETOR/EPA
(Superseded to 545013503)

Note: EPA

$50.99

$

In Stock, Qty 12

0

530 02 98-14

Husqvarna 530029814

INTAKE PIPE

$13.99

$

In Stock, Qty 18

0

530 03 54-82

Husqvarna 530035482

CARBURETOR
(Superseded to 530071987)

$44.99

$

In Stock, Qty 14

0

530 01 58-99

Husqvarna 530015899

SCREW

$6.49

$

In Stock, Qty 15

0

530 02 98-13

Husqvarna 530029813

INTAKE HORN

$

$

Not available

530 01 58-14

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

530 03 65-82

Husqvarna 530036582

AIR FILTER (BOTTOM)

$4.99

$

Usually ships in 3-10 days

0

530 02 99-08

Husqvarna 530029908

AIR FLTR,MED MESH 36/41

Note: MEDIUM MESH

$

$

Not available

530 02 98-11

Husqvarna 530029811

AIR FILTER

Note: FELT

$

$

Not available

530 01 60-08

Husqvarna 530016008

NUT 5M

$2.23

$

In Stock, only 3 left!

0
