136 - Husqvarna Chainsaw (SN: 20030100001 - 20040100000) CRANKCASE Parts Diagram

Chainsaw

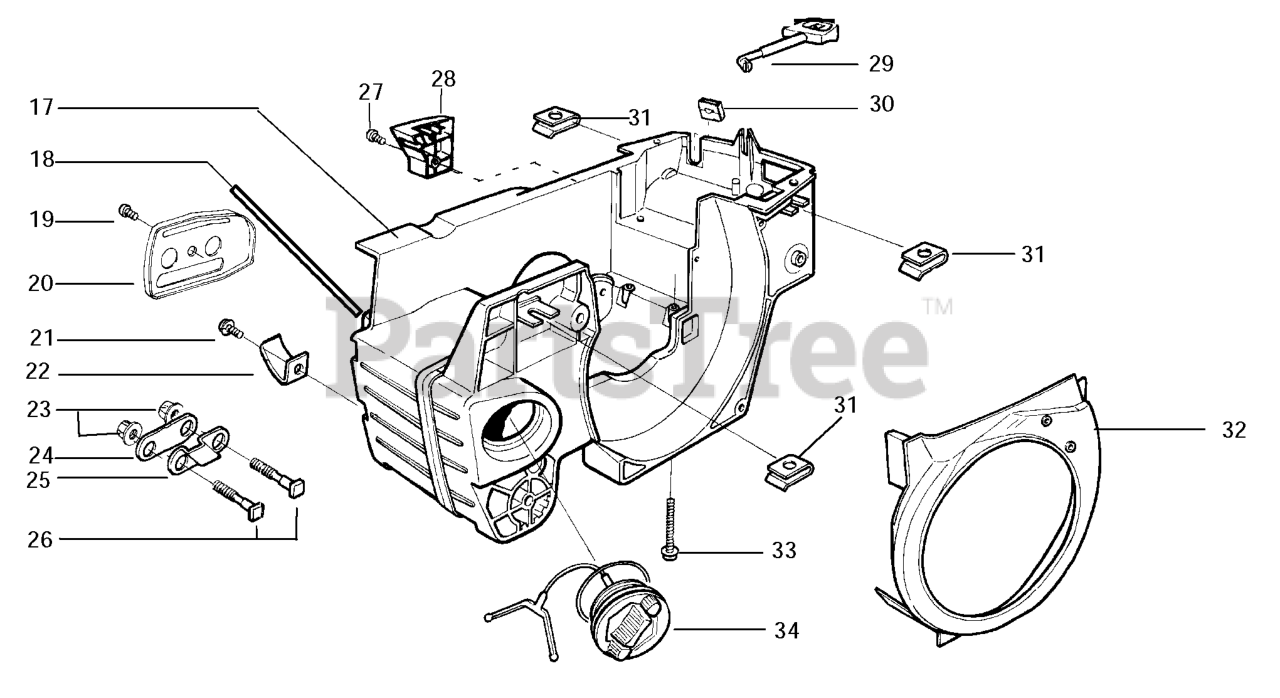

CRANKCASE Parts Diagram

  • Title

30

Husqvarna 530029830

CHOKE GUIDE 36/41

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 530015922

CLIP

$6.49

$

In Stock, Qty 5

0

18

Husqvarna 530052440

TUBE
(Superseded to 545033501)

$6.49

$

In Stock, Qty 7

0

33

Husqvarna 530016037

SCREW M5-0.8X35M TAP

$

$

Not available

22

Husqvarna 530029850

CHAIN CATCHER 36/41

$6.49

$

In Stock, Qty 20+

0

21

Husqvarna 530015878

SCREW

$2.49

$

Usually ships in 3-10 days

0

32

Husqvarna 530029800

AIR CONDUCTOR 36/41

$

$

Not available

23

Husqvarna 530015917

BAR NUT

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 530015896

SCREW

$6.49

$

In Stock, Qty 13

0

25

Husqvarna 530036043

PLATE,BAR MOUNT

$5.99

$

In Stock, only 4 left!

0

20

Husqvarna 530047855

BAR PLATE

$

$

Not available

34

Husqvarna 501765602

OIL CAP

$10.99

$

In Stock, Qty 18

0

28

Husqvarna 530052428

LIMITER COVER

$

$

Not available

27

Husqvarna 530015893

SCREW

$6.49

$

In Stock, Qty 20+

0

29

Husqvarna 530029831

CHOKE 36/41

$

$

Not available

24

Husqvarna 530019228

OIL TANK GASKET

$5.99

$

In Stock, only 3 left!

0

17

Husqvarna 530069942

CRANKCASE ASSY
(Superseded to 530069887)

$

$

Not available

26

Husqvarna 530015877

BAR BOLT 36/41

$7.49

$

In Stock, only 1 left!

0
