136 LE - Husqvarna Chainsaw (2004-03) Air Filter/Carburetor Parts Diagram

Chainsaw

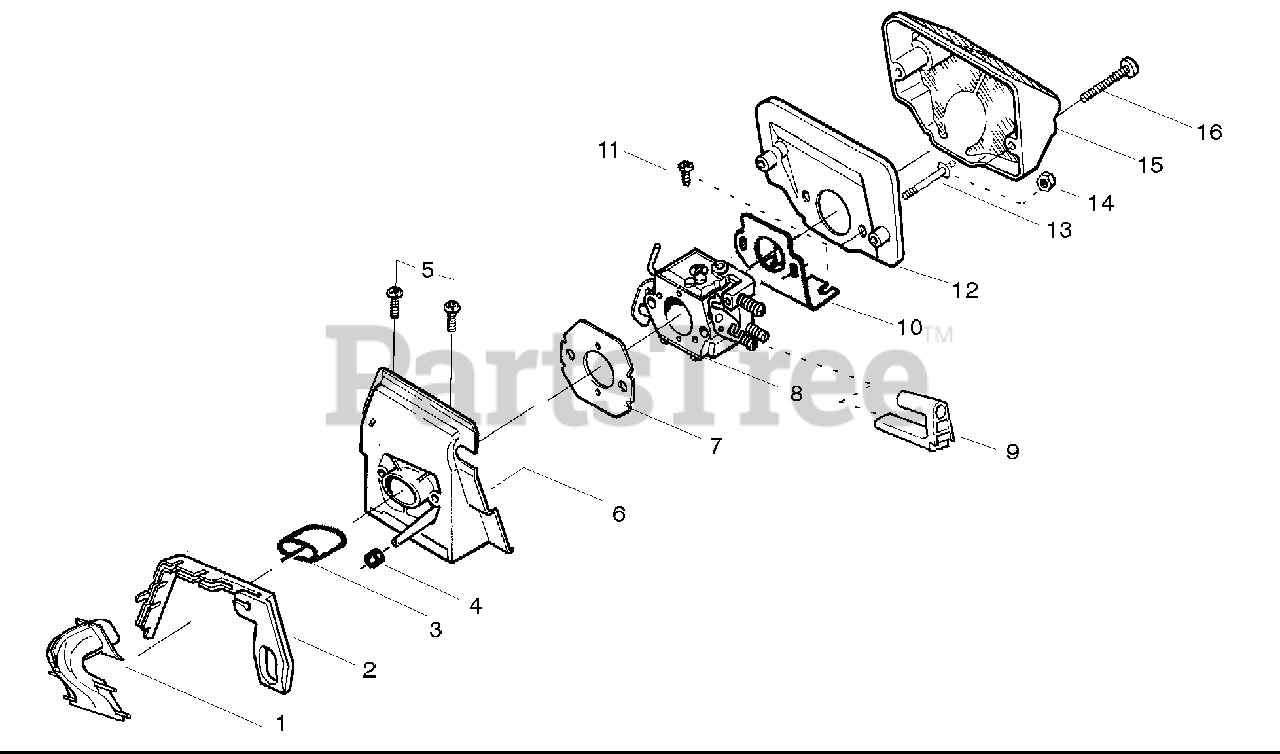

Air Filter/Carburetor Parts Diagram

  • Title

1

Husqvarna 530029813

Assy-Turbo Air Cleaner

$

$

Not available

2

Husqvarna 530019203

Seal - Turbo Clean

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 530029814

Sleeve-Intake

$13.99

$

In Stock, Qty 18

0

4

Husqvarna 530053435

Seal-Impulse

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

6

Husqvarna 530037465

Adapter - Carb.

$

$

Not available

7

Husqvarna 530019172

Gasket-Carburetor

$6.49

$

In Stock, Qty 20+

0

8

Carburetor

$

$

Not available

8

Husqvarna 530071510

WT-540
(Superseded to 530071987)

$44.99

$

In Stock, Qty 14

0

8

Husqvarna 530071692

WT-660
(Superseded to 530071987)

$44.99

$

In Stock, Qty 14

0

9

Husqvarna 530035587

Grommet-Final

$4.99

$

In Stock, Qty 8

0

10

Husqvarna 530047767

Plate - Support

$

$

Not available

11

Husqvarna 530015896

Screw

$6.49

$

In Stock, Qty 13

0

12

Husqvarna 530036582

Air Filter - Bottom

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 530015968

Stud - Carb.

$

$

Not available

14

Husqvarna 530016008

Nut

$2.23

$

In Stock, only 3 left!

0

15

Husqvarna 530029811

Air-Filter - Top

$

$

Not available

16

Husqvarna 530015899

Screw

$6.49

$

In Stock, Qty 15

0
