136 LE - Husqvarna Chainsaw, CARB (2001-06) Air Filter / Carburetor Parts Diagram

Chainsaw, CARB

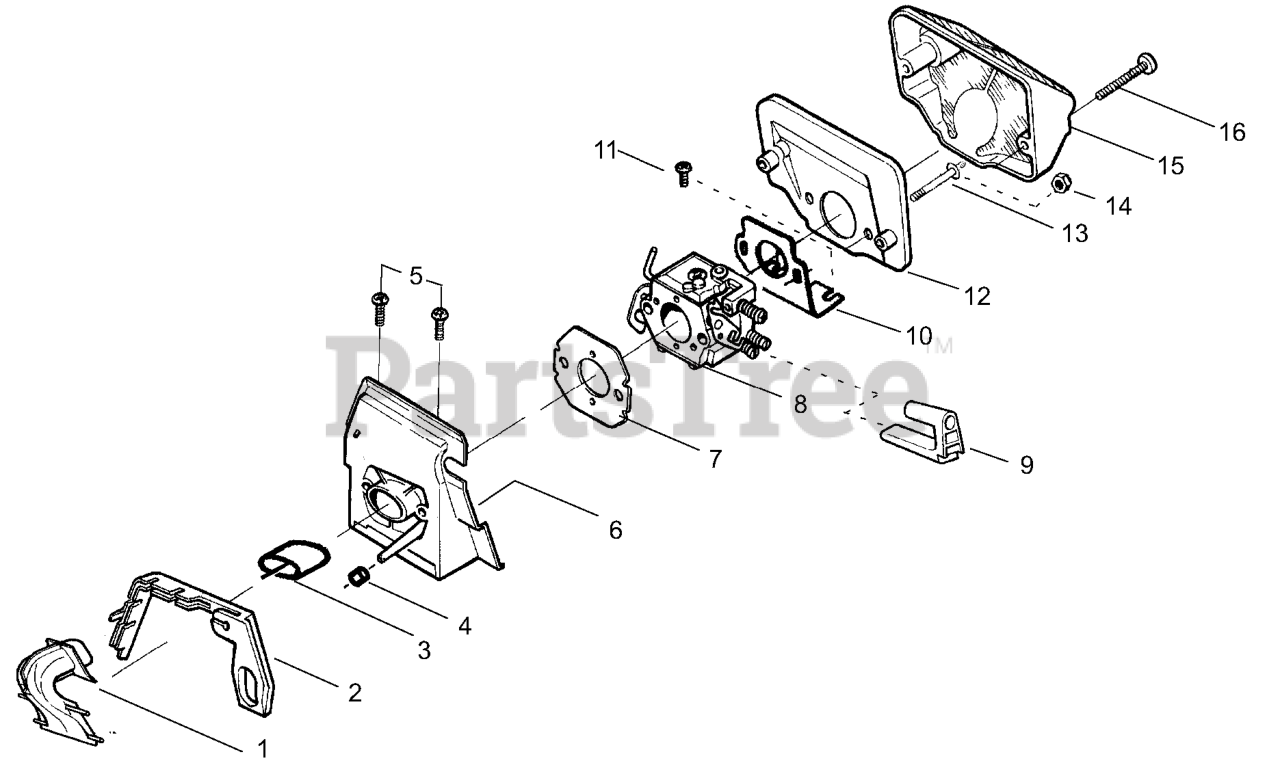

Air Filter / Carburetor Parts Diagram

  • Title

1

Husqvarna 530029813

INTAKE HORN

$

$

Not available

2

Husqvarna 530019203

TURBO CLEAN SEAL

$

$

Not available

3

Husqvarna 530029814

INTAKE PIPE

$13.99

$

In Stock, only 2 left!

0

4

Husqvarna 530053435

IMPULSE PIPE

$

$

Not available

5

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 6

0

6

Husqvarna 530037465

CARB ADAPTOR

$

$

Not available

7

Husqvarna 530019172

GSKT,CARB 36/41

$5.99

$

In Stock, Qty 20+

0

8

Husqvarna 530071510

CARBURETOR
(Superseded to 530071987)

$113.99

$

Usually ships in 3-10 days

0

9

Husqvarna 530037466

GROMMET
(Superseded to 530029815)

$7.99

$

In Stock, only 1 left!

0

10

Husqvarna 530047767

PLATE

$

$

Not available

11

Husqvarna 530015896

SCREW

$5.99

$

In Stock, only 4 left!

0

12

Husqvarna 530036582

AIR FILTER (BOTTOM)

$

$

Not available

13

Husqvarna 530015968

STUD-CARBURETOR

$

$

Not available

14

Husqvarna 530016008

NUT 5M

$

$

Not available

15

Husqvarna 530029811

AIR FILTER

$

$

Not available

16

Husqvarna 530015899

SCREW

$5.99

$

In Stock, only 3 left!

0
