136 Li HD 45 (967193712) - Husqvarna Hedge Trimmer (2015-08) HOUSING Parts Diagram

Hedge Trimmer

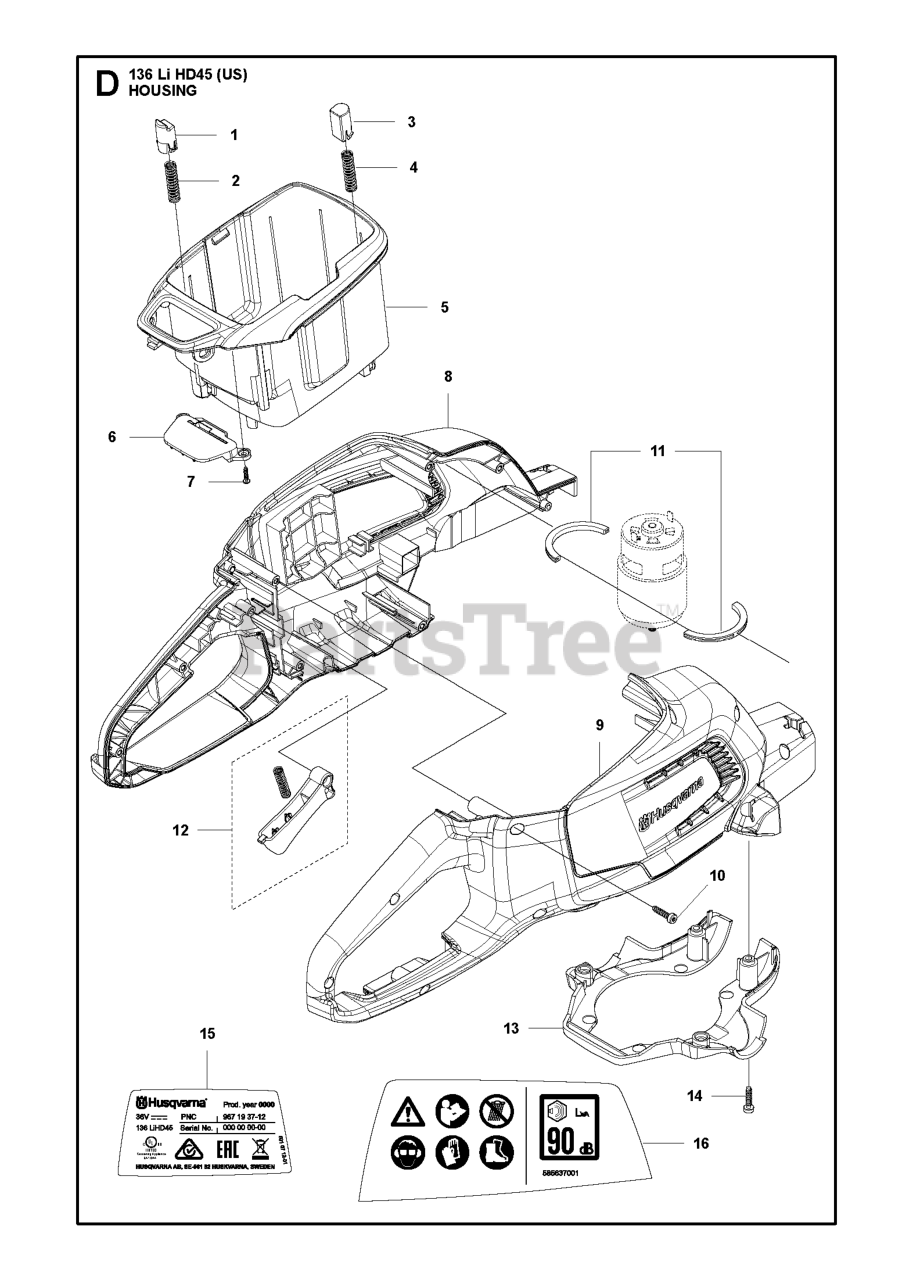

HOUSING Parts Diagram

  • Title

1

Husqvarna 577996601

PUSH BUTTON

Note: rear

$5.49

$

Usually ships in 3-10 days

0

2

Husqvarna 585636201

SPRING PUSH BUTTON

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 585636001

PUSH BUTTON FRONT

Note: front

$2.49

$

Usually ships in 3-10 days

0

4

Husqvarna 585636601

SPRING PUSH BUTTON

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 585634901

BATTERY BOX

$

$

Not available

6

Husqvarna 585635001

BRACKET KEYPAD

$

$

Not available

7

Husqvarna 585818901

SCREW ST3X8

Note: ST3x8

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 585633101

HOUSING RIGHT

Note: Right

$35.99

$

Usually ships in 3-10 days

0

9

Husqvarna 585633401

Note: Left

$

$

Currently unavailable

10

Husqvarna 585819002

SCREW ST4X16

Note: ST4x16

$2.49

$

Usually ships in 3-10 days

0

11

Husqvarna 585636701

$

$

Currently unavailable

12

Husqvarna 588760501

TRIGGER

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 585633901

COVER BOTTOM

Note: Bottom

$14.99

$

Usually ships in 3-10 days

0

14

Husqvarna 585819002

SCREW ST4X16

Note: ST4x16

$2.49

$

Usually ships in 3-10 days

0

15

Husqvarna 501071201

Note: Rating

$

$

Currently unavailable

16

Husqvarna 585637001

Note: Warning

$

$

Currently unavailable
