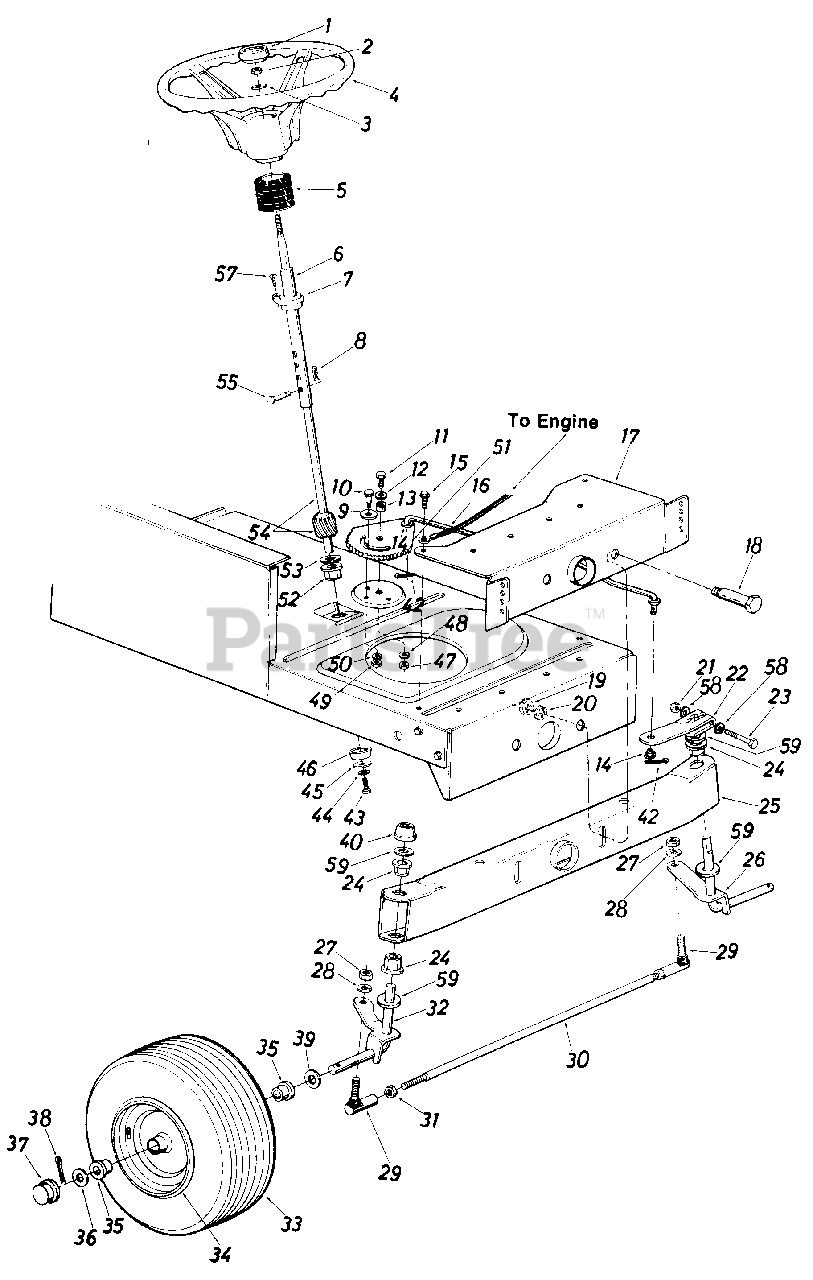

13618S - MTD Lawn Tractor (1985) Lawn Parts Diagram

Lawn Tractor

Lawn Parts Diagram

  • Title

1

MTD 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

$9.49

$

Usually ships in 3-6 days

0

2

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0242

Belleville Wash. .345" I.D.

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-0356

Steering Wheel

$

$

Not available

5

MTD 731-0559

Steering Bellow 4.5"
(Superseded to 731-0559B)

$

$

Not available

6

MTD 14775

Steering Column Ass'y.

$

$

Not available

7

MTD 741-0356

Flange Bearing .890 I.D. x 1.36 O.D.
(Superseded to 741-0356A)

$7.49

$

Usually ships in 3-6 days

0

8

MTD 714-0147

Internal Cotter Pin 1/4" Dia.

$4.99

$

In Stock, Qty 13

0

9

MTD 736-0319

Fl-Wash. .438" I.D. x 1.37" O.D.
(Superseded to 936-0319)

$11.99

$

Usually ships in 3-6 days

0

10

MTD 738-0141

Shoulder Bolt .437" Dia. x .35 Lg. 5/16-18 Thd.
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 8

0

11

MTD 710-0152

Hex Bolt 3/8-24 x 1.0" Lg. Grade 5
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 9

0

12

MTD 736-0206

Fl-Wash. .38" I.D. x 1.0" O.D.
(Superseded to 936-0206)

$4.49

$

In Stock, Qty 5

0

13

MTD 750-0535

Spacer.380" I.D. x .625" O.D. x .227
(Superseded to 950-0535)

$4.49

$

In Stock, only 4 left!

0

14

MTD 731-0658

Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0726

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

16

MTD 711-0691

Steering Drag Link
(Superseded to 753-0339)

$

$

Not available

17

MTD 14619

Front Pivot Brk't.

$

$

Currently unavailable

18

MTD 738-0527

Shoulder Bolt .498" Dia. x 2.04 Lg. 3/8-16 Thd.

$8.49

$

Usually ships in 3-6 days

0

19

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

20

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

21

MTD 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, Qty 7

0

22

MTD 14611

Steering Arm Front Axle

$

$

Not available

23

MTD 710-0772

Hex Bolt 5/16-24 x 2.00" Lg. Grade 5

$4.49

$

Usually ships in 3-6 days

0

24

MTD 741-0225

Hex Flg. Brg. .634 I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

25

MTD 14608

Pivot Bar Ass'y.
(Superseded to 753-0642-0637)

Variations

MTD 14608-0637

Pivot Bar Kit with Flange Bearing - POWDER BLACK (0637)

$127.99

$

In Stock, only 4 left!

0

$127.99

$

In Stock, only 4 left!

0

26

MTD 14649

Front Axle Ass'y. L.H .
(Superseded to 94649)

$

$

Not available

27

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

29

MTD 723-0156

Bal I Joint 3/8-24 Thd.
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

30

MTD 711-0613

Tie Rod

$

$

Not available

31

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

32

MTD 14650

Front Axle Ass'y. R.H.
(Superseded to 14650A)

$142.99

$

Usually ships in 3-6 days

0

33

MTD 734-0998

Wheel Ass'y. Comp.
(Superseded to 634-0056B-0911)

$249.99

$

In Stock, only 3 left!

0

MTD 734-0498

Tire Only

$

$

Currently unavailable

34

MTD 734-0997

Front Wheel Rim Only
(Superseded to 753-0838-0662)

$

$

Not available

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

MTD 734-0146

Grease Fitting

$

$

Currently unavailable

35

MTD 741-0313

Bearing
(Superseded to 741-0487C)

$7.49

$

In Stock, Qty 20+

0

36

MTD 736-0285

Fl-Wash. .635 I.D. x 1.59" O.D.

$4.49

$

In Stock, Qty 20+

0

37

MTD 731-0484

Front Wheel Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

38

MTD 714-0470

Cotter Pin 1/8n Dia. x 1.25" Lg.*

$4.49

$

In Stock, Qty 20+

0

39

MTD 736-0156

Fl-Wash. .635" I.D. x 1.20" O.D.

$4.49

$

In Stock, Qty 12

0

40

MTD 726-0214

Push Cap 5/8" Dia. Rod

$10.99

$

In Stock, Qty 20+

0

42

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.0"

$3.99

$

Usually ships in 3-6 days

0

43

MTD 710-0538

Hex L-Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 9

0

44

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

45

MTD 736-0231

Fl-Wash. .344n l.D. x 1.25" O.D.

$4.99

$

In Stock, only 4 left!

0

46

MTD 750-0532

Spacer (Plastic)
(Superseded to 950-0532)

$

$

Not available

47

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

48

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

49

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

50

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

MTD 717-0468

Steering Gear Segment
(Superseded to 917-0468)

$

$

Not available

52

MTD 741-0225

Hex Flg. Brg. .634 I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

53

MTD 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0

54

MTD 738-0522

Steering Shaft Lower
(Superseded to 738-0522A)

$75.99

$

In Stock, Qty 6

0

55

MTD 711-0684

Clevis Pin 1/4" Dia. x 1.00" Lg.

$

$

Not available

57

MTD 710-0837

Oval Hd. Cr. Sunk Scr. #10 x 5/8" Lg.

$4.49

$

In Stock, Qty 9

0

58

MTD 736-0242

Bell-Wash.

$4.49

$

In Stock, Qty 20+

0

59

MTD 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0
