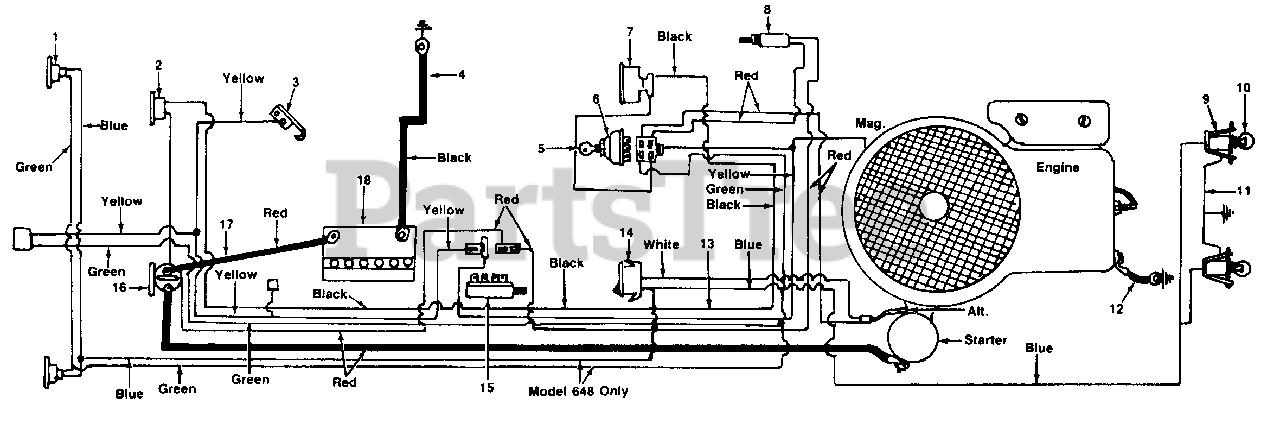

13649C - MTD Lawn Tractor (1986) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

MTD 725-1128

Taillight

Note: (648 Only)

$

$

Not available

2

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$35.99

$

In Stock, only 1 left!

0

3

MTD 725-0759

Spring Switch
(Superseded to 753-0579)

$

$

Not available

4

MTD 725-0975

Ground Wire 9.0" Lg.

$

$

Not available

5

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 12

0

6

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 14

0

7

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 1 left!

0

8

MTD 725-0577

Safety Switch

$

$

Not available

9

MTD 725-1058

Socket Headlight
(Superseded to 925-1058A)

$10.99

$

In Stock, Qty 7

0

10

MTD 725-0963

Lamp Headlight
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

11

MTD 725-0916

Grounding Wire
(Superseded to 725-0916A)

$

$

Not available

12

MTD 725-0976

Ground Wire 7.25" Lg.
(Superseded to 725-0976A)

$

$

Not available

13

MTD 725-1188

Wire Harness

Note: (648)

$

$

Not available

MTD 725-1178

Wire Harness

Note: (649)

$

$

Currently unavailable

14

MTD 725-1130

Light Switch

$

$

Not available

15

MTD 725-0803

Safety Switch
(Superseded to 725-0803B)

$31.99

$

In Stock, Qty 7

0

16

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$32.99

$

In Stock, only 4 left!

0

17

MTD 725-0926

Elec. Wire w/Bolt

$

$

Not available

18

MTD 725-0514

12-V Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0
