136A694F401 - Yard-Man Lawn Tractor (1996) Mowing Deck Assembly Parts Diagram

Lawn Tractor

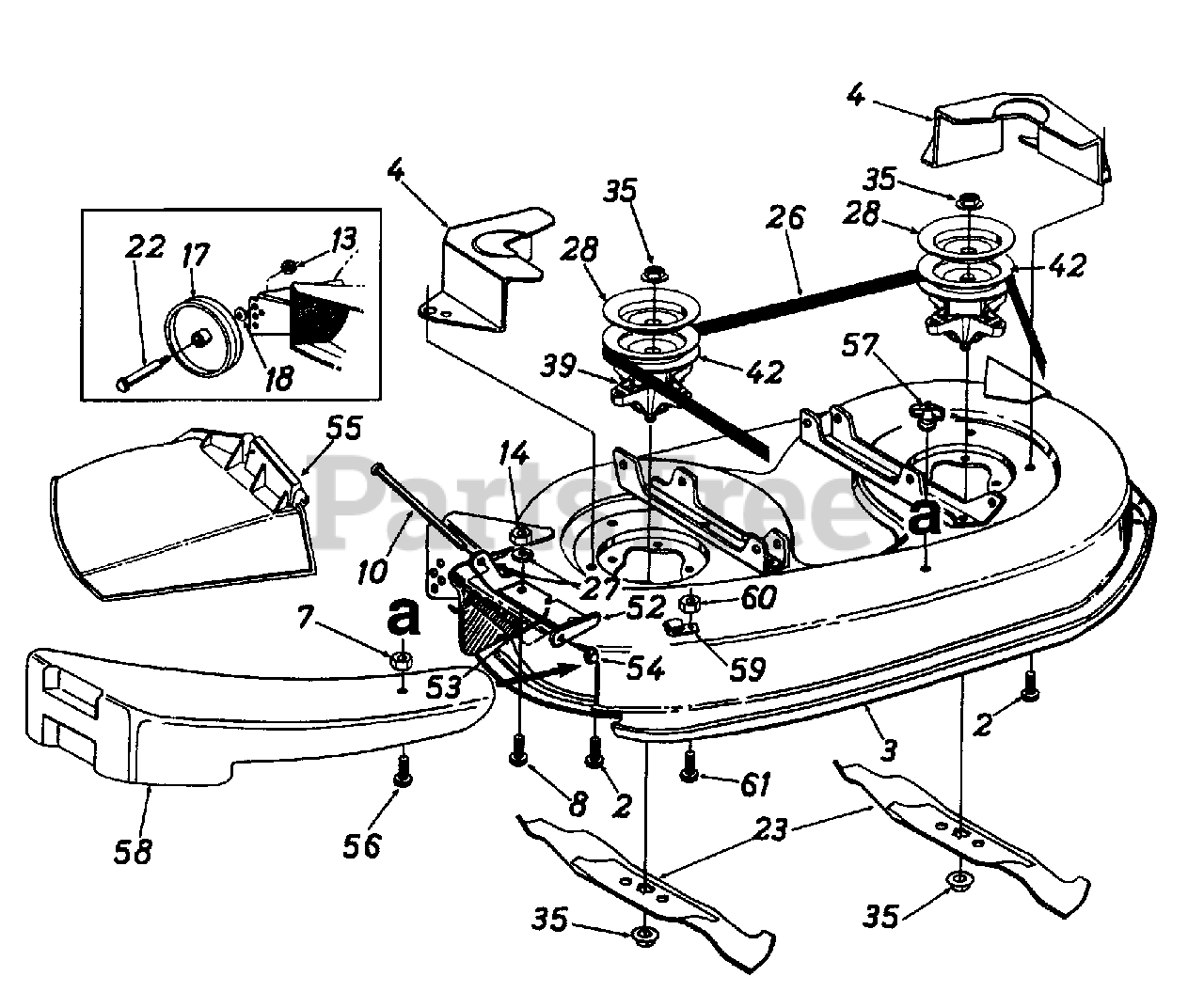

Mowing Deck Assembly Parts Diagram

  • Title

2

MTD 710-1260

Hex Wash. Hd. TT-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

3

MTD 683-0129

38" Deck Ass'y.
(Superseded to 983-0129A)

Note: New Part

Variations

683-0129-0483

MTD 683-0129-0483

DECK ASM-38" - CHARCOAL GRAY (0483)

$

$

Not available

683-0129-0629

MTD 683-0129-0629

DECK ASM-38" - SILVER FLAKE (0629)

$

$

Not available

683-0129-0637

MTD 683-0129-0637

DECK ASM-38" - POWDER BLACK (0637)

$

$

Not available

683-0129-0638

MTD 683-0129-0638

DECK ASM-38" - MTD/TROY-BILT RED (0638)

$

$

Not available

683-0129-0648

MTD 683-0129-0648

USE 983-0129A-0637 DECK ASM-3 - TECH GRAY (0648)

$

$

Not available

683-0129-0665

MTD 683-0129-0665

DECK ASM-38" - YARDMAN GREEN (0665)

$

$

Not available

$628.99

$

Usually ships in 3-6 days

0

MTD 813-06459

38" Deck Ass'y. Comp.
(Superseded to 753-0694)

Note: New Part; (For Service Only)

Variations

813-06459-0637

MTD 813-06459-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

813-06459-0638

MTD 813-06459-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

813-06459-0648

MTD 813-06459-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

813-06459-0665

MTD 813-06459-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

813-06459-0691

MTD 813-06459-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

$

$

4

MTD 783-0343

Belt Guard Deck
(Superseded to 783-0343A)

Note: New Part

Variations

783-0343-0483

MTD 783-0343-0483

Deck Belt Cover, 38" Black - CHARCOAL GRAY (0483)

$

$

Not available

783-0343-0498

MTD 783-0343-0498

Deck Belt Cover, 38" Black - OLD CUB YELLOW (0498)

$

$

Not available

783-0343-0629

MTD 783-0343-0629

Deck Belt Cover, 38" Black - SILVER FLAKE (0629)

$

$

Not available

783-0343-0637

MTD 783-0343-0637

Deck Belt Cover, 38" Black - POWDER BLACK (0637)

$

$

Not available

783-0343-0638

MTD 783-0343-0638

Deck Belt Cover, 38" Black - MTD/TROY-BILT RED (0638)

$

$

Not available

783-0343-0648

MTD 783-0343-0648

Deck Belt Cover, 38" Black - TECH GRAY (0648)

$

$

Not available

783-0343-0662

MTD 783-0343-0662

Deck Belt Cover, 38" Black - OYSTER GRAY (0662)

$

$

Not available

783-0343-0665

MTD 783-0343-0665

Deck Belt Cover, 38" Black - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

7

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.99

$

In Stock, only 4 left!

0

8

MTD 710-0258

Hex Bolt 1/4-20 x .62"
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

10

MTD 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, Qty 12

0

13

MTD 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

14

MTD 712-3006

Hex Nut 1/4-20 Thd. (Gr. 5)

$4.99

$

In Stock, Qty 11

0

17

MTD 734-0973

Deck Wheel - 5"
(Superseded to 734-06265)

$13.99

$

Usually ships in 3-6 days

0

18

MTD 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.99

$

In Stock, Qty 20+

0

22

MTD 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)

$9.99

$

In Stock, Qty 20+

0

23

MTD 742-0610

3 in 1 Blade
(Superseded to 942-0610A)

Note: New Part

$28.99

$

In Stock, Qty 20+

0

26

MTD 754-0329A

V-Belt
(Superseded to 954-0329A)

$55.99

$

In Stock, only 3 left!

0

27

MTD 736-0270

Bell-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

28

MTD 783-0342

Brake Disc
(Superseded to 783-0342A)

$

$

Not available

?33

MTD 710-0157

Hex Bolt 5/16-24 x 75" Lg.

$4.49

$

In Stock, only 3 left!

0

35

MTD 712-0417A

Hex Flange Nut 5/8-18 Thd.

Note: Deck pulleys and blade nuts must be torqued to 100 ft. lbs. if removed or replaced.

$7.49

$

In Stock, Qty 20+

0

?37

MTD 736-0158

L-Wash. 5/8" I.D.

$4.99

$

In Stock, Qty 5

0

39

MTD 618-0138

Blade Spindle Ass'y. Comp.
(Superseded to 918-0138C)

Note: New Part; (Incl. Ref. 28, 35, 42)

$148.99

$

In Stock, only 2 left!

0

42

MTD 756-0969

5" Dia. Pulley

$38.99

$

Usually ships in 3-6 days

0

52

MTD 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$24.99

$

In Stock, only 4 left!

0

53

MTD 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

54

MTD 726-0106

Push Nut

$4.49

$

Usually ships in 3-6 days

0

55

MTD 731-1032

Chute Ass'y Comp.
(Superseded to 631-05229)

Note: (Incl. Ref. 10,52,53,54,55)

$86.99

$

In Stock, Qty 20+

0

56

MTD 710-0597

Hex Bolt 1/4-20 x 1" Lg.

$4.49

$

In Stock, Qty 11

0

57

MTD 712-3087

Wing Nut 1/4-20 Thd.

$4.49

$

Usually ships in 3-6 days

0

58

MTD 731-1643

Mulching Plug
(Superseded to OEM-190-116)

Note: New Part

$107.99

$

In Stock, only 1 left!

0

59

MTD 16606

Retainer Hook Brkt
(Superseded to 96606)

$7.99

$

In Stock, only 2 left!

0

60

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.99

$

In Stock, Qty 15

0

61

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0
